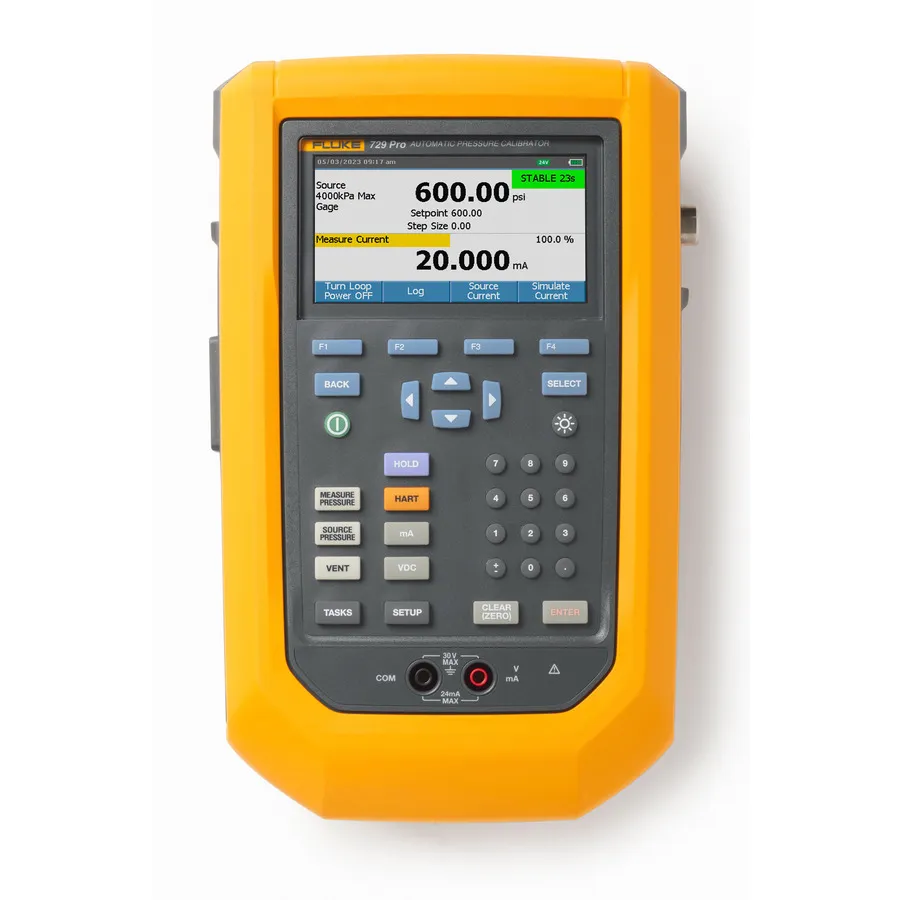

Fluke 729PRO 7M Automatic Pressure Calibrator
Request a quote
Fluke 729PRO 7M portable automatic pressure calibrator for test and calibration of pressure instruments to 1,000 psi with automatic stabilization.
Product details
| Model | 729PRO 7M |
| Manufacturer | Fluke |
| Category | Digital Pressure Gauges |
| Availability | Made to order |
Description
Overview
The Fluke 729PRO 7M is a portable automatic pressure calibrator designed for field and laboratory pressure calibration. It automatically sources and measures pressure up to 1,000 psi (7 MPa) to test and calibrate pressure sensors, transmitters, and other pressure instruments. The unit features an internal electric pump with fast pressurization to full scale and automatic fine-pressure adjustment for stable, accurate measurements.
Key Features
- Automatic pressure generation and regulation to 1,000 psi (7 MPa)
- Fast pressurization to target setpoints with automatic fine-pressure adjustment
- Automatic pressure stabilization and holding at desired values
- Replaceable pressure control modules for extended measurement range
- Support for up to six 750P Series pressure modules
- Built-in test templates for easy one-button documented calibration
- HART communication for transmitter adjustment and configuration
- Pressure leakage testing capability
- Temperature measurement with 720RTD probe support
- Bright dual-three-channel color graphic display
- Powerful Li-ion battery with extended runtime
- Rugged, portable design with 3-year warranty
Applications
- Calibration of pressure sensors and transmitters
- HART transmitter setup and configuration
- Multi-point pressure testing and documentation
- Field service and maintenance operations
Specifications
| Series | 729 Series |
