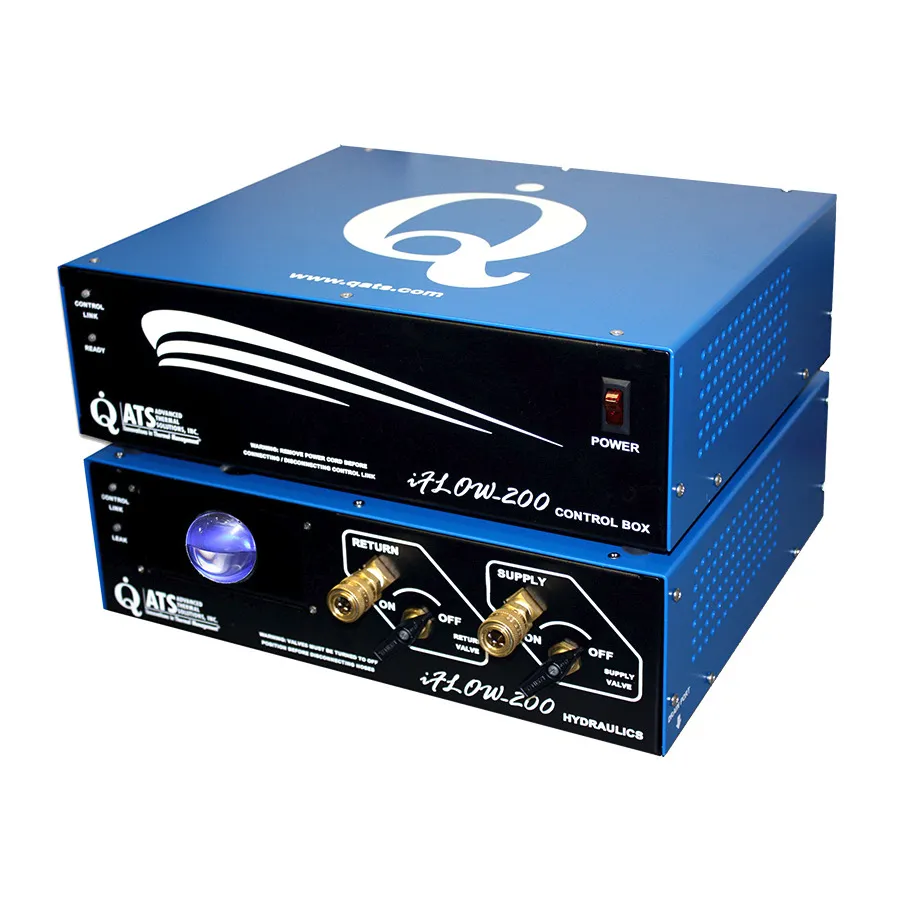

Advanced Thermal Solutions iFLOW-200 Cold Plate Testing System
Request a quote
Advanced Thermal Solutions iFLOW-200 is a benchtop characterization system for measuring thermal and hydraulic performance of cold plates, featuring automated testing software and real-time data an...
Product details
| Model | iFLOW-200 |
| Manufacturer | Advanced Thermal Solutions |
| Category | Digital Pressure Gauges |
| Availability | Made to order |
Description
Overview
The iFLOW-200 is a dedicated cold plate characterization system that automates the measurement of thermal and hydraulic performance. It measures pressure drop and temperature changes across a cold plate as a function of flow rate, eliminating tedious manual testing and enabling rapid evaluation of cooling designs.
Key Features
- Automated testing with coolingVIEW application software
- Two thermocouple ports (K-type) for temperature measurement
- Flow rate up to 4.5 L/min with ±1% accuracy
- Pressure measurement up to 103 kPa (15 psi) with ±1% accuracy
- Temperature range: 0–70°C flow, 0–200°C surface
- USB connection and separate control box with hydraulics unit
- Dual voltage operation: 110V or 240V AC
Applications
- Thermal management system design and validation
- Cooling solution performance testing and optimization
- Cold plate qualification for electronics and industrial applications
- Research and development of liquid cooling systems
Included Accessories
- Control box and hydraulics unit
- coolingVIEW software
- USB cable
Specifications
| Interface | USB |
| Pressure Range | 15 PSI |
| Temperature Range | 200 C |
