Decade Boxes
Decade Boxes
Decade boxes — also known as decade substitution boxes — are precision passive component substitution instruments that allow users to dial in exact values of resistance, capacitance, or inductance in discrete steps. Each decade dial adjusts a specific order of magnitude, enabling users to quickly set and fine-tune component values without soldering. They are widely used in electronics laboratories, calibration facilities, and R&D environments where components of known, precise value are required for circuit testing, bridge measurements, calibration, and educational demonstrations.

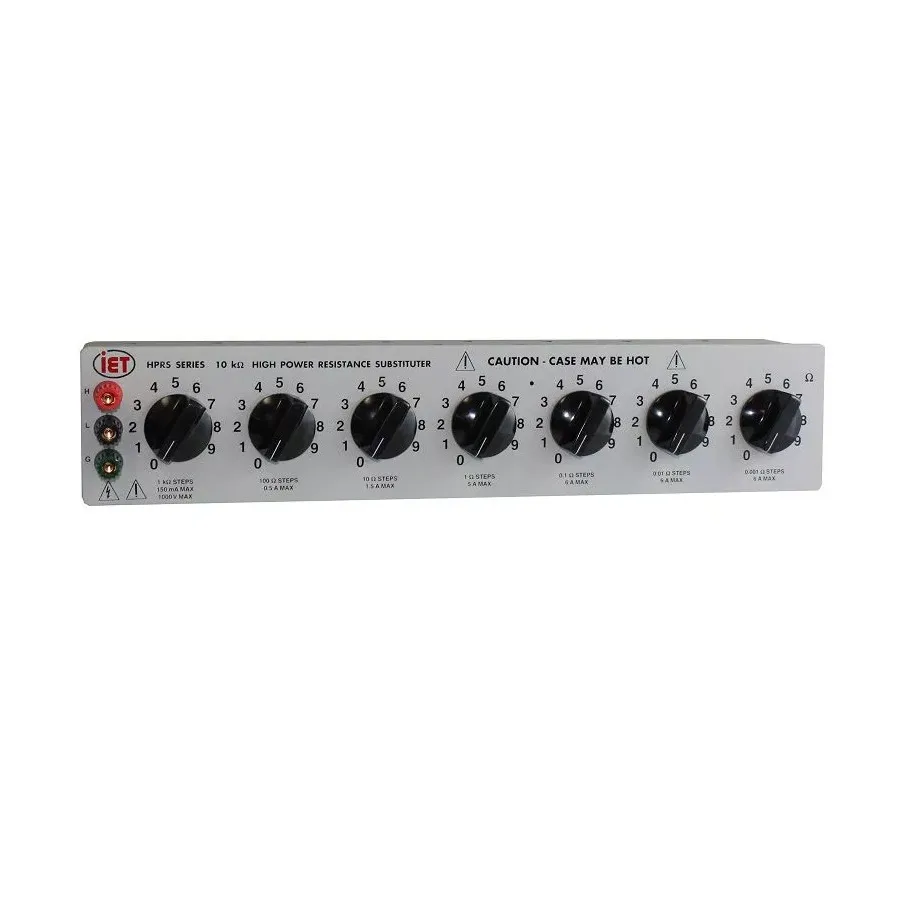

Decade resistance boxes are the most common type, with total resistance values selectable from single ohms to tens of megaohms. High-accuracy models from manufacturers such as IET Labs offer tolerances better than 0.01%, making them suitable as reference standards for bridge circuits and resistance meter calibration. Decade capacitors and inductors serve similar roles in analog circuit development and RF filter design.
Typical Applications
- Calibrating ohmmeters, LCR meters, and resistance bridges by substituting known reference values
- Circuit development and prototyping where component values need to be varied iteratively
- Filter design and testing requiring precise inductance or capacitance values
- Educational laboratory work demonstrating Ohm's law, RC circuits, and Wheatstone bridge balancing
- Simulating sensor impedances during signal conditioning circuit development
Popular Brands
IET Labs (successor to General Radio) is the dominant manufacturer in this category, offering the 1433 series decade resistors known for low residual impedance and tight tolerances. Yokogawa produces the 278610 and 2793 series of high-stability decade resistance boxes widely used in calibration laboratories. Prime Technology offers the 8053X series for general laboratory applications.
