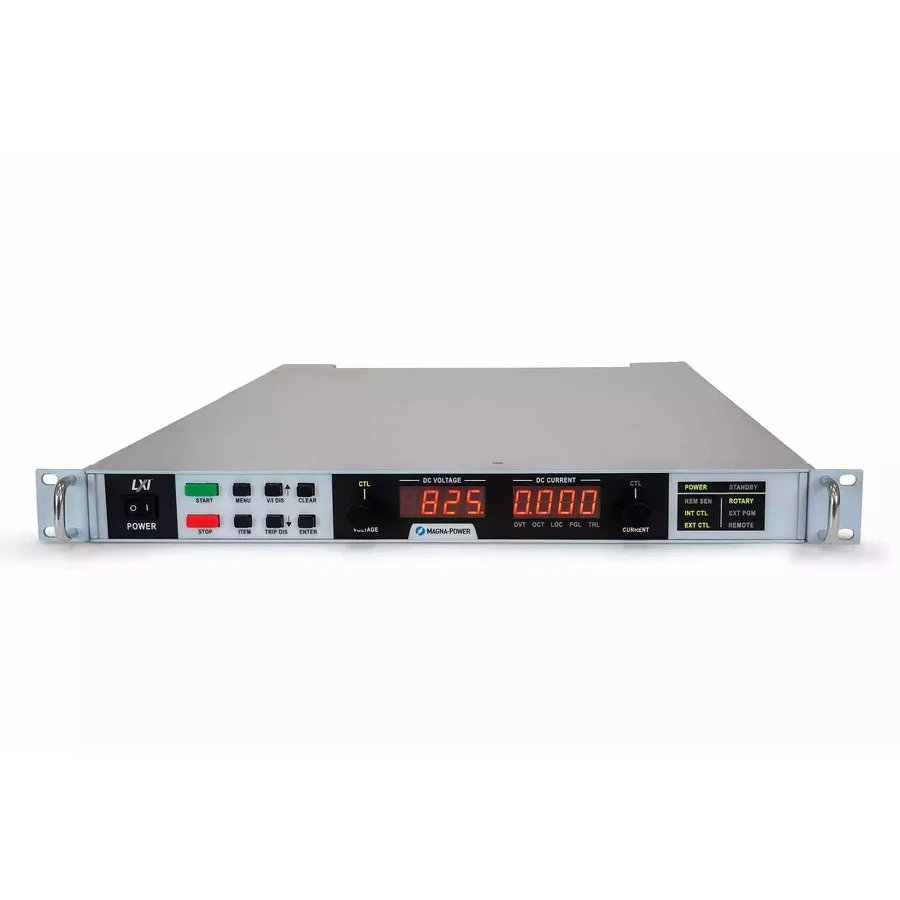

Magna Power SL1000-1.5/UI DC Power Supply
Request a quote
Magna Power SL1000-1.5/UI is a universal input programmable DC supply with 1000V/1.5A output, accepting 85-265VAC input for global voltage compatibility.
Product details
| Model | SL1000-1.5/UI |
| Manufacturer | Magna Power |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Magna-Power SL1000-1.5/UI is a programmable DC power supply with universal input voltage acceptance (85-265VAC), making it suitable for global deployment. It delivers 1000V at 1.5A (1.5kW) in a compact 1U rack-mount form factor, utilizing Magna-Power's current-fed topology and operating reliably at ambient temperatures up to 50°C.
Key Features
- Universal AC input: 85-265VAC (worldwide voltage compatibility)
- 1000V/1.5A output in 1U form factor
- Current-fed power processing topology
- SCPI remote programming with LabVIEW and IVI drivers
- Master-slave functionality for parallel operation
- Remote sensing and 0-10V analog control inputs
- 37-pin external user I/O connector
- RS232, Ethernet, and optional GPIB interfaces
- Programmable protection limits and fast transient response
- AC contactor with mechanical shutdown on fault
- AC phase loss, thermal, over-voltage, and over-current protection
- UL/CSA listed, CE marked
Applications
- International and multi-region test equipment systems
- Power device testing across global installations
- Field-deployable automated test equipment
- Research and development facilities worldwide
- Industrial and aerospace applications
Specifications
| Voltage Range Selector | 1,000-1,999 |
| Output Voltage | 1 kV |
| Current Range Selector | 0-2.49 |
| Output Current | 1.5 A |
| Power Range Selector | 1,000-2,499 |
| Power Rating | 1.5 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 85-265 VAC |
| Series | SL Series |
| Display | Digital |
| Interface | RS-232 |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 1U |
| Special Features | Master/Slave Modes, Remote Sense, Universal Input |
