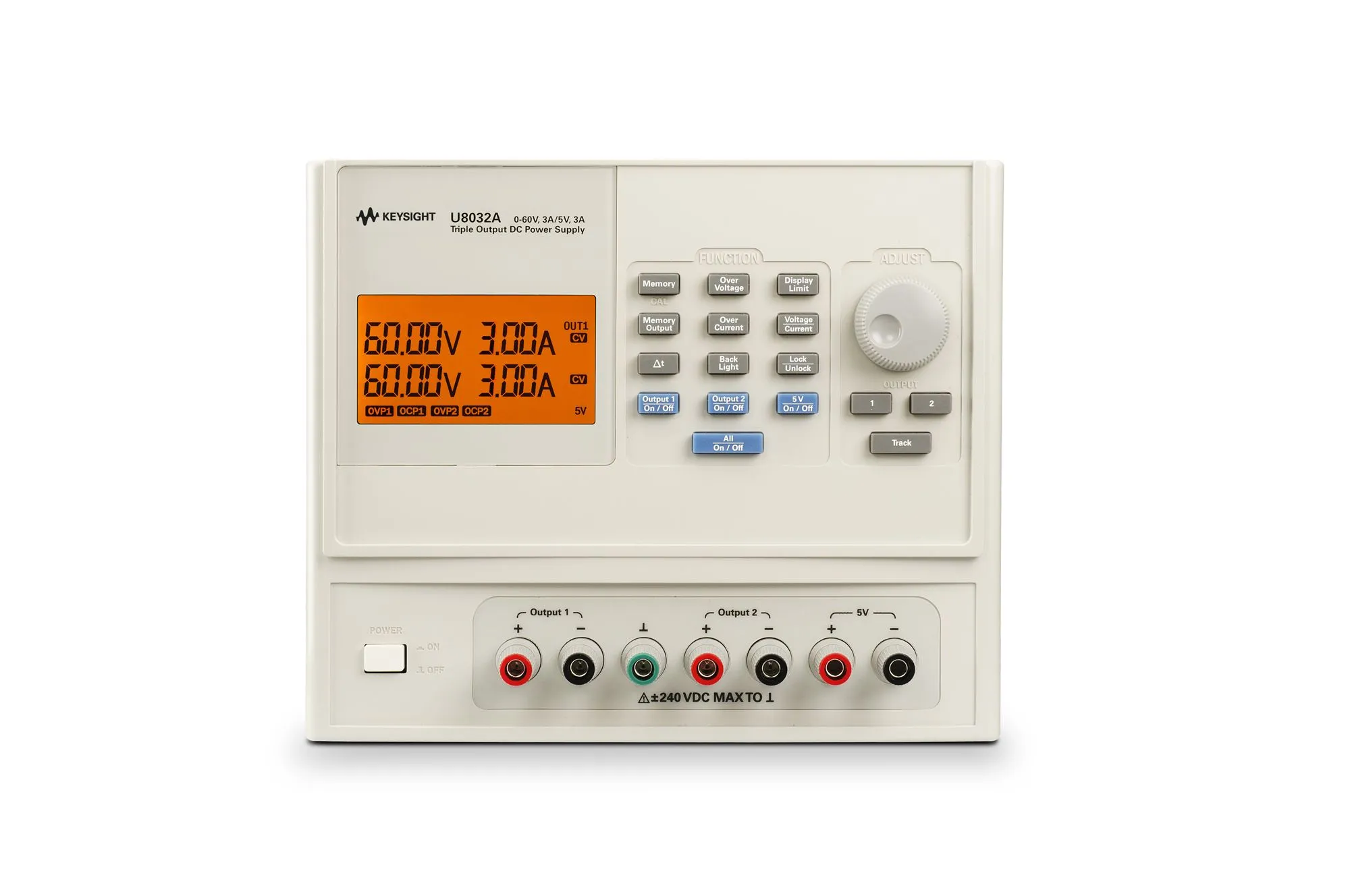

Keysight U8032A DC Power Supply
Request a quote
Keysight U8032A is a triple-output DC power supply with 375W total power, excellent load regulation (0.01% + 2mV), and fast transient response (<50µsec).
Product details
| Model | U8032A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight U8032A is a manual triple-output DC power supply providing 375 watts of total power. It combines excellent load regulation, clean output noise, and safety features to serve electronics manufacturing, research and development, and educational institutions with reliable, stable power delivery.
Key Features
- Excellent load and line regulation (CV: 0.01% + 2 mV; CC: 0.02% + 2 mA)
- Fast transient response < 50 µsec
- Low output noise ≤ 1 mVrms (0.5 mVrms typical) and ≤ 1 mArms from 20 Hz to 20 MHz
- Fully integrated over-voltage protection (OVP) and over-current protection (OCP)
- Keypad lock feature and physical lock mechanism
- Dual display shows both voltage and current reading
- Auto-tracking between output 1 and output 2
- Output sequencing function automates testing without coding
- Multiple channels that can be individually or simultaneously controlled
Applications
- Electronics manufacturing and component testing
- Research and development laboratories
- Educational institutions and training programs
- Burn-in testing and margin testing
Specifications
| Output Configuration | Triple-output (2x 0-60V/3A, 1x 5V/3A fixed) |
| Total Power | 375 W |
| Load Regulation (CV) | < 0.01% + 2 mV |
| Load Regulation (CC) | < 0.02% + 2 mA |
| Transient Response | < 50 µsec |
| Output Noise | ≤ 1 mVrms (0.5 mVrms typical) and ≤ 1 mArms (20 Hz - 20 MHz) |
| Protection | Over-voltage (OVP) and Over-current (OCP) |
| Programming | Analog front panel with output sequencing |
