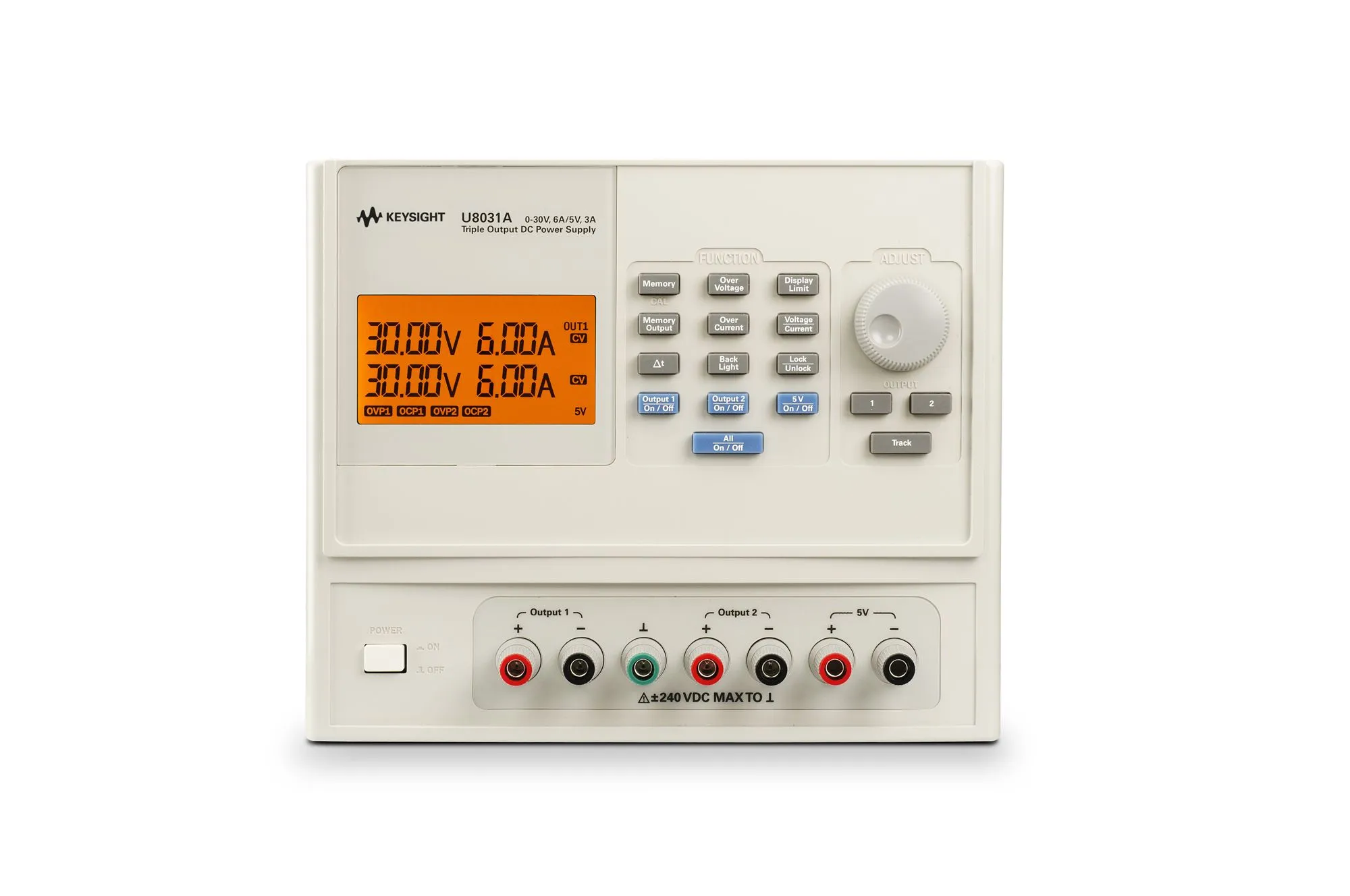

Keysight U8031A Triple-Output DC Power Supply
Request a quote
Keysight U8031A is a 375W triple-output DC power supply with excellent load regulation, low noise, and sequencing capability for electronics manufacturing and research applications.
Product details
| Model | U8031A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight U8031A is a 375W triple-output DC power supply designed for electronics manufacturing, research and development, and education sectors. It features manual front-panel programming with sequencing capability, allowing users to generate output sequences with minimal programming skills. Built with excellent load regulation and clean output noise, the U8031A provides reliable triple-output power for demanding applications.
Key Features
- Triple independent outputs with 2×30V/6A and fixed 5V/3A capability
- Total power capacity of 375W across all outputs
- Excellent load and line regulation (CV: <0.01% + 2 mV; CC: <0.02% + 2 mA)
- Low output noise ≤1 mVrms (0.5 mVrms typical) and ≤1 mArms from 20 Hz to 20 MHz
- Fast transient response <50 µsec for stable testing
- Dual display simultaneously shows voltage and current readings
- Auto-tracking between output 1 and output 2 with single control
- Integrated overvoltage protection (OVP) and overcurrent protection (OCP)
- Keypad lock and physical lock mechanism for safety
- Sequencing capability for margin tests, burn-in tests, and automated functions
Applications
- Electronics manufacturing and production testing
- Research and development laboratories
- Educational institutions and training centers
- Burn-in testing and margin analysis
- General-purpose DC power for multiple circuit channels
Specifications
| Maximum Voltage | 30V |
| Maximum Current | 6A |
| Maximum Power | 375W |
| Channel/Port Count | 3 |
| Phases | 1 |
