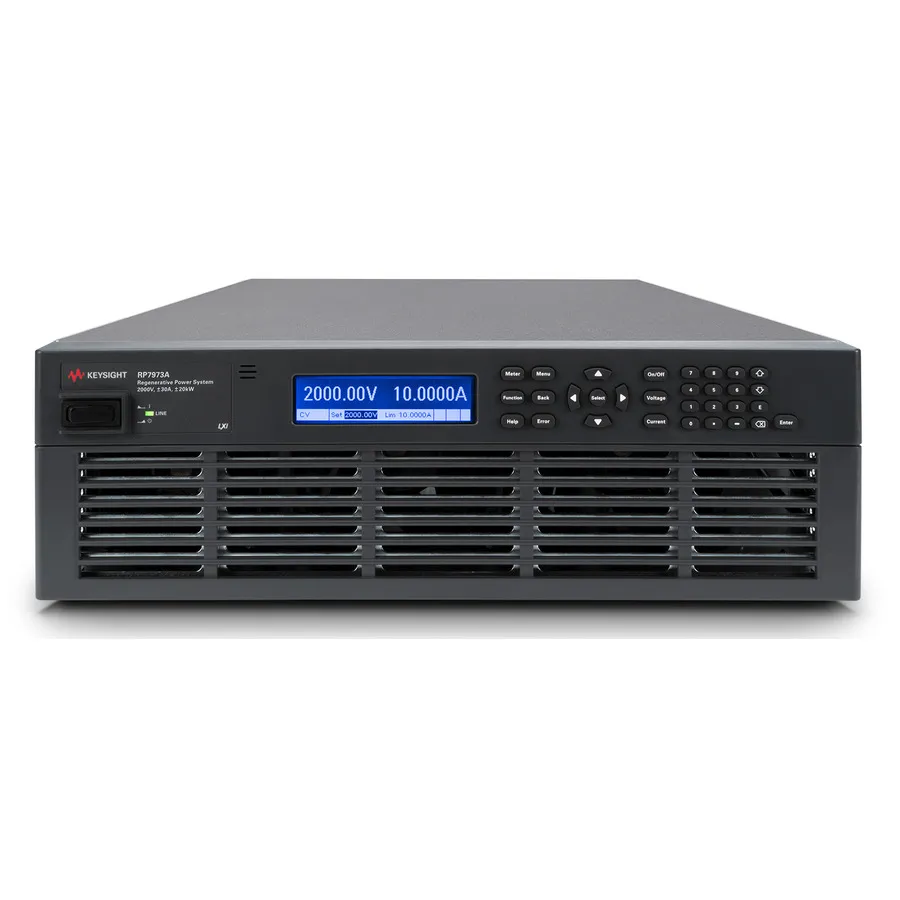

Keysight RP7973A Regenerative DC Power System
Request a quote
Keysight RP7973A is a 20 kW regenerative DC power supply with 2000 V, ±30 A bidirectional capability for extreme high-voltage battery and converter testing.
Product details
| Model | RP7973A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight RP7973A is a single-output, bidirectional regenerative DC power supply from the RP7900 Series with PV Mode capability. With 20 kW capacity at 2000 V, it delivers extreme high-voltage power sourcing and electronic loading in a compact 3U package. Ideal for testing the most demanding energy storage systems and high-voltage power converters, it safely returns energy to the grid rather than dissipating it as heat, reducing operational costs.
Key Features
- Output ratings: 2000 V, ±30 A, 20 kW
- Two-quadrant operation as power source and regenerative electronic load
- Programmable battery emulation with resistance up to 50 Ω
- Fast output speed with sub-millisecond command-processing time
- Easy parallel connection for up to 200 kW total power
- Eco-friendly regenerative design returns energy to grid
- Compact 3U-high package saves rack space
- Part of Keysight's EV1003A HEV/EV Power Converter Test Solution
Applications
- Extreme high-voltage electric vehicle (EV) power system testing
- High-voltage hybrid electric vehicle (HEV) power converter validation
- Ultra-high-voltage energy storage system (ESS) characterization
- High-voltage photovoltaic (PV) inverter testing
- Battery emulation and extreme high-power load simulation
Specifications
| Maximum Power | 20 kW |
| Output Voltage | 2000 V |
| Output Current | 30 A |
| Input Voltage | 400/480 VAC |
| Interface | GPIB,USB,LAN |
| Display | LCD |
| Series | RP7900 Series |
| Input Power | 400/480 VAC |
| Number of Outputs | Single Output |
