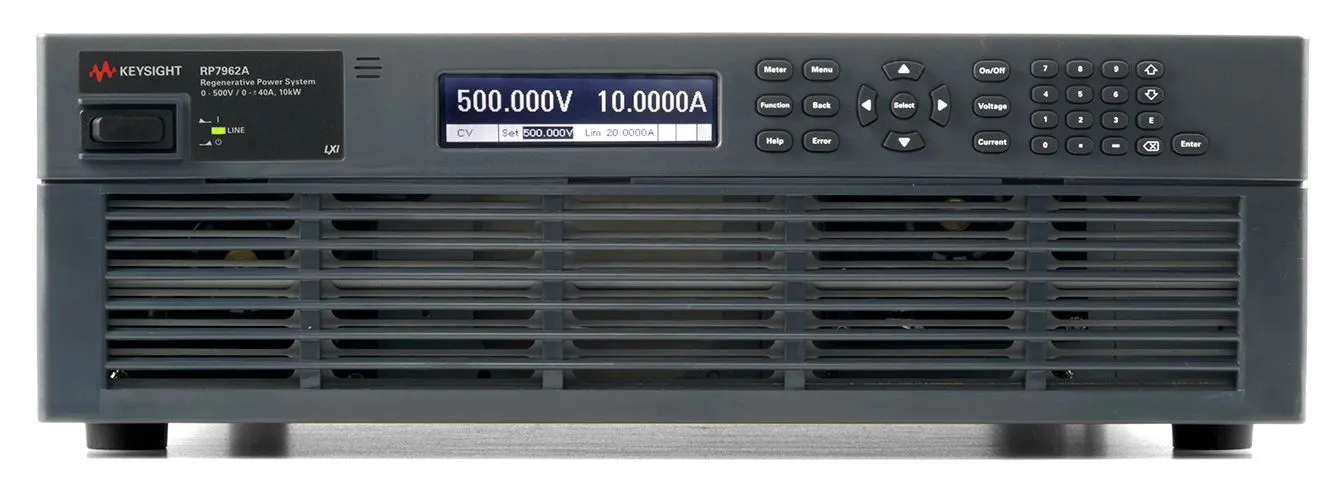

Keysight RP7962A Regenerative DC Power System
Request a quote
Keysight RP7962A is a 10 kW regenerative DC power supply with 500 V, ±40 A bidirectional capability for testing energy storage and power converters.
Product details
| Model | RP7962A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight RP7962A is a single-output, bidirectional regenerative DC power supply from the RP7900 Series. It combines power sourcing and electronic loading capabilities in a compact 3U package, making it ideal for testing energy storage systems and power converters. The regenerative capability returns energy to the grid instead of dissipating it as heat, reducing cooling and operational costs.
Key Features
- Output ratings: 500 V, ±40 A, 10 kW
- Two-quadrant operation as power source and regenerative electronic load
- Programmable battery emulation with resistance up to 50 Ω
- Fast output speed with sub-millisecond command-processing time
- Easy parallel connection for up to 200 kW total power
- Eco-friendly regenerative design returns energy to grid
- Compact 3U-high package saves rack space
Applications
- Testing electric vehicle (EV) and hybrid electric vehicle (HEV) power converters
- Energy storage system (ESS) validation and characterization
- Battery charger and power converter testing
- Photovoltaic (PV) inverter testing and validation
Specifications
| Maximum Voltage | 500V |
| Maximum Power | 10 kW |
| Output Voltage | 500 V |
| Output Current | 40 A |
| Input Voltage | 400/480 VAC |
| Interface | GPIB,USB,LAN |
| Display | LCD |
| Series | RP7900 Series |
| Input Power | 400/480 VAC |
| Number of Outputs | Single Output |
