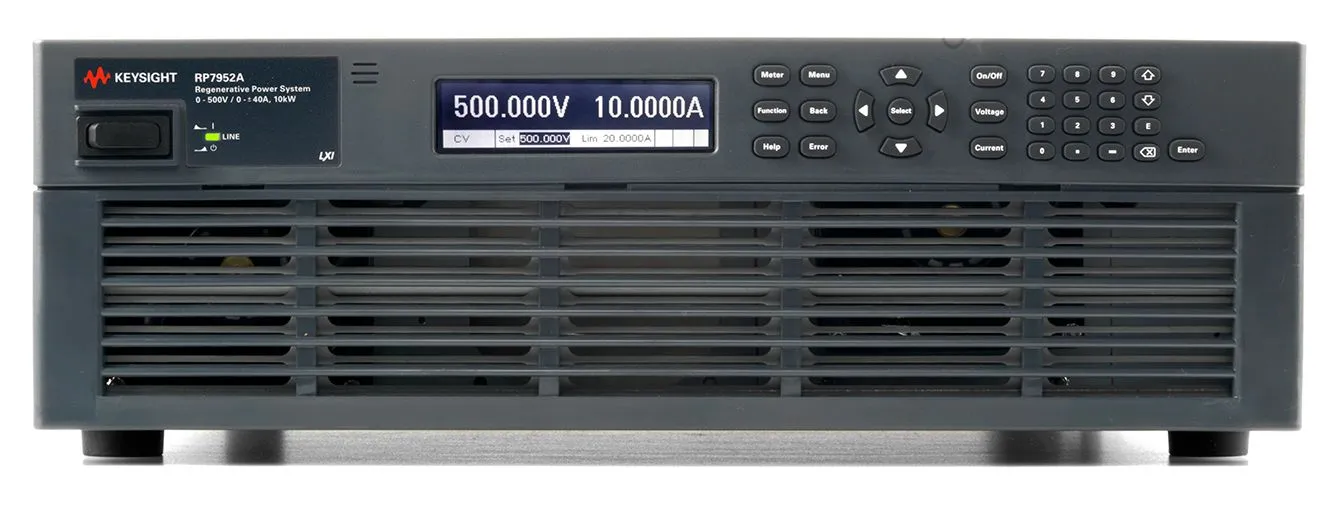

Keysight RP7952A Regenerative Power System

Overview

The Keysight RP7952A is a 500 V, ±40 A, 10 kW bidirectional/regenerative power system designed for high-power testing of hybrid and electric vehicles. Operating in two-quadrant mode, it seamlessly sources and sinks current while emulating high-voltage battery behavior with programmable internal resistance. The regenerative design returns energy to the grid cleanly, reducing both energy costs and cooling requirements.

Key Features

• Output ratings: 500 V, ±40 A, 10 kW with autoranging output characteristics
• Two-quadrant bidirectional operation as both power source and regenerative electronic load
• High-voltage battery emulation with programmable resistance up to 50 Ω
• Fast output speed with sub-millisecond command processing
• Easy parallel connection capability for up to 200 kW power or loading
• Eco-friendly regenerative design returning 90% of energy to the grid
• Compact 3U-high form factor for space-efficient ATE setups
• Advanced voltage and current measurement with high accuracy
• Multiple connectivity: GPIB, Ethernet/LAN (LXI Core), and USB 2.0

Applications

• Hybrid and electric vehicle power system testing
• High-voltage battery characterization and emulation
• EV charging system validation
• Power converter efficiency testing
• DC/DC converter evaluation
• Energy storage system testing
