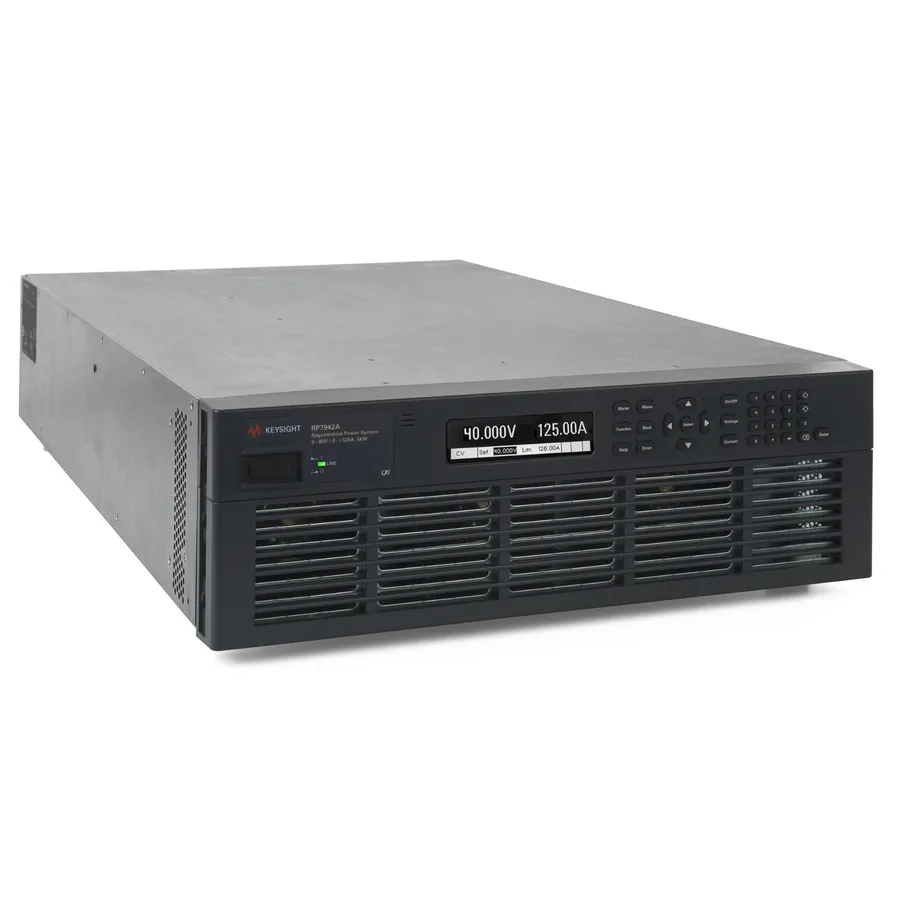

Keysight RP7942A Regenerative Power System
Request a quote
Keysight RP7942A is a bidirectional regenerative DC power supply rated for 80V, 125A, and 5kW, ideal for testing energy storage and power converter systems.
Product details
| Model | RP7942A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight RP7942A is a bidirectional, regenerative DC power supply providing both sourcing and electrical loading capabilities. Rated for 80V, 125A, and 5kW output, it is designed for testing energy storage systems and power converters. The regenerative capability enables energy normally consumed to be returned to the grid cleanly, reducing costs associated with energy consumption and cooling while maintaining a compact form factor.
Key Features
- Output ratings: 80V, ±125A, 5kW
- Bidirectional operation as power source and regenerative electronic load
- Fast output speed with sub-millisecond command-processing time
- Voltage or current priority operation with positive and negative current limits
- Seamless current source-to-sink switching capability
- Parallel connection support for up to 200 kW power or loading
- Compact 3U-high rack-mountable package
- Integrated safety features protecting personnel and device under test
Applications
- Energy storage system testing and validation
- Battery charger and converter testing
- Hybrid electric vehicle (HEV) power converter testing
- Electric vehicle (EV) power converter testing
- Regenerative load simulation for power supply testing
- Two-quadrant electronic load applications
Specifications
| Maximum Power | 5 kW |
| Output Voltage | 80 V |
| Output Current | 125 A |
| Input Voltage | 400/480 VAC |
| Interface | GPIB,USB,LAN |
| Display | LCD |
| Series | RP7900 Series |
| Input Power | 400/480 VAC |
| Number of Outputs | Single Output |
