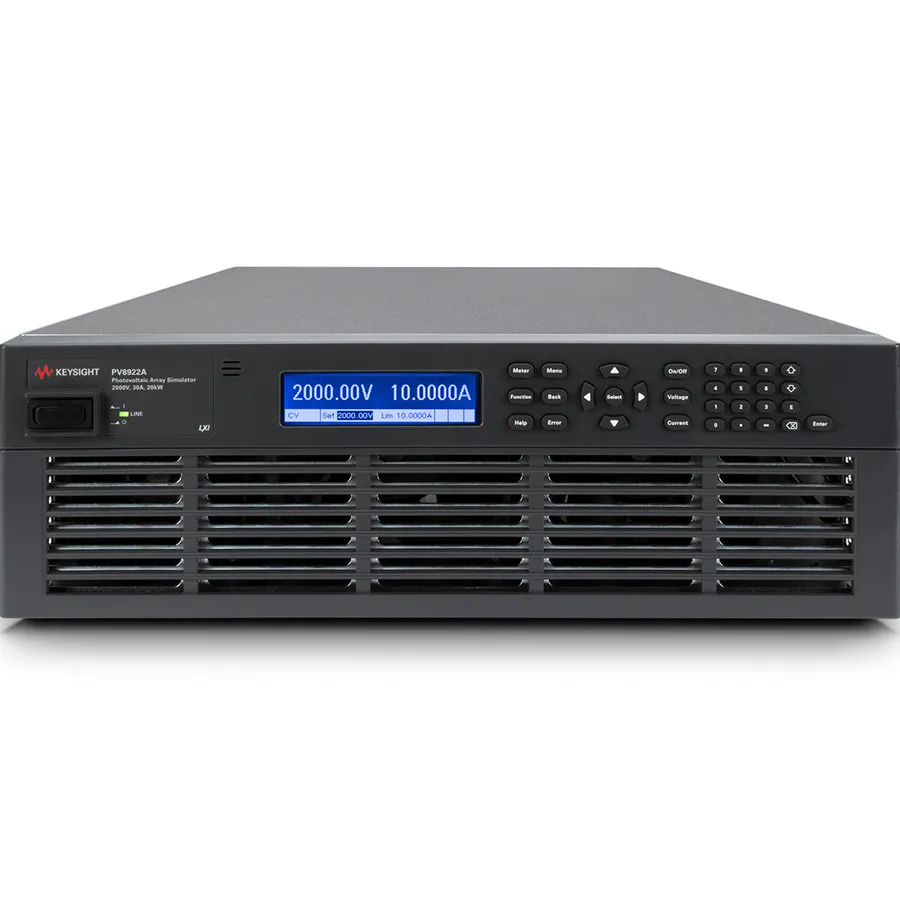

Keysight PV8922A Photovoltaic Array Simulator
Request a quote
Keysight PV8922A photovoltaic array simulator with 2000V/30A output for high-voltage inverter testing and MPPT algorithm development.
Product details
| Model | PV8922A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight PV8922A is an autoranging, programmable DC power source designed to simulate photovoltaic array output characteristics at higher voltages. It enables designers and manufacturers of high-voltage solar inverters to develop, verify, and optimize maximum power point tracking (MPPT) algorithms and circuits, with the ability to simulate various environmental conditions including temperature, irradiance, cell technology variations, and aging effects.
Key Features
- Maximum output voltage: 2000 VDC
- Maximum output current: 30 A
- Maximum power: 20 kW DC
- Input voltage: 400/480 VAC
- I-V curve modes: Curve Mode or Table Mode specification
- Functions as traditional autoranging DC power supply
Applications
- Design laboratory testing of high-voltage photovoltaic solar inverters
- Manufacturing line performance validation and testing
- MPPT algorithm optimization and verification
- European EN50530 standard compliance testing
- Multi-input inverter systems with up to 2000 V per input
Specifications
| Power Rating | 20 kW |
| Output Voltage | 2000 V |
| Output Current | 30 A |
| Input Voltage | 400/480 VAC |
| Type | Rack Mount |
| Rack Space | 3U |
| Series | PV8900 Series |
