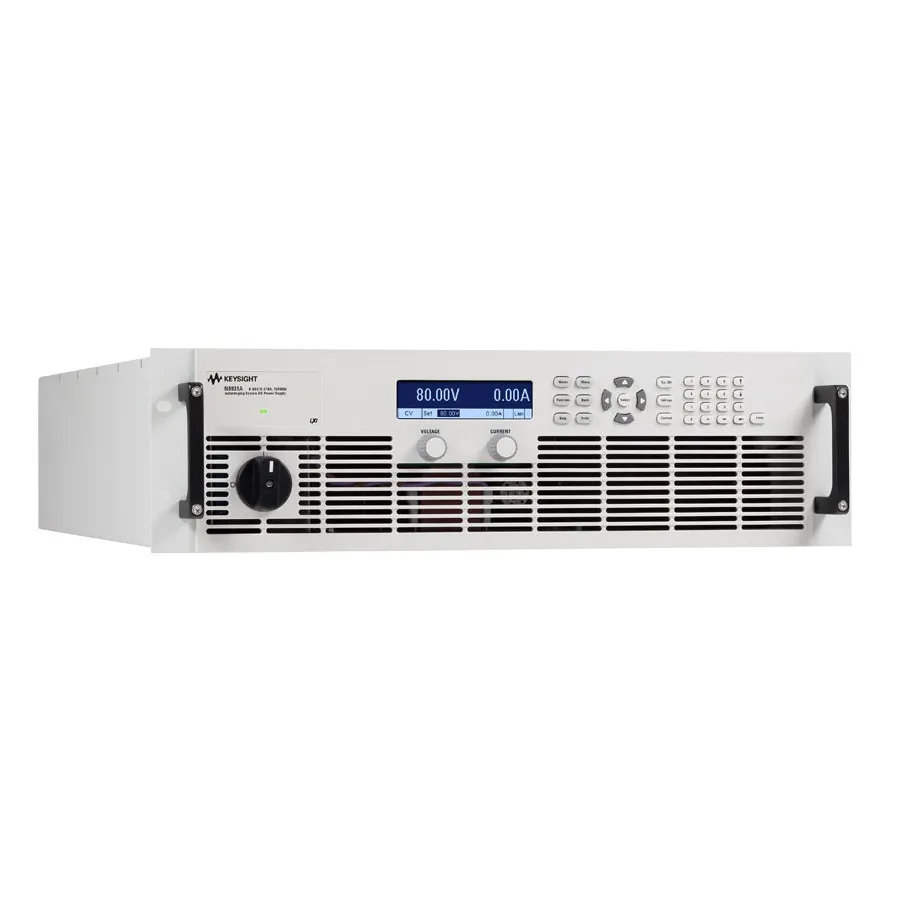

Keysight N8937A DC Power Supply
Keysight N8937A is a 15 kW autoranging DC power supply with 0–1500V, 0–30A output, featuring built-in measurement and LXI Core/USB/GPIB/analog interfaces.
Product details
| Model | N8937A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8937A is a 15 kW autoranging DC power supply engineered for high-voltage ATE applications and laboratory testing. It provides 0–1500V and 0–30A output with programmable control. The autoranging characteristic enables flexible voltage and current combinations at full power output.
Built-in voltage and current measurement capabilities, combined with protections against over-voltage, over-current, and over-temperature, ensure reliable operation in demanding test scenarios. The 3U form factor provides space-efficient rack mounting, and multiple units can be paralleled for expanded power capacity up to 100 kW.
Key Features
- Autoranging output: 0–1500V, 0–30A, 15 kW maximum power
- Built-in voltage and current measurement
- Protection from over-voltage, over-current, and over-temperature
- High power density in compact 3U (5.25" / 13.34 cm) chassis
- Multiple interface options: LAN (LXI Core), USB, GPIB, and analog
- Expandable: parallel multiple units up to 100 kW total output power
- Input: 187–240V, single-phase AC
- Three-year warranty
Applications
- High-voltage automated test equipment (ATE)
- Laboratory research and development
- Power module and converter testing
- Parallel operation for increased power capacity
Specifications
| Voltage Range Selector | 1,000-1,999 |
| Output Voltage | 1.5 kV |
| Current Range Selector | 30-49.9 |
| Output Current | 30 A |
| Power Range Selector | 10,000-19,999 |
| Power Rating | 15 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 208 VAC |
| Series | N8900 Series |
| Interface | GPIB,USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 3U |
| Special Features | Autoranging |
