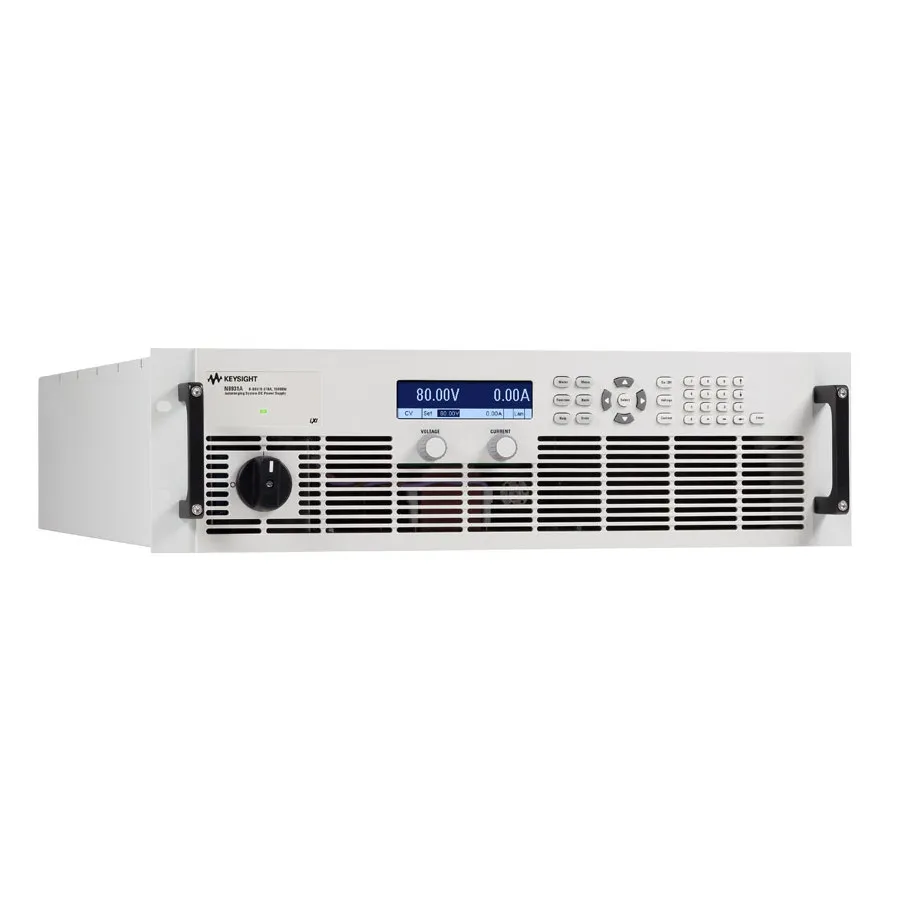

Keysight N8935A DC Power Supply

Overview

The Keysight N8935A is a 15 kW autoranging DC power supply designed for ATE applications and laboratory testing. It offers 0–750V and 0–60A output with programmable voltage and current control. The autoranging characteristic provides flexibility in voltage and current combinations at full power output.

Built-in measurement capabilities for voltage and current, combined with comprehensive protections for over-voltage, over-current, and over-temperature conditions, make this supply suitable for demanding test environments. The compact 3U form factor enables space-efficient rack integration, and multiple units can be paralleled for higher total power.

Key Features

• Autoranging output: 0–750V, 0–60A, 15 kW maximum power
• Built-in voltage and current measurement
• Protection from over-voltage, over-current, and over-temperature
• High power density in compact 3U (5.25" / 13.34 cm) chassis
• Multiple interface options: LAN (LXI Core), USB, GPIB, and analog
• Expandable: parallel multiple units up to 100 kW total output power
• Input: 187–240V, 3-phase AC
• Three-year warranty

Applications

• Automated test equipment (ATE) systems
• Laboratory research and development
• Electronic device testing and validation
• Parallel operation for high-power testing
