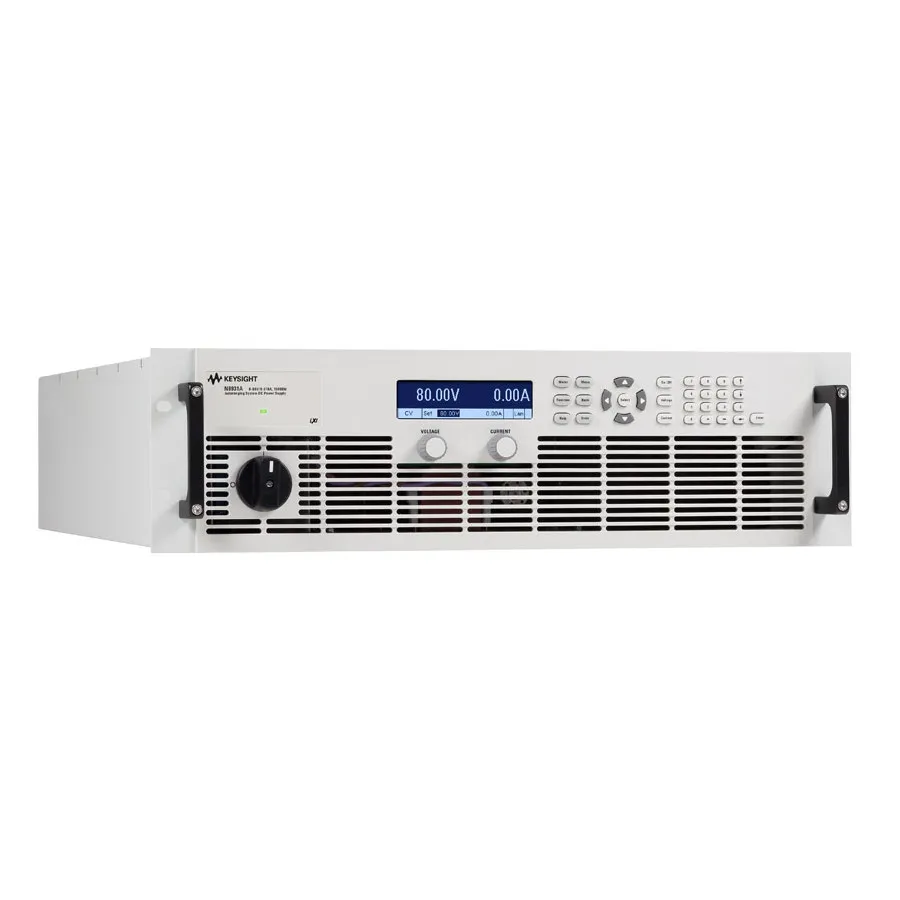

Keysight N8931A DC System Power Supply
Request a quote
Keysight N8931A 15 kW autoranging DC power supply with 0-80V, 0-510A output for high-current ATE applications with LAN, USB, GPIB.
Product details
| Model | N8931A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8931A is a 15 kW autoranging DC power supply designed for automated test equipment (ATE) applications requiring high current output. It delivers 0-80V and 0-510A with unprecedented flexibility, enabling a single unit to replace multiple traditional power supplies.
Key Features
- Autoranging output: 0-80V, 0-510A, 15,000W maximum
- Built-in voltage and current measurement
- Protection from over-voltage, over-current, and over-temperature
- High power density in compact 3U form factor (5.25" / 13.34 cm height)
- LAN (LXI Core), USB, GPIB, and analog interfaces standard
- Expandable to 100 kW total output power with parallel operation
- Three-year warranty
- Input: 187-240V, 3-phase
Applications
- High-current device testing and characterization
- Automated test equipment (ATE) systems
- Production line validation for current-intensive loads
- Battery charging and discharging applications
Specifications
| Voltage Range Selector | 50-99.9 |
| Output Voltage | 80 V |
| Current Range Selector | 500-1,499 |
| Output Current | 510 A |
| Power Range Selector | 10,000-19,999 |
| Power Rating | 15 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 208 VAC |
| Series | N8900 Series |
| Display | Digital |
| Interface | GPIB,USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 3U |
| Special Features | Autoranging, Master/Slave Modes |
