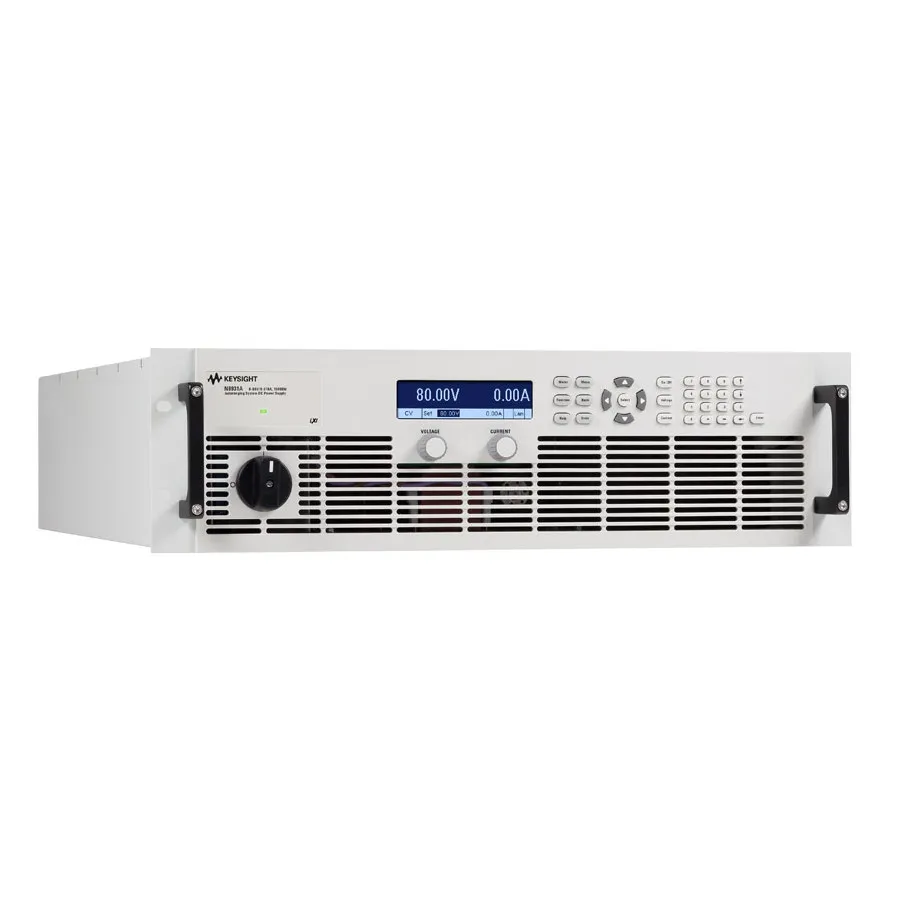

Keysight N8929A DC Power Supply
Request a quote
Keysight N8929A is a 10kW autoranging DC power supply with 0-750V/40A output, three-phase input, built-in measurement, protections, and LAN/USB/GPIB interfaces.
Product details
| Model | N8929A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8929A is a 10kW autoranging DC power supply designed for automated test equipment (ATE) applications. It provides 0-750V and 0-40A output with flexible voltage and current combinations at full power, offering the capabilities of multiple traditional power supplies in a single compact 3U unit.
Key Features
- Autoranging output: 0-750V/40A at 10kW maximum
- Three-phase AC input: 187-240V
- Built-in voltage and current measurement
- Protection: over-voltage, over-current, and over-temperature
- Compact 3U form factor (5.25" tall)
- Standard interfaces: LAN (LXI Core), USB, GPIB, and analog
- Expandable to 100kW through parallel operation
- Three-year warranty
Applications
- Automated test equipment (ATE) systems
- Component and module testing at high power
- Power system integration and distribution
Specifications
| Voltage Range Selector | 500-999 |
| Output Voltage | 750 V |
| Current Range Selector | 30-49.9 |
| Output Current | 40 A |
| Power Range Selector | 10,000-19,999 |
| Power Rating | 10 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 208 VAC |
| Series | N8900 Series |
| Display | Digital |
| Interface | GPIB,USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 3U |
| Special Features | Autoranging, Master/Slave Modes |
