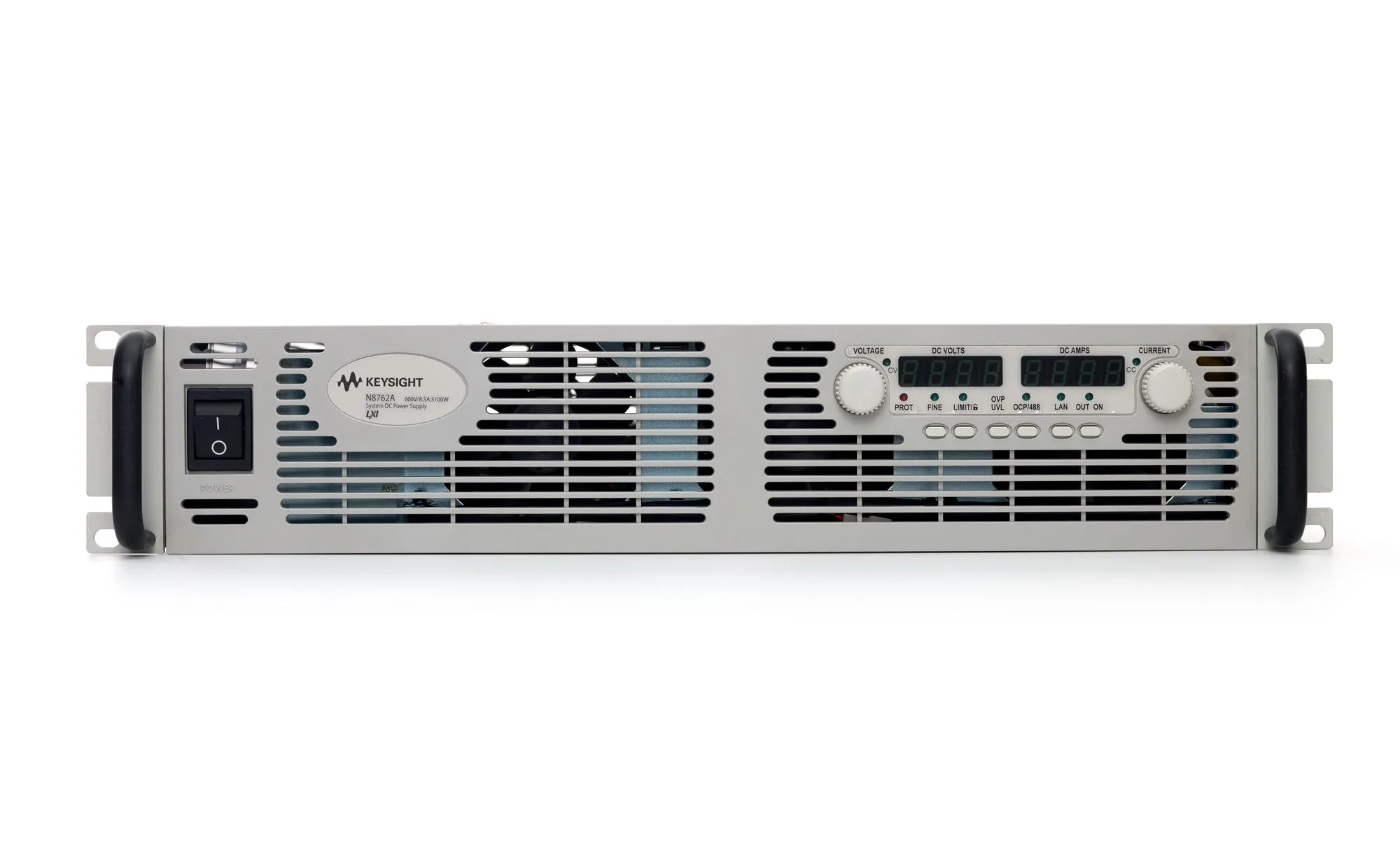

Keysight N8762A DC Power Supply
Request a quote
Keysight N8762A 600V, 8.5A DC power supply with 0.025% voltage accuracy, compact 2U package, and low-noise output.
Product details
| Model | N8762A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8762A is a programmable single-output DC power supply from the N8700 series, delivering 600 V at 8.5 A (5.1 kW) in a compact 2U rackmount package. Designed for high-voltage test equipment and automated systems, it combines high power density with extensive protection and modern connectivity.
Key Features
- Output: 600 V, 8.5 A, 5.1 kW
- Programming accuracy: 0.025% + 450 mV (voltage), 0.1% + 25.5 mA (current)
- Output ripple and noise: 120 mV rms
- Compact high-power-density 2U package
- Low noise output: as low as 8 mV rms achievable
- Extensive device protection: overcurrent, overvoltage, and underload
- Simple front-panel operation with separate voltage and current knobs
- Modern I/O: USB, LAN (LXI-Core), GPIB
- Front-to-back airflow simplifies rack mounting
- Power supply protection from overtemperature
- Connect up to 4 units in parallel for higher current
Applications
- High-voltage automated test equipment
- Laboratory test and measurement systems
- Industrial power applications
- Device characterization and testing
Included Accessories
- Certificate of calibration
Specifications
| Feature | Parameter |
| DC Output Ratings | Voltage: 600 V Current: 8.5 A Power: 5100 W |
| Programming Accuracy | Voltage: 0.025% + 450 mV Current: 0.1% + 25.5 mA |
| Output Ripple and Noise | CV p-p: 500 mV CV rms: 120 mV |
| N8762A | 600 V8.5 A5100 W |
