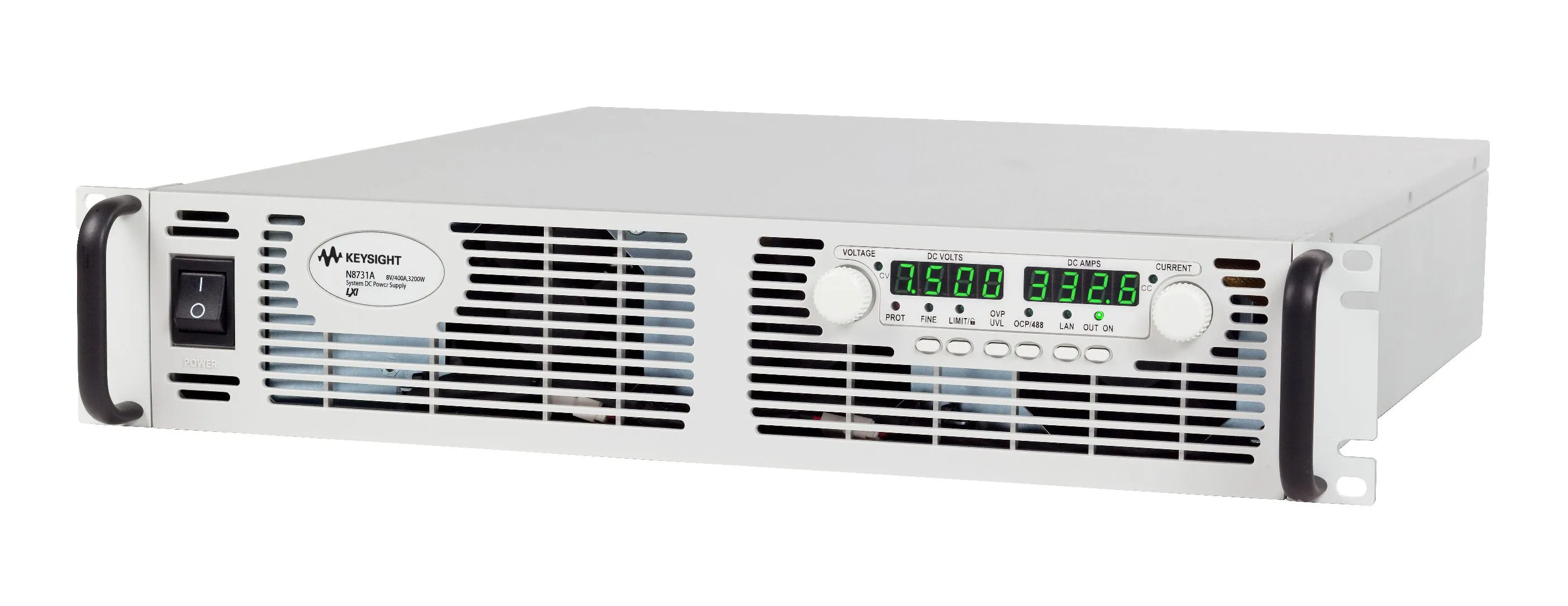

Keysight N8757A DC Power Supply
Request a quote
Keysight N8757A is a programmable 60V, 85A, 5.1kW DC power supply in compact 2U with 0.025% voltage accuracy, 10 mVrms noise, and LAN/USB/GPIB connectivity.
Product details
| Model | N8757A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8757A is a programmable DC power supply delivering 60V at 85A (5100W) in a compact 2U package. Designed for automated test equipment (ATE) applications, it combines medium voltage capability with high current and low noise performance. The unit supports front-to-back airflow for convenient rack mounting and can be connected in parallel or series with identical units for flexible configuration.
Key Features
- Compact 2U package with high-power density and front-to-back airflow
- Low noise output: 10 mVrms typical
- High precision: 0.025% + 45 mV voltage accuracy, 0.1% + 255 mA current accuracy
- Extensive protection: overcurrent, overvoltage, under-voltage, and overtemperature
- Simple front panel operation with separate voltage and current knobs
- Multiple interfaces: LAN (LXI-Core), USB, and GPIB
- Flexible AC input: 208V, 230V, or 400V selectable
- Connect up to 4 units in parallel for higher current or 2 units in series for higher voltage
Applications
- Automated test equipment (ATE) systems
- Laboratory testing and device characterization
- Burn-in testing and reliability verification
- Medium-voltage, high-current DC applications
Specifications
| Maximum Voltage | 60V |
| Maximum Current | 70A |
| Maximum Power | 5120W |
| Channel/Port Count | 1 |
| Phases | 1 |
