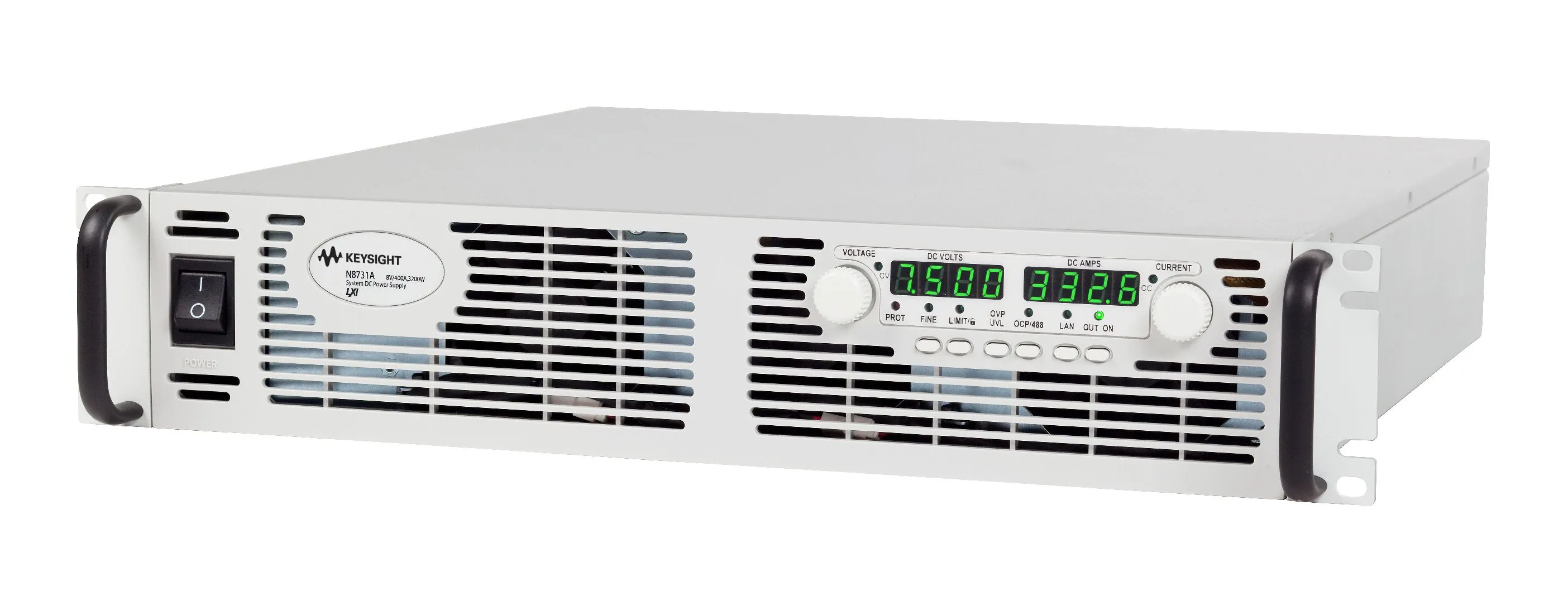

Keysight N8756A DC Power Supply
Request a quote
Keysight N8756A is a programmable 40V, 125A, 5kW DC power supply in compact 2U with 0.025% voltage accuracy, 10 mVrms noise, and LAN/USB/GPIB connectivity.
Product details
| Model | N8756A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8756A is a programmable DC power supply delivering 40V at 125A (5000W) in a compact 2U package. Designed for automated test equipment (ATE) applications, it combines high current capability with low noise performance and flexible connectivity. The unit supports front-to-back airflow for convenient rack mounting and can be connected in parallel with identical units to achieve higher output current.
Key Features
- Compact 2U package with high-power density and front-to-back airflow
- Low noise output: 10 mVrms typical
- High precision: 0.025% + 30 mV voltage accuracy, 0.1% + 375 mA current accuracy
- Extensive protection: overcurrent, overvoltage, under-voltage, and overtemperature
- Simple front panel operation with separate voltage and current knobs
- Multiple interfaces: LAN (LXI-Core), USB, and GPIB
- Flexible AC input: 208V, 230V, or 400V selectable
- Connect up to 4 units in parallel for increased output current
Applications
- Automated test equipment (ATE) systems
- Laboratory testing and device characterization
- Burn-in testing and reliability verification
- High-current DC applications requiring precision control
Specifications
| Maximum Voltage | 40V |
| Maximum Current | 120A |
| Maximum Power | 5000W |
| Channel/Port Count | 1 |
| Phases | 1 |
