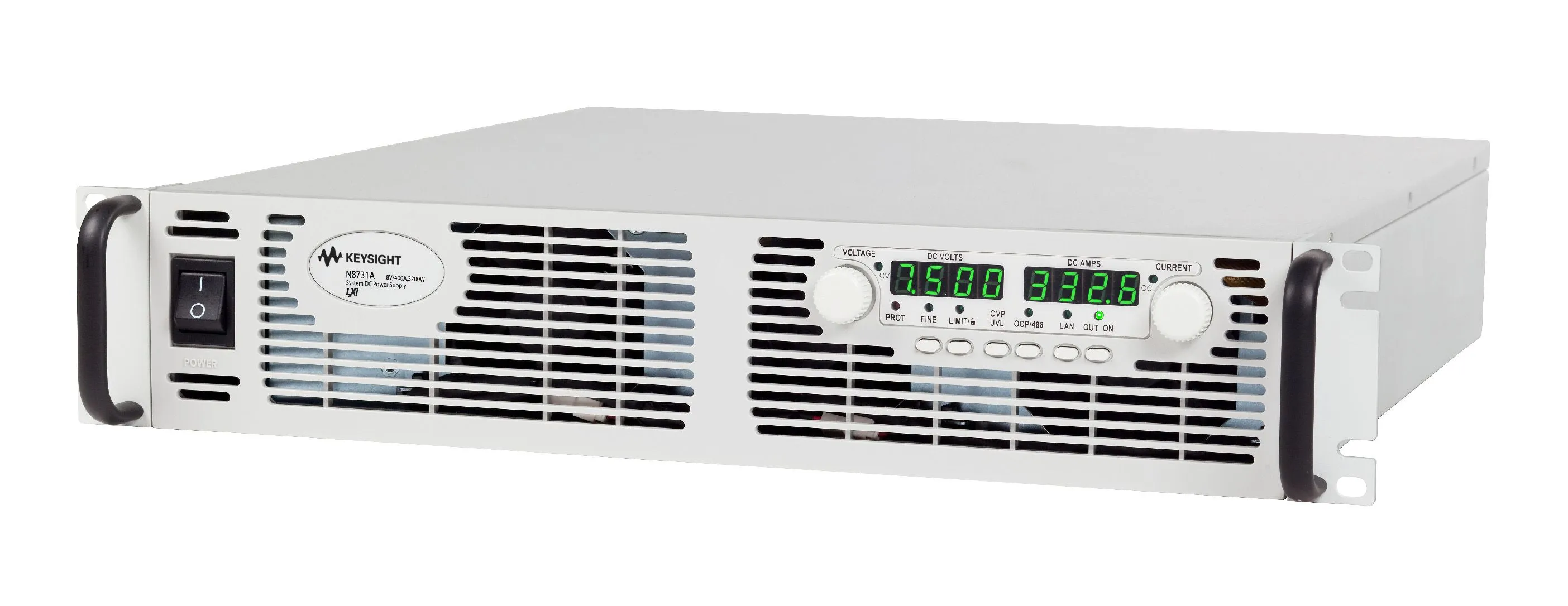

Keysight N8755A DC Power Supply

Overview

The Keysight N8755A is a programmable single-output DC power supply delivering 30V and 170A (5.1kW) in a compact 2U package. Designed for automated test equipment (ATE) and high-current applications, it combines high power density with flexible connectivity and configuration options.

Features include front-panel operation with separate voltage and current knobs, built-in measurement of output voltage and current, and complete protection from overvoltage and overcurrent conditions. The N8755A supports parallel connection of up to four identical units for higher current or series connection for higher voltage, with airflow designed to allow direct stacking in ATE racks.

Key Features

• DC Output: 30V, 170A, 5100W
• Voltage accuracy: 0.025% + 22.5mV
• Current accuracy: 0.1% + 510mA
• Output ripple and noise: 75mV peak-to-peak, 10mV RMS
• Compact 2U package (19-inch wide)
• Front-to-back airflow for simplified rack mounting
• Built-in voltage and current measurement
• Overvoltage, overcurrent, and undervoltage protection
• Multiple connectivity: LAN (LXI), USB, GPIB
• Analog programming and monitoring inputs
• IVI-COM drivers with SCPI support
• Web server for remote operation via standard browser

Applications

• Automated test equipment (ATE)
• Device characterization and testing
• High-current power applications
• Component testing and burn-in
• Research and laboratory testing

Included Accessories

• Certificate of calibration
