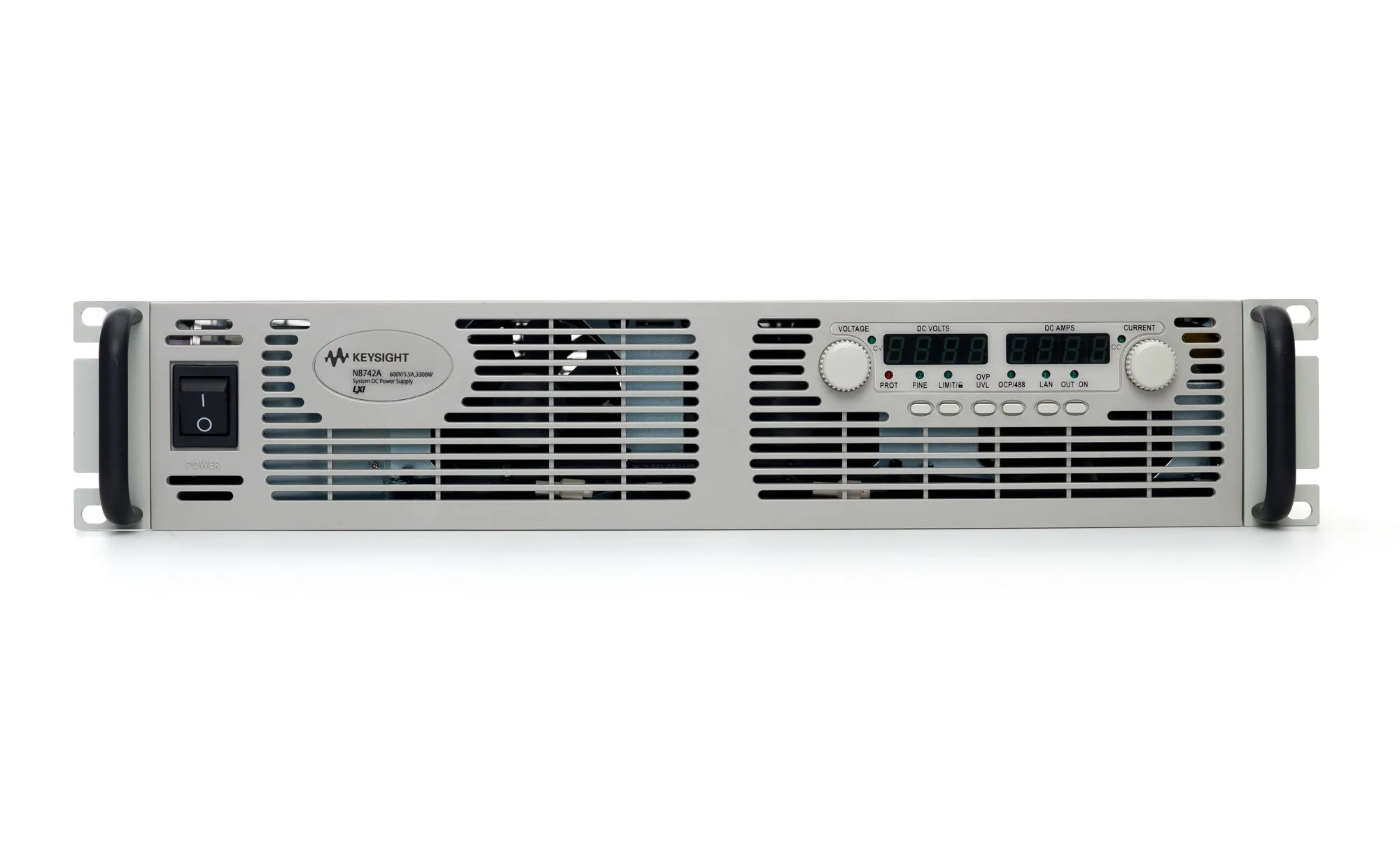

Keysight N8742A DC Power Supply
Request a quote
Keysight N8742A is a 600V, 5.5A programmable DC power supply with 3300W output, low noise, extensive device protection, and USB, LAN, GPIB connectivity.
Product details
| Model | N8742A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8742A is a single-output programmable DC power supply delivering 600V and 5.5A (3300W) in a high-density 2U rack-mount package. Part of the N8700 series ATE system power supplies, it features compact dimensions with front-to-back airflow for simplified rack mounting, extensive device protection, and modern connectivity via USB, LAN (LXI), and GPIB for automated test systems and remote operation.
Key Features
- 600V, 5.5A output with 3300W power rating
- Voltage programming accuracy: 0.05% + 300 mV
- Current programming accuracy: 0.1% + 11 mA
- Output ripple and noise: 500 mV p-p CV, 120 mV RMS CV
- Low noise output: 120 mVRMS
- Compact high-power-density 2U package
- Extensive device protection: overcurrent, overvoltage, and undervoltage
- Overtemperature protection
- Simple front panel operation with separate voltage and current knobs
- Modern interfaces: USB, LAN (LXI-Core), and GPIB
- Front-to-back airflow for simplified rack mounting
- Series/parallel connection capability for higher voltage or current output
- Flexible AC input options: 208V, 230V, or 400V
Applications
- Automated test equipment (ATE) systems
- High-voltage DC source for electronic testing and characterization
- Laboratory research and development applications
- Industrial production testing and system integration
Specifications
| Feature | Parameter |
| DC Output Ratings | Voltage: 600 V Current: 5.5 A Power: 3300 W |
| Programming Accuracy | Voltage: 0.05% + 300 mV Current: 0.1% + 11 mA |
| Output Ripple and Noise | CV p-p: 500 mV CV rms: 120 mV |
| N8742A | 600 V5.5 A3300 W |
