Keysight N8739A DC Power Supply
Request a quote
Keysight N8739A single-output DC power supply delivers 100V at 33A with 0.05% accuracy, 3300W power output, and integrated USB/LAN/GPIB connectivity in a 2U package.
Product details
| Model | N8739A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview

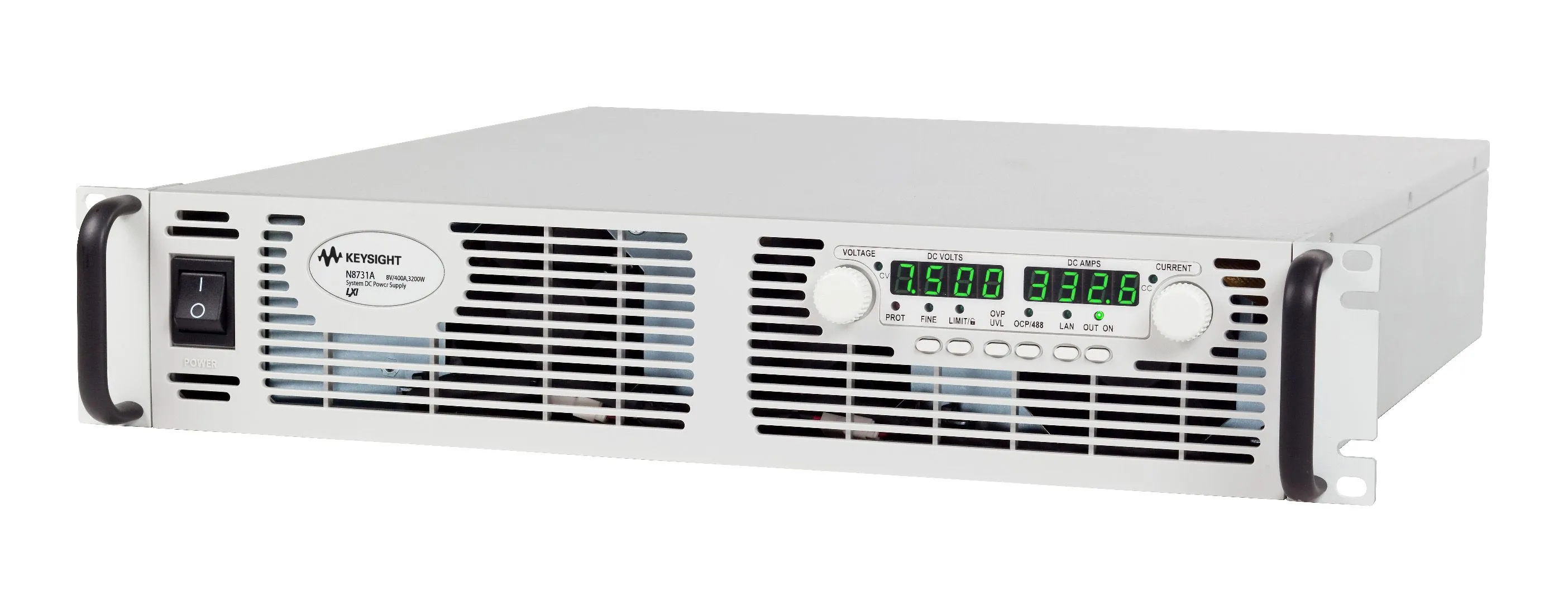

The Keysight N8739A is a single-output DC power supply delivering 100V at 33A (3300W) in a compact 2U package. Part of the N8700 series, it combines high power density with low noise output and comprehensive protection features, making it ideal for automated test equipment and laboratory applications requiring stable DC power.
Key Features
- Single output: 100V, 33A, 3300W
- Programming accuracy: voltage 0.05% + 50mV, current 0.1% + 66mA
- Low noise output: 100mV p-p, 25mV rms in CV mode
- Compact 2U high-density package with front-to-back airflow
- Built-in voltage and current measurement
- Extensive device protection: overcurrent, overvoltage, and under-voltage
- LAN, USB, and GPIB interfaces standard
- Flexible configuration: parallel connection of up to 4 units
- Front-panel operation with separate voltage and current knobs
- Remote access and control via built-in web server
- Analog programming and monitoring capabilities
- IVI-COM drivers with SCPI command support
Applications
- Automated test equipment (ATE) systems
- Laboratory power requirements
- High-current DC power applications
- Device burn-in and production testing
- Electronics manufacturing and research
Included Accessories
- Certificate of calibration
Specifications
| Feature | Parameter |
| DC Output Ratings | Voltage: 100V Current: 33A Power: 3300W |
| Programming Accuracy | Voltage: 0.05% + 50mV Current: 0.1% + 66mA |
| Output Ripple and Noise | CV p-p: 100mV CV rms: 25mV |
| N8739A | 100 V33 A3300 W |
