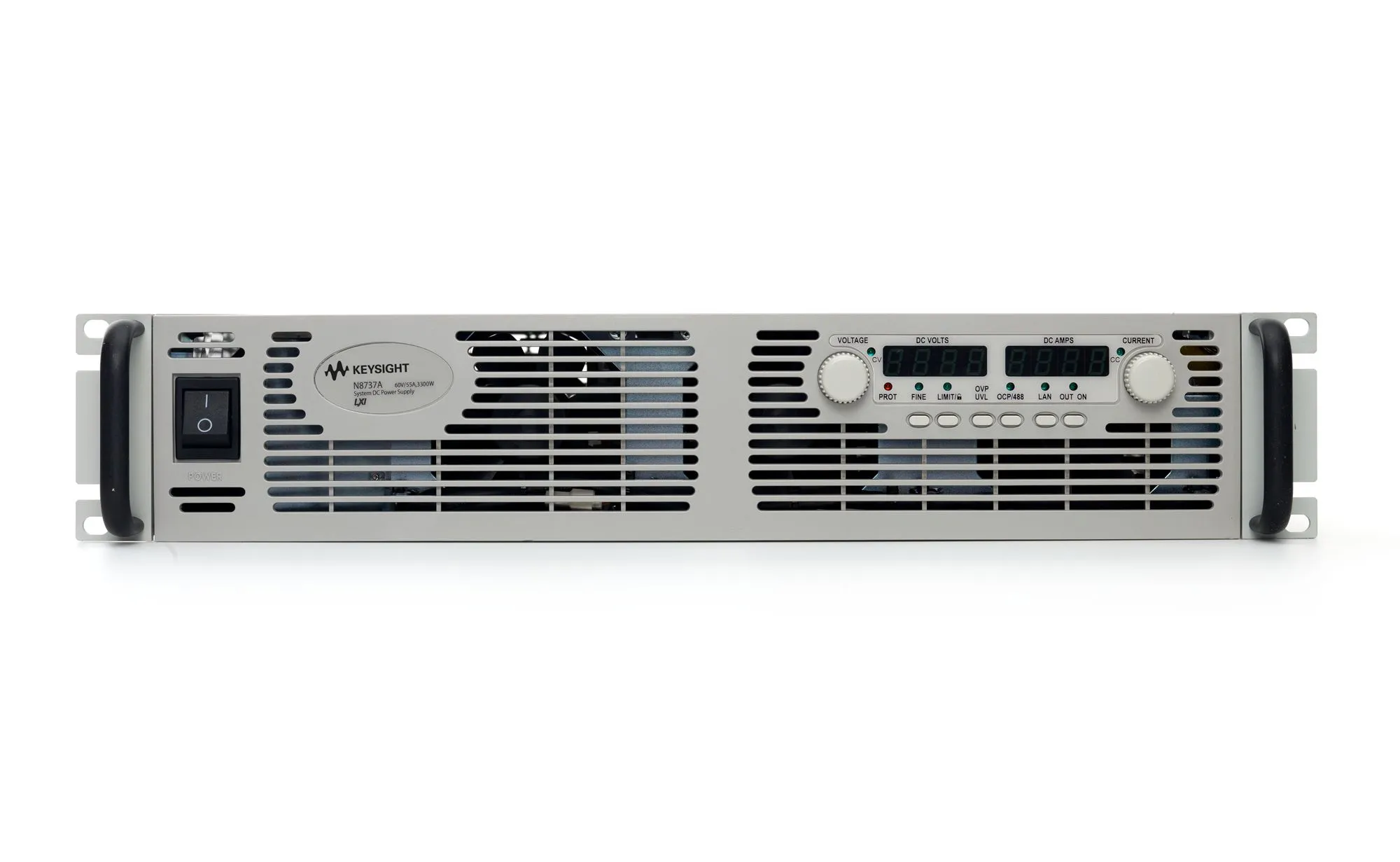

Keysight N8737A DC Power Supply
Request a quote
Keysight N8737A — 60V, 55A programmable DC power supply in compact 2U package with low noise output and LAN/USB/GPIB interfaces.
Product details
| Model | N8737A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8737A is a programmable 60V, 55A DC power supply delivering 3300W in a compact 2U package. Part of the N8700 series, it features low noise output (8 mV RMS), front-to-back airflow for easy rack mounting, and comprehensive protection including overvoltage, overcurrent, and overtemperature safeguards.
Key Features
- 60V output, 55A current capacity, 3300W power
- Low output noise: 8 mV RMS (60 mV p-p)
- Programming accuracy: 0.05% + 30 mV (voltage), 0.1% + 110 mA (current)
- Compact 2U package with front-to-back airflow for easy rack mounting
- LAN (LXI-Core), USB, and GPIB interfaces
- Simple front-panel operation with separate knobs for voltage and current
- Comprehensive protection: overvoltage, overcurrent, and overtemperature
- Connect up to 4 units in parallel for higher current
- Flexible AC input options: 208V, 230V, or 400V
- Standard IVI-COM drivers with SCPI support
Applications
- Automated test equipment and ATE systems
- Research and development laboratories
- Industrial power applications
- Test systems requiring low-noise, stable DC power
Specifications
| Feature | Parameter |
| DC Output Ratings | Voltage: 60V Current: 55A Power: 3300W |
| Programming Accuracy | Voltage: 0.05% + 30mV Current: 0.1% + 110mA |
| Output Ripple and Noise | CV p-p: 60mV CV rms: 8mV |
| N8737A | 60 V55 A3300 W |
