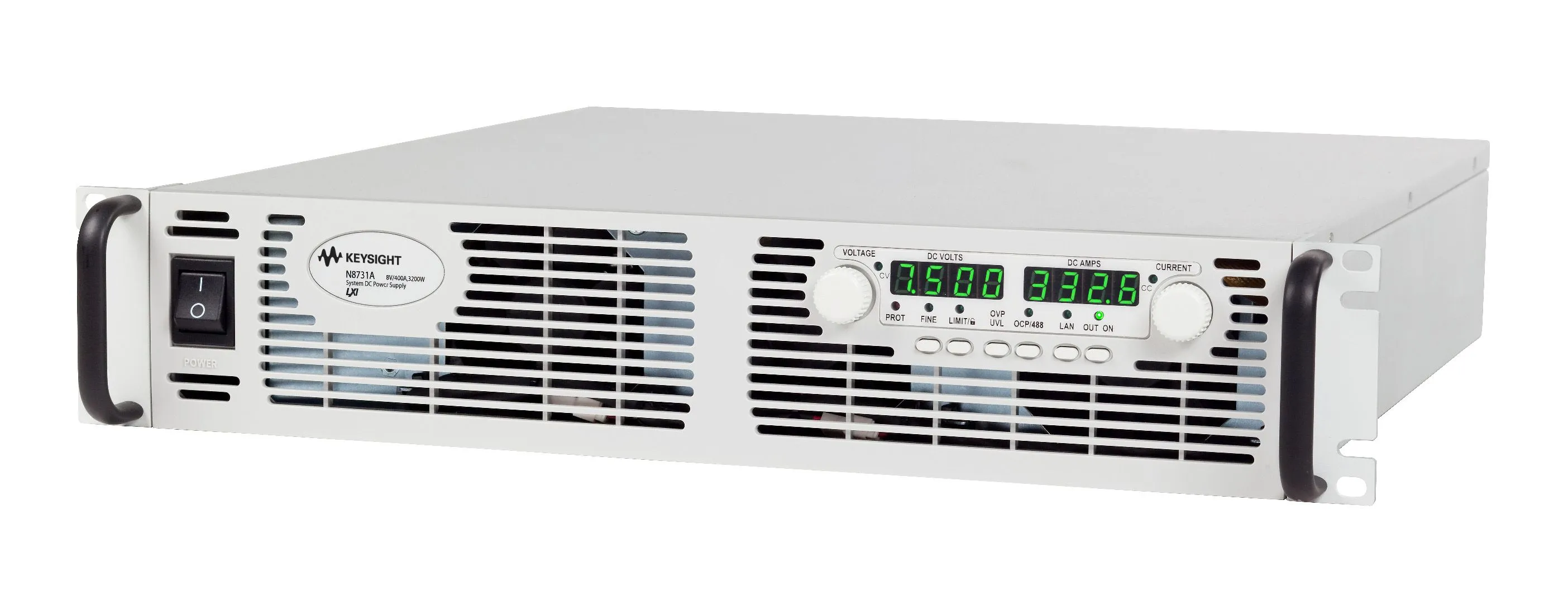

Keysight N8736A DC Power Supply
Request a quote
Keysight N8736A is a 2U programmable DC power supply with 40V, 85A output, 3.4kW power, ultra-low noise (8mVrms), and flexible AC input options.
Product details
| Model | N8736A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8736A is a programmable single-output DC power supply in the N8700 series, delivering 40V at 85A with 3.4kW output power. Its compact 2U design features front-to-back airflow for simplified rack mounting and supports parallel connection of up to four units for increased output current.
Key Features
- Compact 2U high-power density package with front-to-back airflow
- Output: 40V, 85A, 3.4kW with ultra-low noise (8mVrms)
- Simple front-panel operation with separate knobs for voltage and current
- Extensive protection: over-current, over-voltage, under-voltage, and over-temperature
- Modern interfaces: USB, LAN (LXI-Core), GPIB
- Flexible AC input options: 208V, 230V, 400V configurations
- Built-in voltage and current measurement
- Front-panel lock to prevent accidental parameter changes
- Support for parallel connection (up to 4 units) and series connection for extended capability
- Analog programming and monitoring
- Standard IVI-COM drivers with SCPI support
Applications
- Automated Test Equipment (ATE) systems
- Electronic device characterization and testing
- Research and development environments
- Manufacturing test and validation
Specifications
| Maximum Voltage | 40V |
| Maximum Current | 70A |
| Maximum Power | 3000W |
| Channel/Port Count | 1 |
| Phases | 1 |
