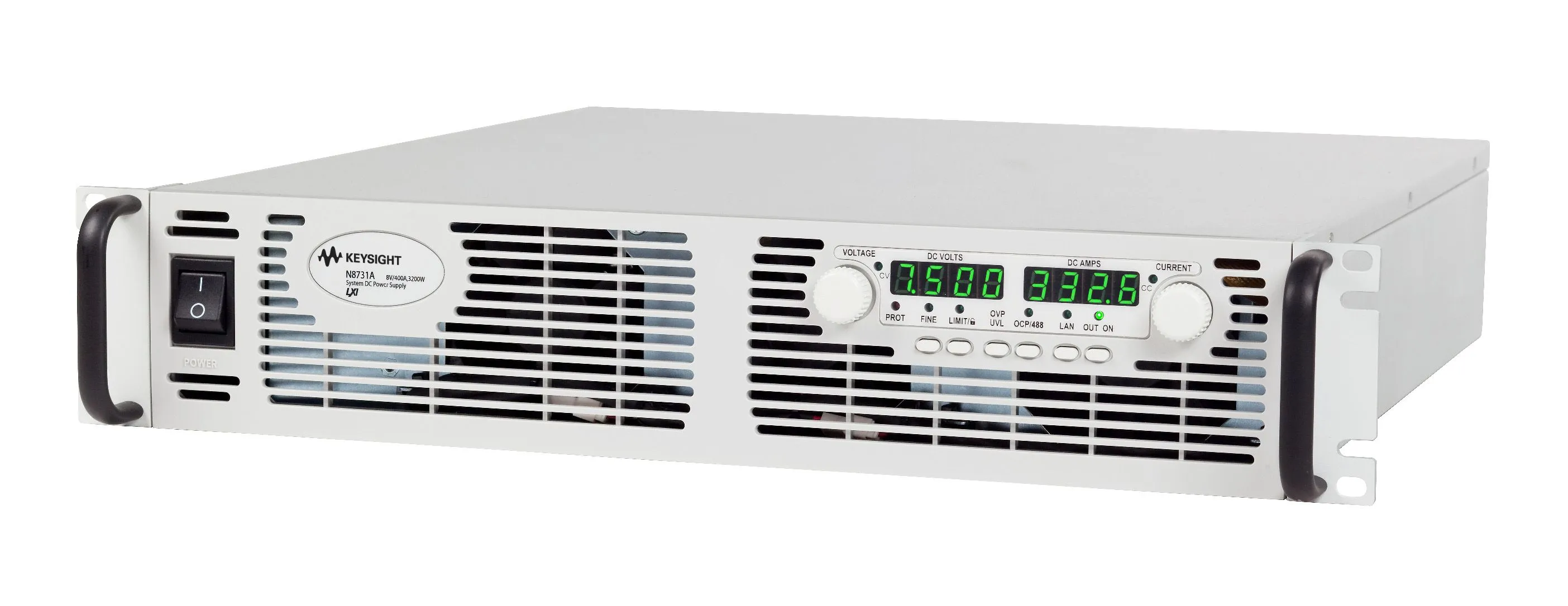

Keysight N8735A DC Power Supply
Request a quote
Keysight N8735A is a compact 3.3 kW DC power supply with 30V/110A output, 0.05% accuracy, and LAN/USB/GPIB interfaces for test and ATE applications.
Product details
| Model | N8735A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8735A is a programmable single-output DC power supply delivering 30V at 110A with 3.3 kW output power. Part of the N8700 series, it combines a compact 2U rack-mount form factor with low-noise, high-density design suitable for automated test equipment (ATE) and laboratory applications.
Key Features
- Output: 30V, 110A, 3300W
- Programming accuracy: 0.05% + 15mV voltage, 0.1% + 220mA current
- Low noise output: 8mV rms, 60mV peak-to-peak
- Compact 2U package with front-to-back airflow for flexible rack mounting
- Multiple communication interfaces: LAN (LXI), USB, GPIB, and analog programming
- Built-in voltage and current measurement
- Complete protection: overvoltage, overcurrent, and overtemperature
- Flexible configuration: stack up to 4 units in parallel or 2 units in series for higher output
Applications
- Automated test equipment (ATE) and test stands
- Component and subsystem testing
- Battery charging and conditioning
- Laboratory power delivery applications
Included Accessories
- Certificate of calibration
Specifications
| Feature | Parameter |
| DC Output Ratings | Voltage: 30 V Current: 110 A Power: 3300 W |
| Programming Accuracy | Voltage: 0.05% + 15 mV Current: 0.1% + 220 mA |
| Output Ripple and Noise | CV p-p: 60 mV CV rms: 8 mV |
| N8735A | 30 V110 A3300 W |
