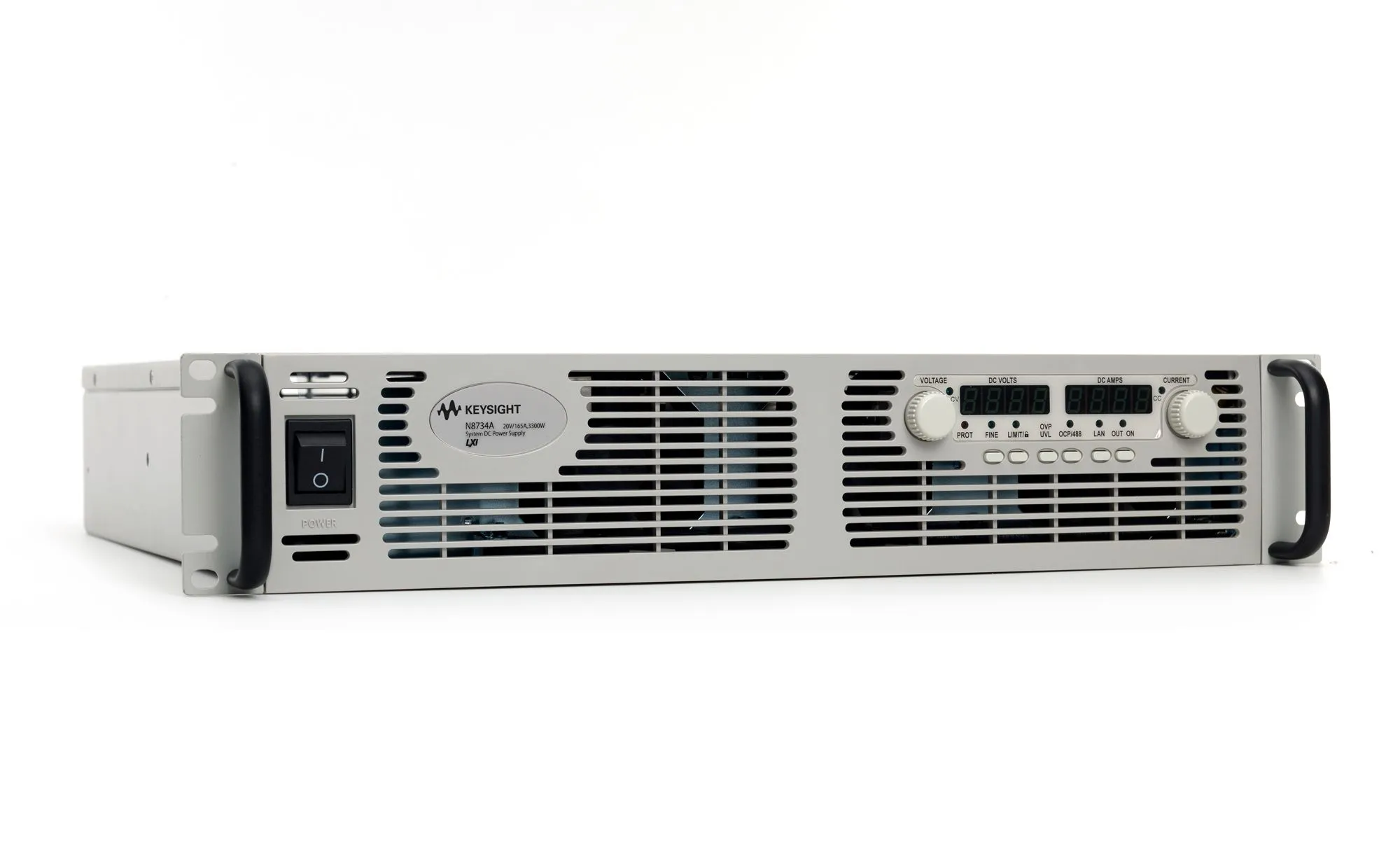

Keysight N8734A DC Power Supply
Request a quote
Keysight N8734A is a 20V, 165A, 3.3kW single-output DC power supply in a compact 2U package with low noise output and extensive protection.
Product details
| Model | N8734A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8734A is a 20V, 165A, 3300W single-output programmable DC power supply in a compact 2U package. Part of the N8700 series, it delivers stable power with low noise, making it ideal for automated test equipment (ATE) racks and similar applications. The compact design with front-to-back airflow allows stacking without additional space above or below.
Key Features
- Compact high-power density 2U package
- Low noise output: as low as 8 mVrms
- Extensive device protection: overcurrent, overvoltage, and under-voltage
- Simple front panel operation with separate knobs for voltage and current
- Modern I/O: USB, LAN (LXI-Core), and GPIB
- Front-to-back airflow simplifies rack mounting
- Power supply protection from overtemperature
- Connect up to 4 units in parallel for higher current
- Flexible AC input options: 208V, 230V, or 400V
Applications
- Automated test equipment (ATE) systems
- Mid-range voltage testing and measurement
- Rack-mounted test systems
- Multi-unit parallel configurations for increased output current
Specifications
| Feature | Parameter |
| DC Output Ratings | Voltage: 20V Current: 165A Power: 3300W |
| Programming Accuracy | Voltage: 0.05% + 10mV Current: 0.1% + 330mA |
| Output Ripple and Noise | CV p-p: 60mV CV rms: 8mV |
| N8734A | 20 V165 A3300 W |
