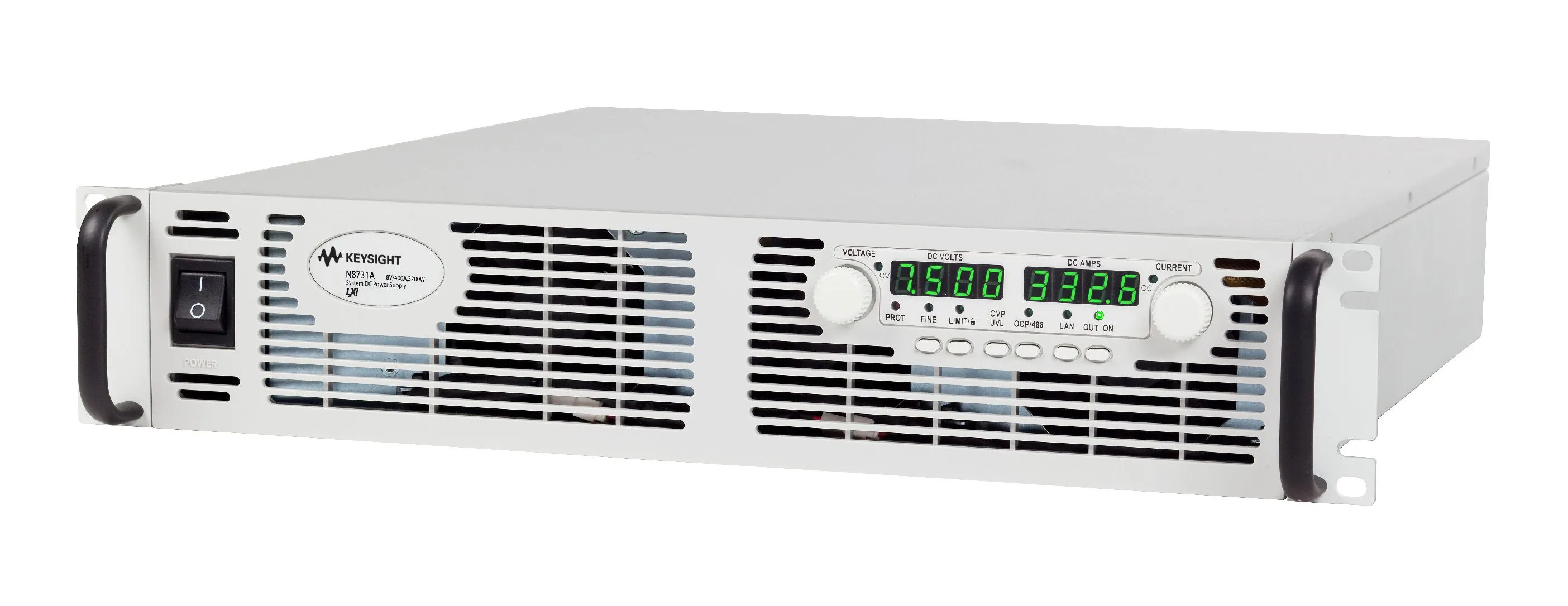

Keysight N8733A DC Power Supply
Request a quote
Keysight N8733A is a 15V, 220A, 3.3kW single-output DC power supply in a compact 2U package with low noise and full protection features.
Product details
| Model | N8733A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8733A is a 15V, 220A, 3300W single-output programmable DC power supply in a compact 2U package. Part of the N8700 series, it delivers high current with low noise, making it ideal for automated test equipment (ATE) racks and similar applications. The compact design with front-to-back airflow allows stacking without additional space above or below.
Key Features
- Compact high-power density 2U package
- Low noise output: as low as 8 mVrms
- Extensive device protection: overcurrent, overvoltage, and under-voltage
- Simple front panel operation with separate knobs for voltage and current
- Modern I/O: USB, LAN (LXI-Core), and GPIB
- Front-to-back airflow simplifies rack mounting
- Power supply protection from overtemperature
- Connect up to 4 units in parallel for higher current
- Flexible AC input options: 208V, 230V, or 400V
Applications
- Automated test equipment (ATE) systems
- High-current testing and measurement
- Rack-mounted test systems
- Multi-unit parallel configurations for increased output current
Specifications
| Feature | Parameter |
| DC Output Ratings | Voltage: 15V Current: 220A Power: 3300W |
| Programming Accuracy | Voltage: 0.05%+7.5mV Current: 0.1%+440mA |
| Output Ripple and Noise | CV p-p: 60mV CV rms: 8mV |
| N8733A | 15 V220 A3300 W |
