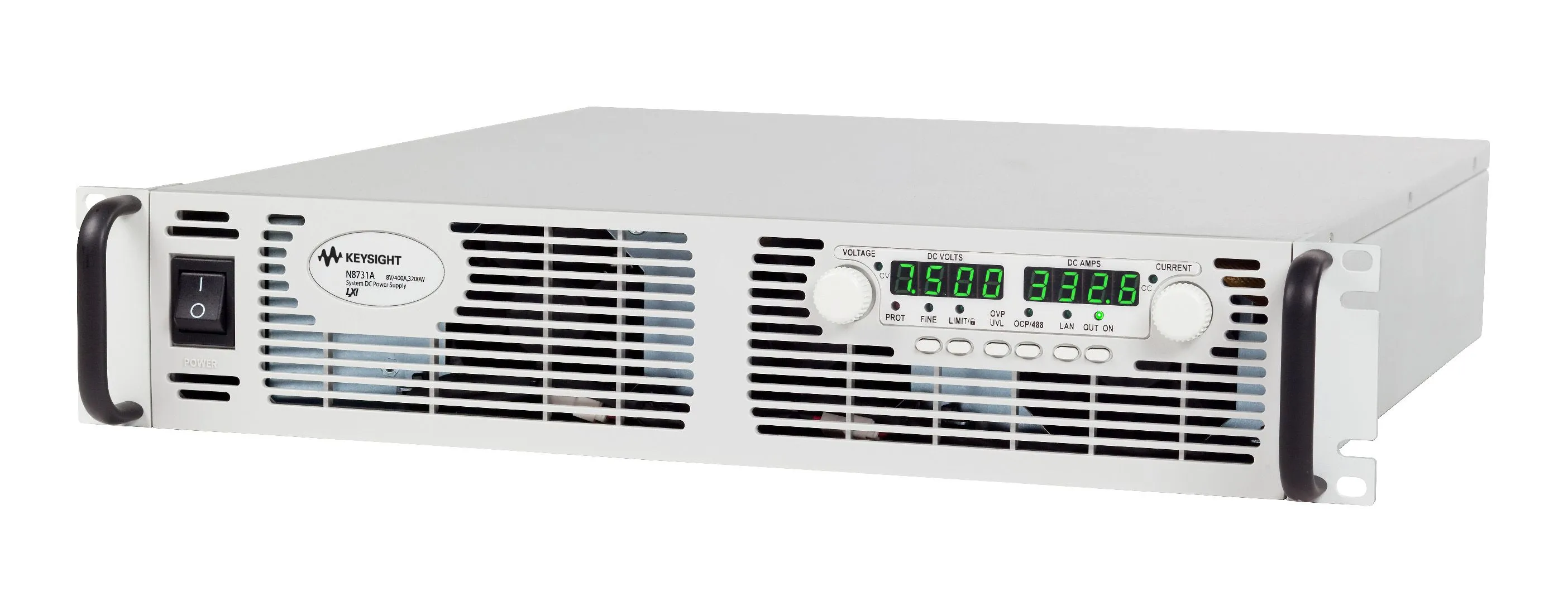

Keysight N8732A DC Power Supply
Request a quote
Keysight N8732A — 2U DC power supply with 10V, 330A output (3.3kW), ultra-low noise (8mV rms), and modern interfaces for ATE applications.
Product details
| Model | N8732A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8732A is a single-output DC power supply in the N8700 series, engineered for high-current applications in automated test equipment. Delivering 10V at 330A (3.3kW), it combines compact size with exceptional power density in a 2U rack format. The intelligent front-to-back airflow design enables seamless integration into standard test racks.
Key Features
- Compact 2U high-density package for efficient rack integration
- DC Output: 10V, 330A, 3300W
- Ultra-low noise: 8mV rms, 60mV peak-to-peak
- Programming accuracy: Voltage 0.05% + 5mV, Current 0.1% + 660mA
- Multiple interface options: USB, LAN (LXI-Core), GPIB
- Extensive device protection: overcurrent, overvoltage, and undertemperature
- Separate rotary knobs for independent voltage and current adjustment
- Built-in web server for remote monitoring and control
- Parallel operation: up to 4 units for higher current requirements
- Series operation: up to 2 units for higher voltage output
- Flexible AC input options: 208V, 230V, or 400V
Applications
- Automated test equipment (ATE) and semiconductor testing
- High-current DC power for manufacturing and production test systems
- Component validation and burn-in testing
- Electronics manufacturing and quality assurance
Specifications
| Maximum Voltage | 10V |
| Channel/Port Count | 1 |
| Phases | 1 |
