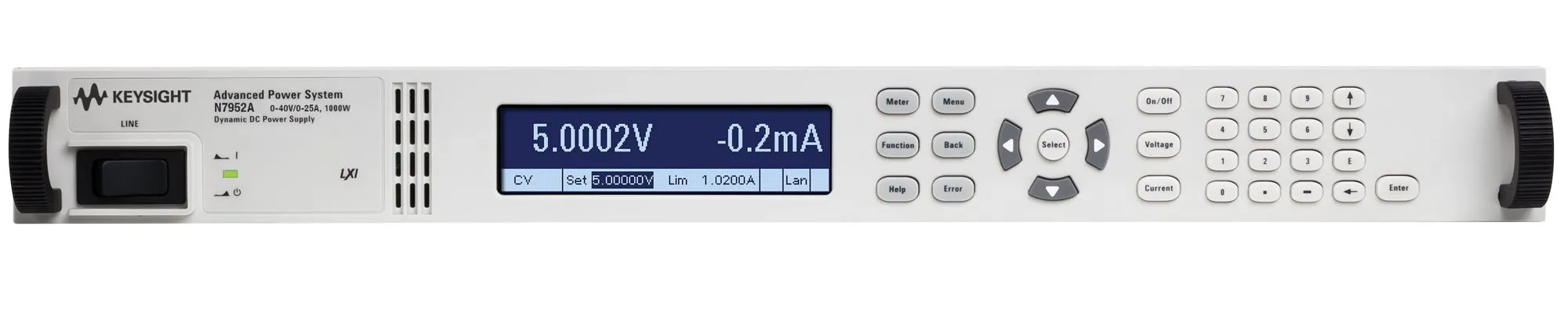

Keysight N7952A Advanced Power System DC Supply
Request a quote
Keysight N7952A is a 1 kW, 40V/25A Advanced Power System supply featuring dynamic sourcing, precision measurement, and two-quadrant operation capability for ATE power testing.
Product details
| Model | N7952A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight Advanced Power System (APS) N7952A is a 1 kW DC power supply designed for automated test equipment (ATE) applications requiring high-speed dynamic sourcing and precision measurements. The N7952A delivers 40V at up to 25A and represents the mid-high-range option in the N7900 Series, which offers all capabilities of the N6900 series plus dynamic output power, dynamic measurements, and higher accuracy.
Key Features
- 1 kW continuous power (40V, 25A)
- Industry-leading speed with <2ms command processing and up to 500 µs programming time
- Dual voltage and current measurement with DMM-like accuracy
- Power, peak power, watt-hour, and amp-hour measurements
- Optional two-quadrant operation with N7909A power dissipater units
- 10% rated current two-quadrant operation without dissipater
- Paralleling capability up to 10 kW with equal current sharing
- Versatile I/O: LAN (LXI Core), USB, and GPIB
Applications
- Automated test equipment power supply
- Device power profiling and characterization
- Battery and energy storage device testing
- Power management IC testing
Included Accessories
- Power cord
- GPIB cable
Specifications
| Maximum Voltage | 40V |
| Maximum Current | 25A |
| Maximum Power | 1000W |
| Channel/Port Count | 1 |
| Phases | 1 |
| Voltage Range Selector | 30-49.9 |
| Output Voltage | 40 V |
| Current Range Selector | 20-29.9 |
| Output Current | 25 A |
| Power Range Selector | 1,000-2,499 |
| Power Rating | 1 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 240 VAC |
| Series | N7900 Series |
| Display | LCD |
| Interface | GPIB,USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 1U |
