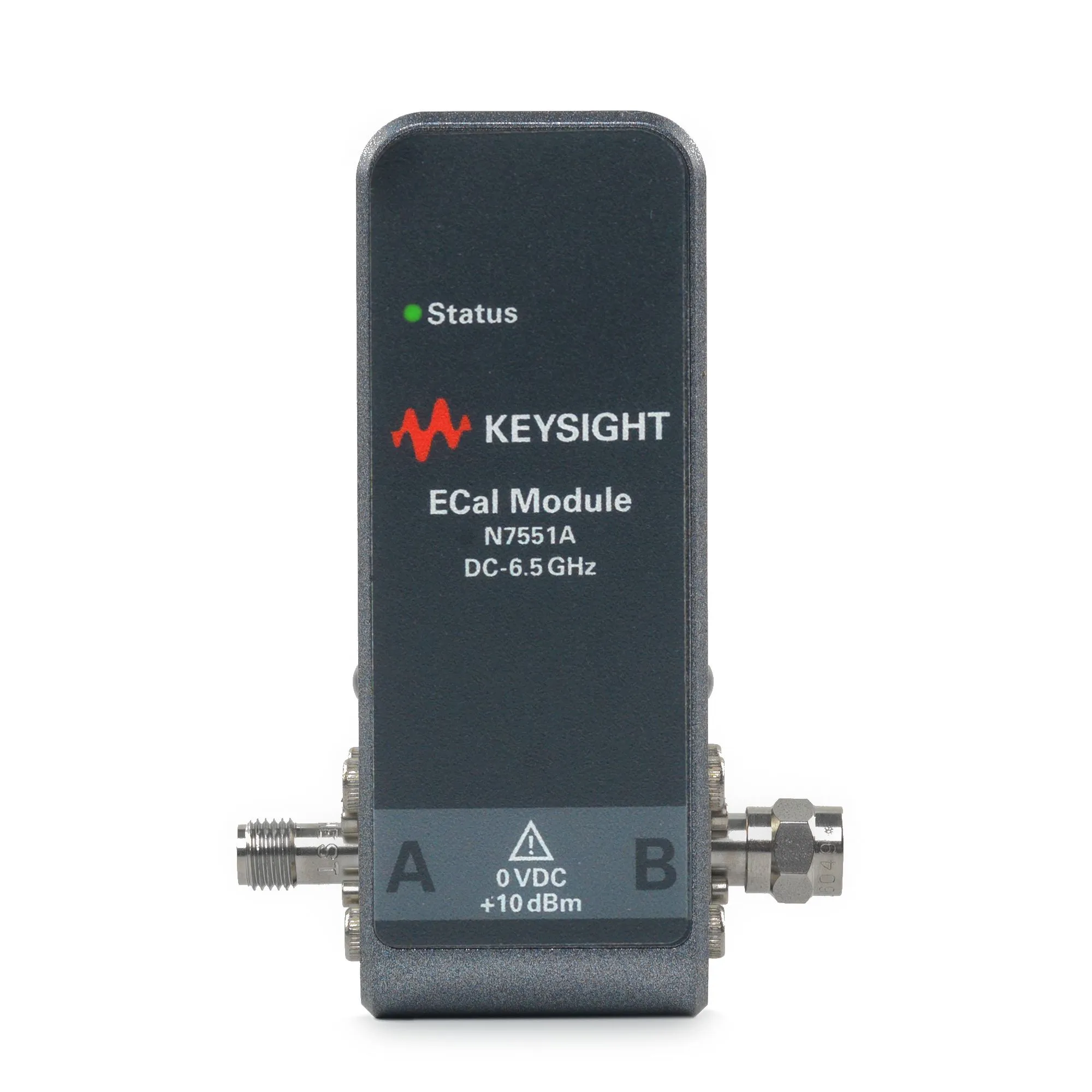

Keysight N7551A Electronic Calibration Module
Keysight N7551A 2-port electronic calibration module with DC-6.5 GHz coverage, support for Type-N and 3.5 mm connectors, and zero wait time for faster calibration.
Product details
| Model | N7551A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N7551A is a 2-port electronic calibration (ECal) module from the value-line N755xA family. It provides fast, easy, and accurate calibration for vector network analyzers with frequency coverage from DC to 6.5 GHz. The module supports both Type-N and 3.5 mm connectors with various gender combinations available. Compared to traditional mechanical calibration kits, it cuts calibration time in half and provides zero wait time for faster measurements. The module integrates directly with Keysight PNA-X, PNA, ENA, and PXI vector network analyzers, as well as FieldFox handheld analyzers, via USB 2.0 micro-interface control.
Key Features
- Frequency coverage: DC to 6.5 GHz
- Supports Type-N and 3.5 mm connectors
- Multiple connector gender configurations available
- 2-port electronic calibration module
- Zero wait time for faster calibration
- Half the calibration time of mechanical kits
- Smaller, lighter design
Applications
- Calibration of Keysight PNA-X vector network analyzers
- Calibration of PNA, ENA, and PXI vector network analyzers
- FieldFox handheld analyzer calibration
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | DC |
