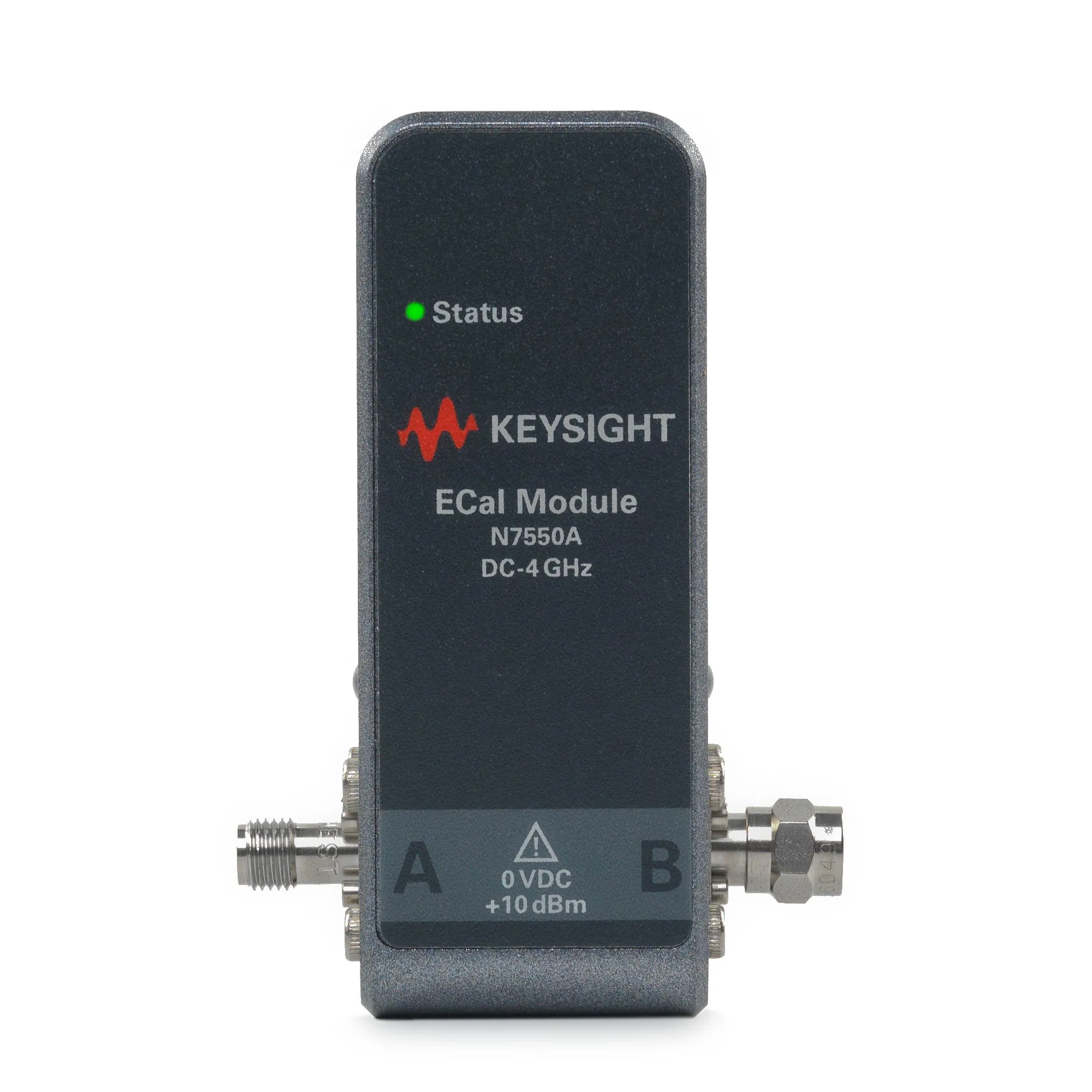

Keysight N7550A Electronic Calibration Module
Request a quote
Keysight N7550A is a 2-port electronic calibration module for vector network analyzers, covering DC to 4 GHz with faster zero-wait-time calibration.
Product details
| Model | N7550A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N7550A is a 2-port electronic calibration (ECal) module designed for rapid calibration of Keysight vector network analyzers (VNAs). It covers frequencies from DC to 4 GHz and provides faster calibration with zero wait time compared to traditional mechanical calibration kits. The module is controlled via firmware on the instrument with USB 2.0 connectivity, providing a fully integrated calibration solution.
Key Features
- Frequency coverage: DC to 4 GHz
- 2-port ECal module with faster calibration
- Zero wait time for immediate measurement after calibration
- Supports Type N and 3.5 mm connectors
- Compatible with Keysight PNA, PNA-X, ENA, and FieldFox analyzers
- USB 2.0 micro-interface for easy connection
- Value-line product with cost-effective replacement option
- Firmware-controlled calibration via instrument
Applications
- Rapid calibration of vector network analyzers
- RF and microwave component testing and characterization
- Production testing and field measurements
- Design and troubleshooting of RF circuits
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | DC |
| Form Factor | Accessory |
