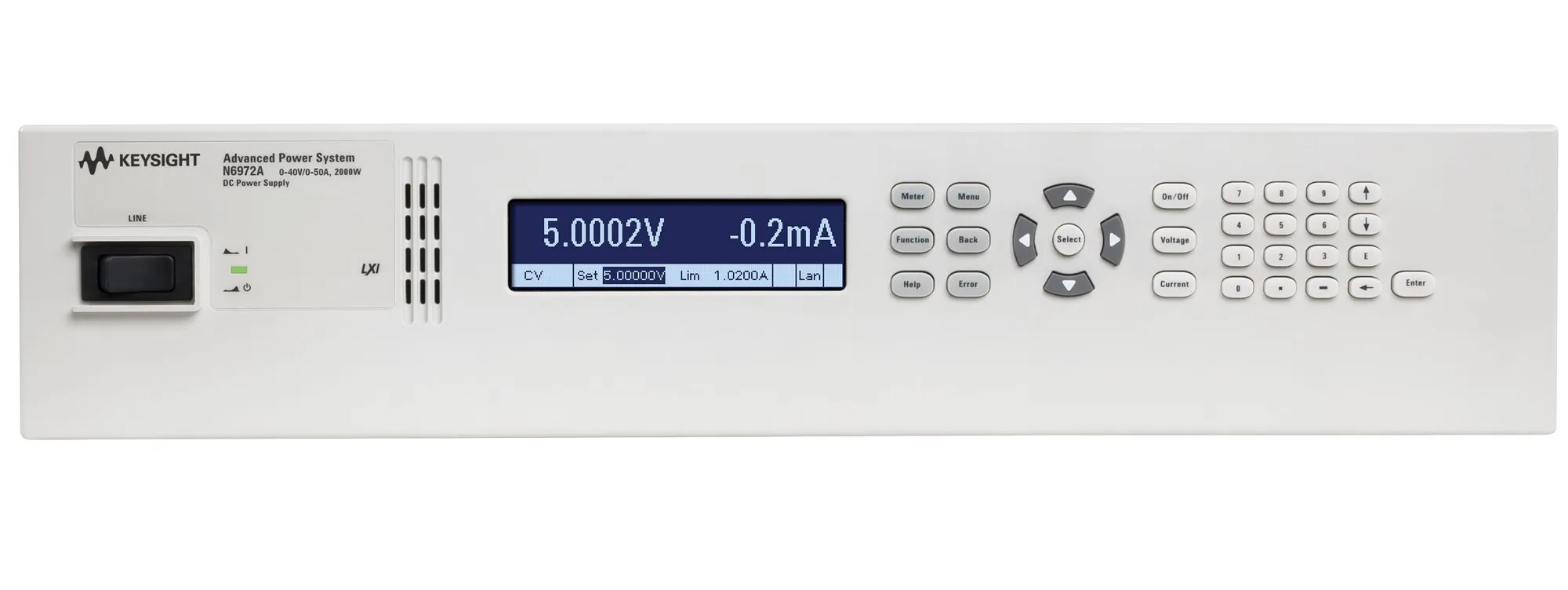

Keysight N6972A Advanced Power System DC Supply
Request a quote
Keysight Advanced Power System DC supply featuring VersaPower architecture, sub-2ms command processing, integrated measurement, and parallel capability to 10 kW.
Product details
| Model | N6972A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight Advanced Power System (APS) is a compact DC power supply designed for ATE applications, featuring VersaPower architecture for fast command processing and integrated measurement. It delivers synchronized voltage and current control with measurement capability for power testing and device characterization.
Key Features
- VersaPower architecture with command processing under 2ms
- Fast programming speeds up to 500 µs
- Dual voltage and current measurement channels
- Power, peak power, watt hour, and amp hour measurements
- Two-quadrant operation capability
- Parallel connection support with equal current distribution
- Optional event recording and data logging
Applications
- Automated test equipment (ATE) power systems
- Power storage and battery testing
- Device power profile characterization
- Multi-supply test systems
Specifications
| Maximum Voltage | 40V |
| Maximum Current | 50A |
| Maximum Power | 2000W |
| Channel/Port Count | 1 |
| Phases | 1 |
| Voltage Range Selector | 30-49.9 |
| Output Voltage | 40 V |
| Current Range Selector | 50-99.9 |
| Output Current | 50 A |
| Power Range Selector | 1,000-2,499 |
| Power Rating | 2 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 240 VAC |
| Series | N6900 Series |
| Display | LCD |
| Interface | GPIB,USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 2U |
