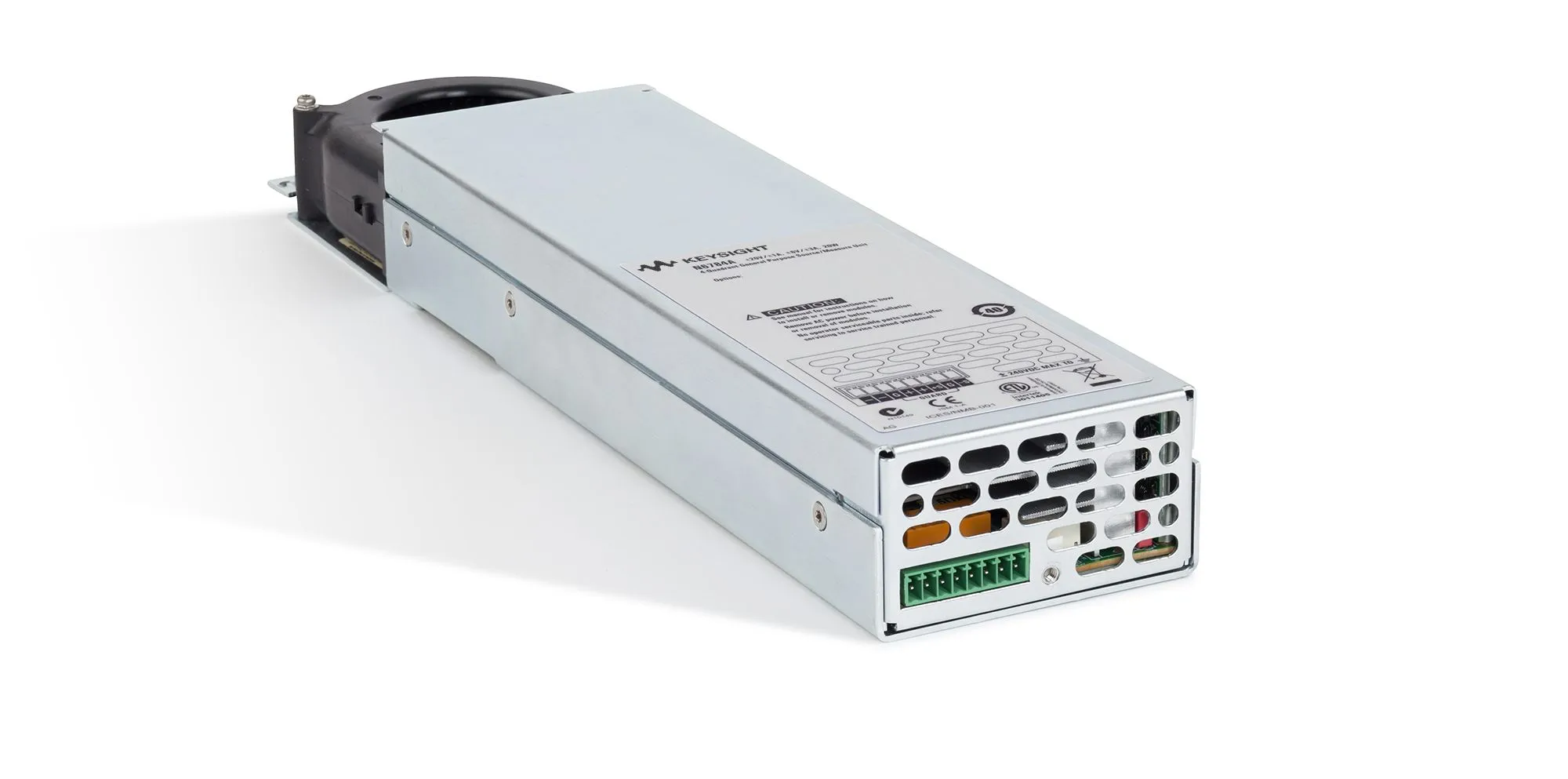

Keysight N6784A Source/Measure Unit
Request a quote
Keysight N6784A is a 4-quadrant general-purpose source/measure unit with ±20V/±3A output, glitch-free operation, and 0.025% voltage programming accuracy.
Product details
| Model | N6784A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6784A is a 4-quadrant general-purpose source/measure unit designed for precision sourcing and measurement applications. With glitch-free operation and support for bipolar voltage/current sourcing and electronic load functionality, it provides versatility for lab bench and test system environments across multiple industries.
Key Features
- Glitch-free sourcing and measurement with range changes up to 150 µF capacitance
- 4-quadrant operation: functions as bipolar power supply or bipolar electronic load
- Four current programming ranges for precise source control down to microamps
- Four current measurement ranges for accurate device characterization
- Fast modulation capability up to 100 kHz to stimulate or load the device under test
- High-speed digitized measurements at 200 kHz for power consumption analysis
- Excellent transient response maintains voltage/current stability during high-speed load changes
Applications
- General-purpose precision sourcing and measurement in research and development
- Test system integration across multiple industries and device types
- Lab bench power supply and electronic load applications
- Device characterization with low-glitch, high-precision output
Specifications
| Maximum Voltage | 20V |
| Maximum Current | 3A |
| Series | N6700 Series |
