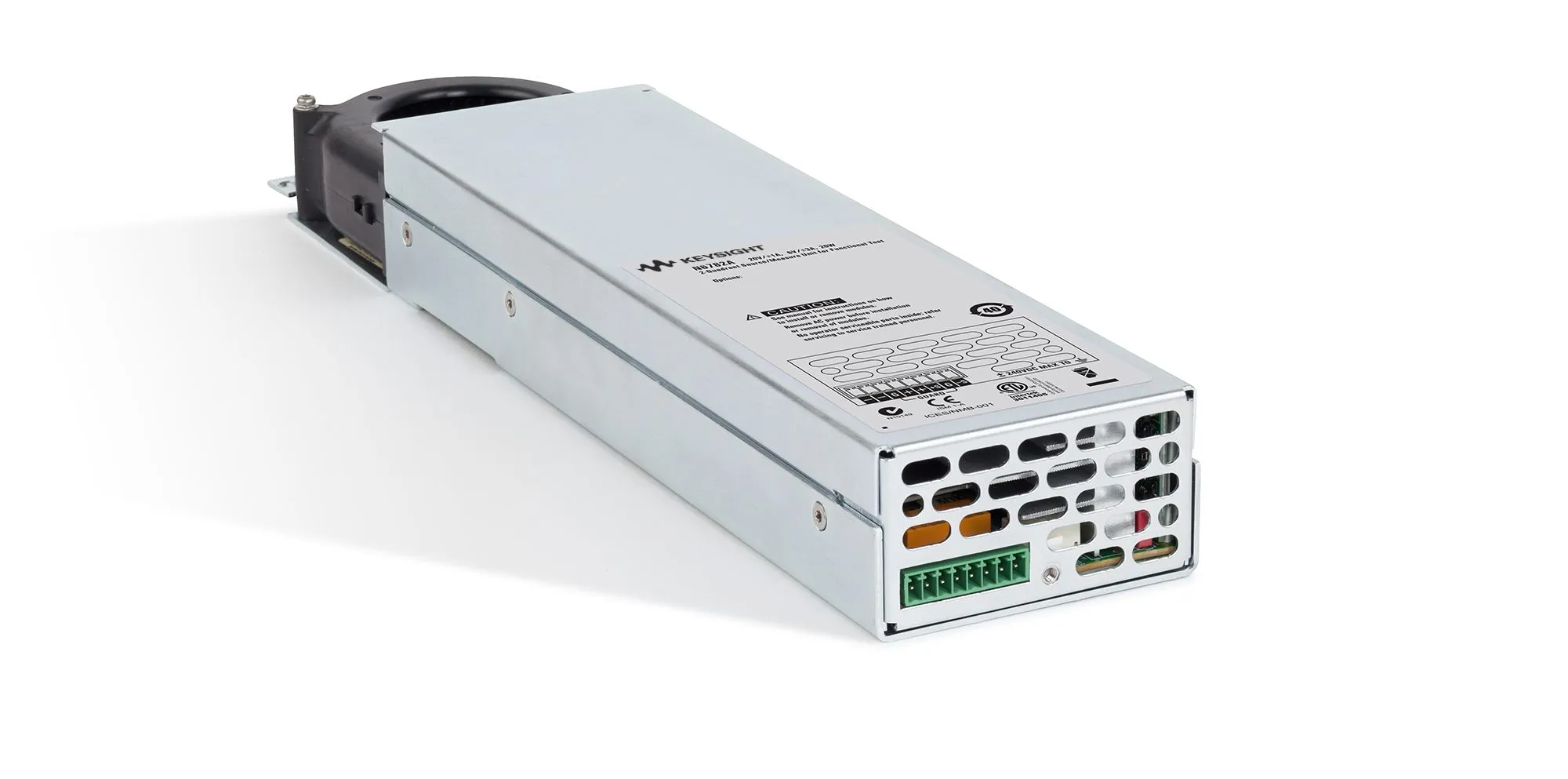

Keysight N6782A 2-Quadrant Source/Measure Unit
Request a quote
Keysight N6782A is a 2-quadrant source/measure unit with 100 kHz modulation and glitch-free sourcing for advanced functional testing of power management devices.
Product details
| Model | N6782A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6782A is a 2-quadrant source/measure unit (SMU) designed for advanced functional testing of power management devices. It combines sourcing and sinking capabilities with high-speed modulation up to 100 kHz, enabling complete testing of device input stages and output loads. The glitch-free operation and fast digitized measurements make it ideal for characterizing DC/DC converters, power management ICs, and power amplifiers.
Key Features
- 2-quadrant operation: source and sink current seamlessly
- Glitch-free sourcing and measurement with seamless range transitions
- Output voltage: up to 20 V with four current measurement ranges
- Output current: ±3 A maximum
- Output power: 20 W
- Voltage programming accuracy: 0.025% + 1.8 mV at 20 V range
- Current programming accuracy: 0.04% + 300 µA at 3 A range
- Fast DC modulation: output changes in 10 µs or at 100 kHz into resistive loads
- Built-in 200 kHz digitizer for high-speed measurements capturing data every 5 µs
- Excellent transient response for voltage and current stability during load changes
Applications
- DC/DC converter functional testing and characterization
- Power management IC development and validation
- Power amplifier and power stage testing
- Fast load transient response verification
- Advanced power device development and functional validation
Specifications
| Maximum Voltage | 20V |
| Maximum Current | 3A |
| Channel/Port Count | 1 |
| Series | N6700 Series |
| Output Current | 3 A |
| Output Voltage | 20 V |
| Power Rating | 20 W |
