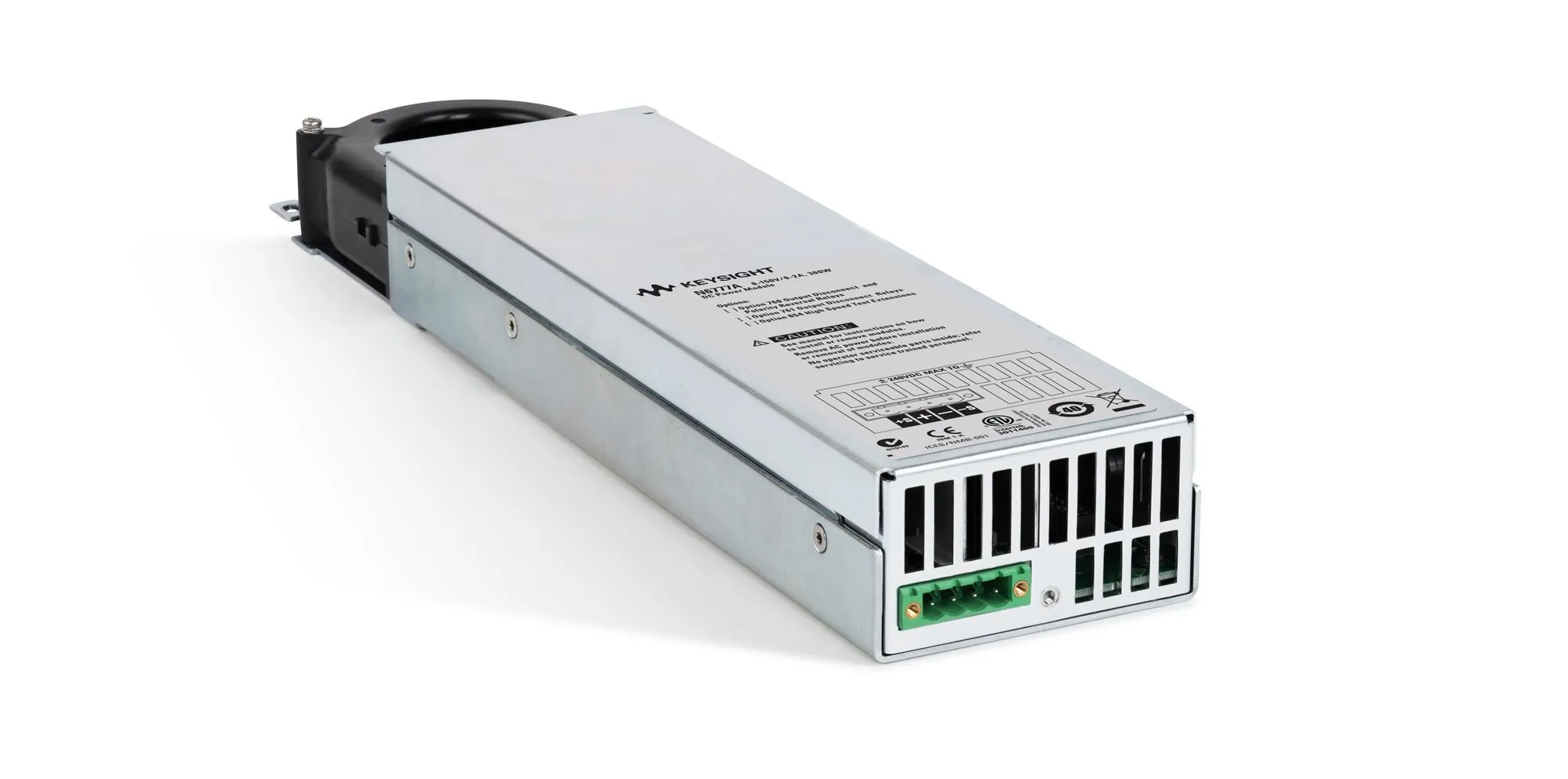

Keysight N6777A DC Power Module
Request a quote
Keysight N6777A 300W DC power module with 150V/2A output, 0.1% voltage accuracy, and low ripple for ATE system testing.
Product details
| Model | N6777A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6777A is a 300W DC power module designed for automated test equipment (ATE) systems and bench testing. It provides programmable voltage and current outputs with integrated measurement and comprehensive protection features, making it ideal for powering devices under test or ATE system resources at an economical price point.
Key Features
- Programmable output voltage: 0 to 150V
- Programmable output current: 0 to 2A
- Output power: 300W maximum
- Voltage accuracy: 0.1% + 150 mV
- Current accuracy: 0.15% + 30 mA
- Low ripple and noise: 27 mV RMS (voltage), 6 mA RMS (current)
- Overvoltage, overcurrent, and overtemperature protection
- Fast programming: up to 1.5 ms with resistive load
- Multiple connectivity options: GPIB, LAN, USB, and LXI compliance
- Quick disconnect connector for convenient module swapping
Applications
- Automated test equipment (ATE) systems
- Powering devices under test (DUT)
- ATE system fixture control and resources
- Bench testing and development
Specifications
| Maximum Voltage | 150V |
| Maximum Current | 2A |
| Maximum Power | 300W |
| Channel/Port Count | 1 |
| Power Rating | 300 W |
| Output Voltage | 150 V |
| Output Current | 2 A |
| Series | N6700 Series |
