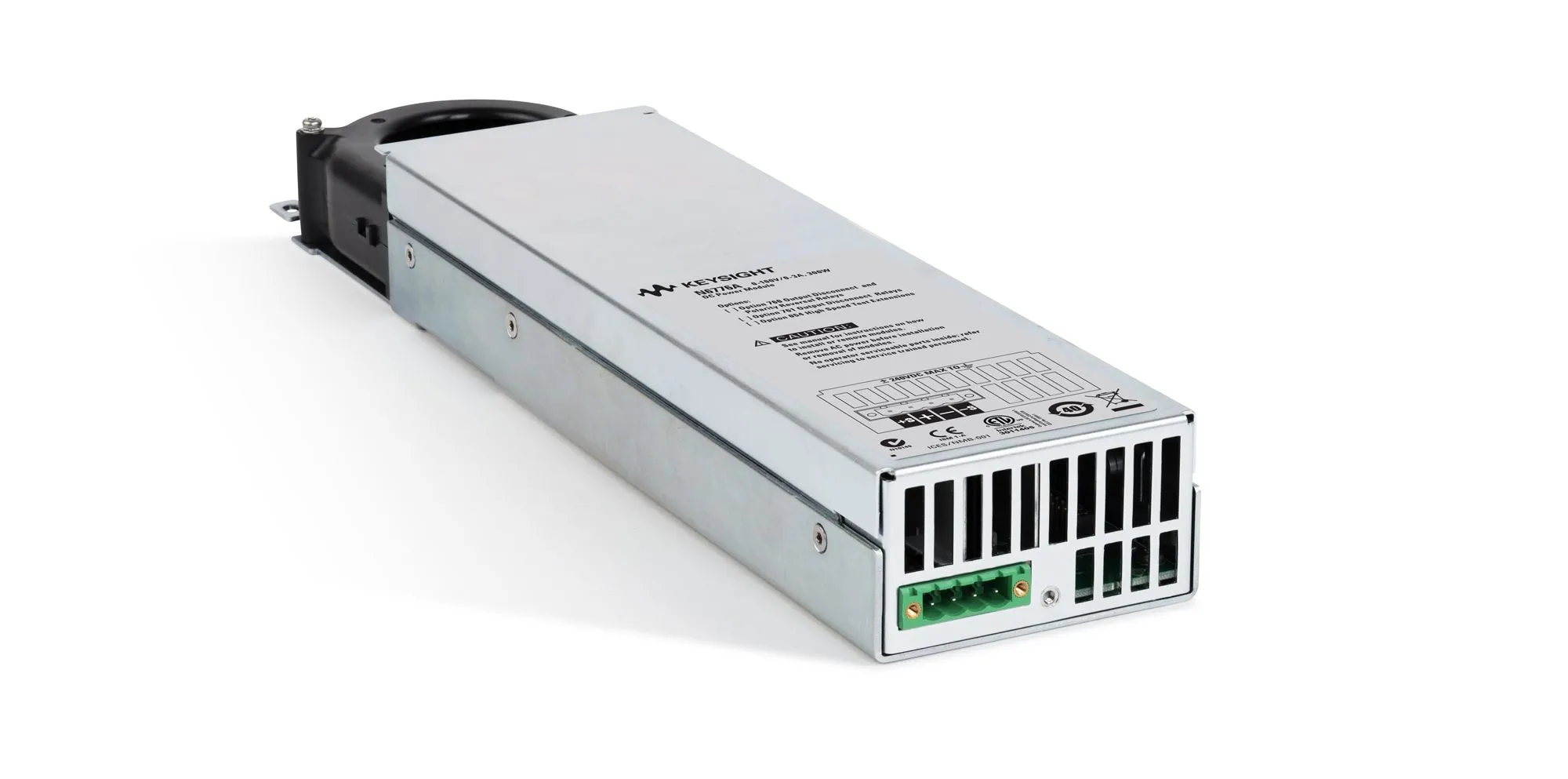

Keysight N6776A DC Power Module
Request a quote
Keysight N6776A is a 300W DC power module (100V/3A) with 0.1% accuracy and low ripple for precise test applications.
Product details
| Model | N6776A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6776A is a 300W high-performance DC power module with precise measurement features and autoranging capabilities. It delivers programmable voltage and current control with exceptional accuracy ideal for demanding laboratory and test applications. The module integrates into the N6700 Low-Profile Modular Power System and N6705 DC Power Analyzer for flexible configurations.
Key Features
- Output voltage: 100V at 3A, 300W maximum power
- Voltage programming accuracy: 0.1% + 100 mV
- Current measurement accuracy: 0.15% + 30 mA
- Ripple and noise: 45 mV peak-to-peak, 18 mV RMS
- Fast up and down-programming: approximately 1.5 ms with resistive load
- Overvoltage, overcurrent, and overtemperature protection
- GPIB, LAN, USB, and LXI compliance
- Quick disconnect connector
Applications
- Precision laboratory testing
- Device characterization and validation
- Automated test equipment (ATE) systems
- Power supply for sensitive electronic devices
Specifications
| Maximum Voltage | 100V |
| Maximum Current | 3A |
| Maximum Power | 300W |
| Channel/Port Count | 1 |
| Power Rating | 300 W |
| Output Voltage | 100 V |
| Output Current | 3 A |
| Series | N6700 Series |
