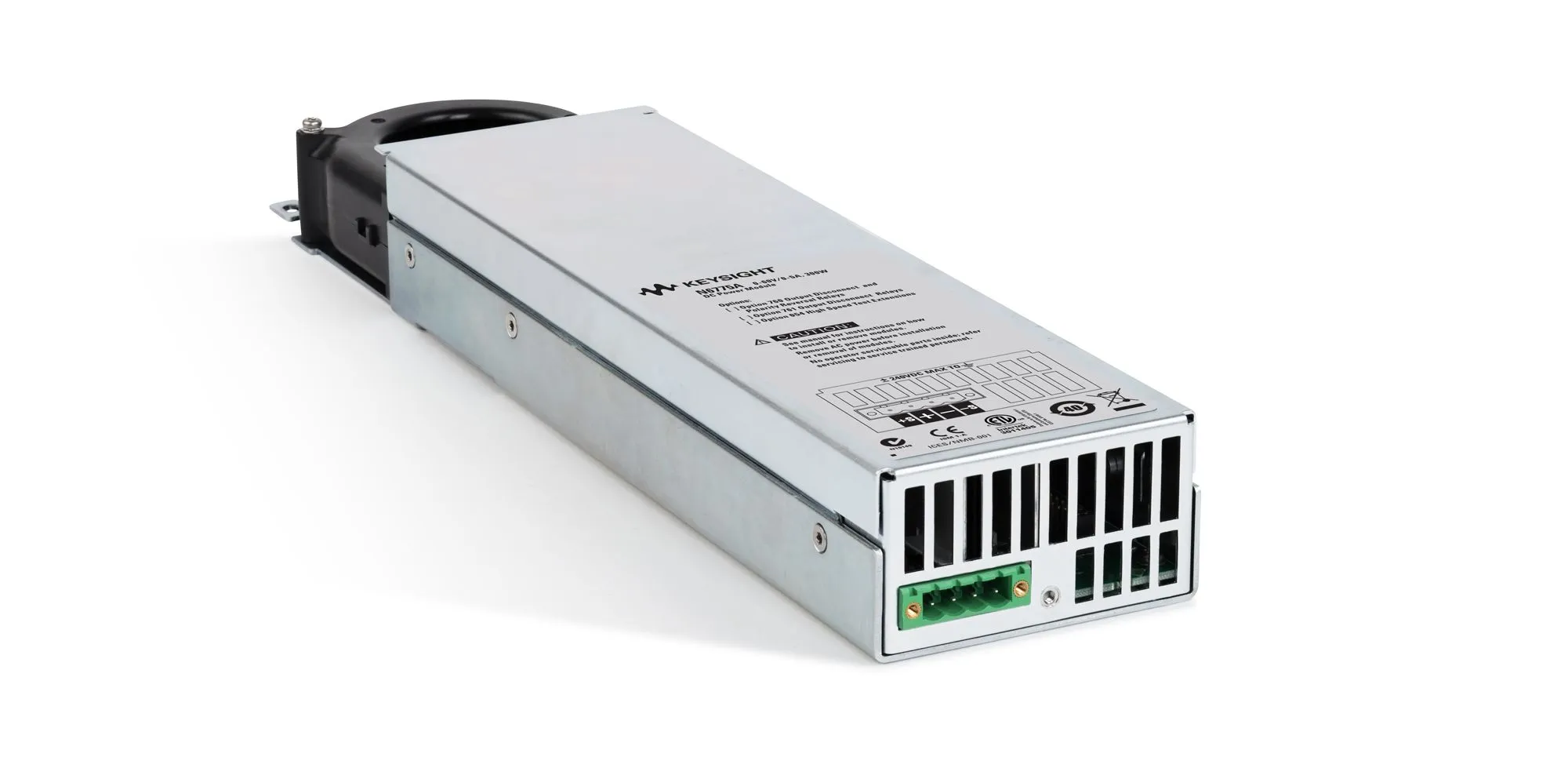

Keysight N6775A DC Power Module
Request a quote
Keysight N6775A is a 300W DC power module with 60V/5A output, delivering 0.1% voltage accuracy and minimal 9mV ripple for precise testing.
Product details
| Model | N6775A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6775A is a 300W programmable DC power module designed for flexible ATE systems and bench testing. It delivers 60V at up to 5A output with programmable voltage and current, measurement capabilities, and comprehensive protection features. The module supports fast up/down programming to keep pace with changing test requirements.
This module integrates into the N6700 Low-Profile Modular Power System (1U high, up to 4 modules) or N6705 DC Power Analyzer. GPIB, LAN, USB, and LXI compliance are standard across all mainframes.
Key Features
- Programmable output: 0 to 60V, 0 to 5A, 300W maximum
- Voltage accuracy: 0.1% + 60mV
- Current measurement accuracy: 0.15% + 60mA
- Ultra-low ripple and noise: 35mV peak-to-peak, 9mV rms
- Fast programming: 1.5ms typical up/down with resistive load
- Overvoltage, overcurrent, and overtemperature protection
- Quick disconnect connector for easy setup
- GPIB, LAN, USB, and LXI interfaces standard
Applications
- Automated test equipment (ATE) for device under test (DUT) power
- Bench testing and device characterization
- ATE system fixture control
- Multi-output systems in modular power configurations
Specifications
| Maximum Voltage | 60V |
| Maximum Current | 5A |
| Maximum Power | 300W |
| Channel/Port Count | 1 |
| Power Rating | 300 W |
| Output Voltage | 60 V |
| Output Current | 5 A |
| Series | N6700 Series |
