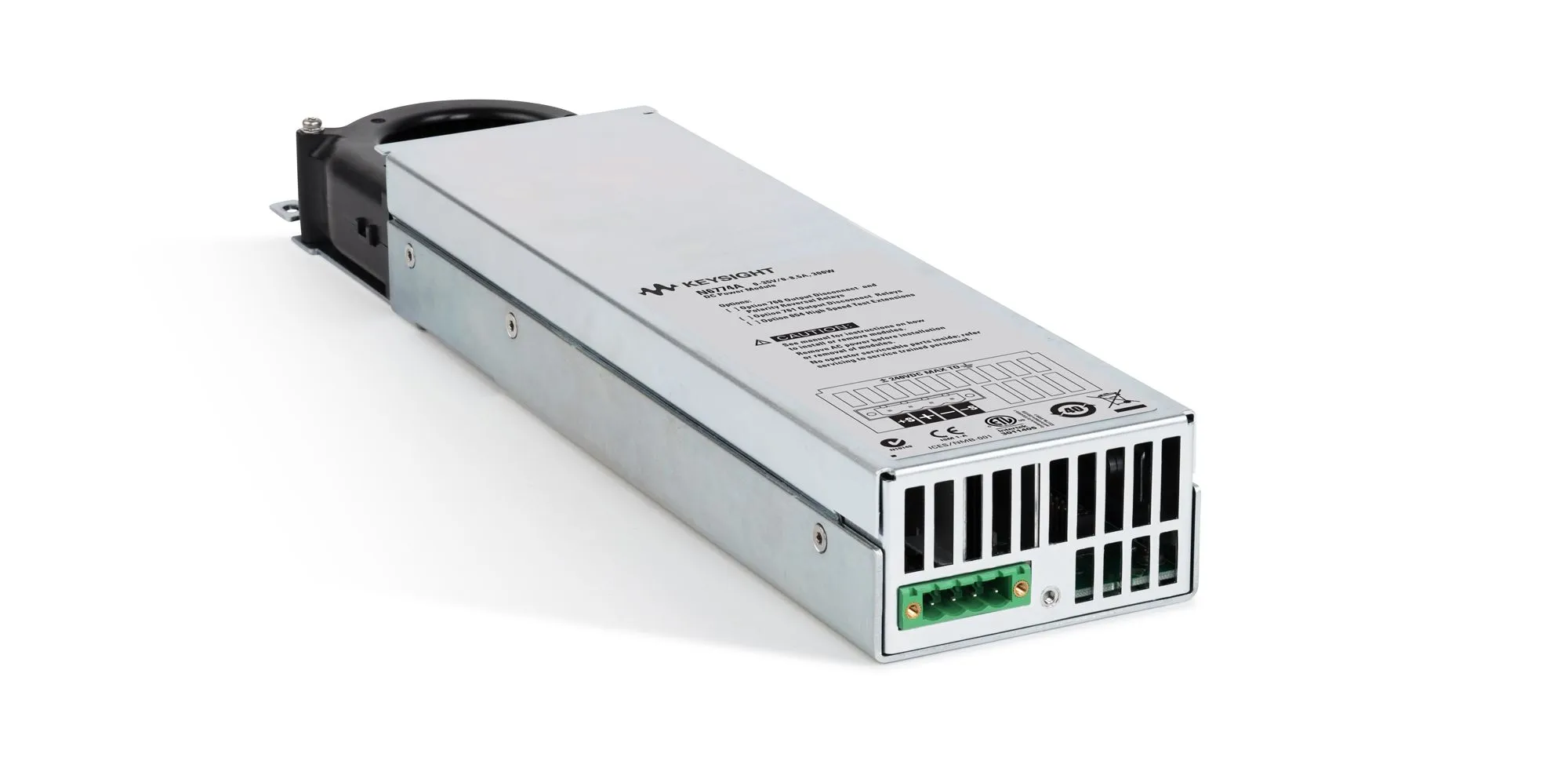

Keysight N6774A DC Power Module
Request a quote
Keysight N6774A is a 300W programmable DC power module with 0-35V/8.5A output, 0.1% voltage accuracy, and fast programming for flexible ATE applications.
Product details
| Model | N6774A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6774A is a 300W programmable DC power module designed for ATE (Automated Test Equipment) systems and bench testing applications. It provides flexible voltage and current outputs with measurement capabilities, protection features, and operates as a standalone unit or within N6700 series mainframes using GPIB, LAN, USB, or LXI connectivity.
Key Features
- Programmable output: 0 to 35V, up to 8.5A, 300W maximum
- Voltage accuracy: 0.1% + 35 mV; current accuracy: 0.15% + 60 mA
- Low noise: 22 mVpp voltage ripple (20 Hz to 20 MHz)
- Fast programming: up to 1.5 ms rise/fall time with resistive load
- Built-in overvoltage, overcurrent, and overtemperature protection
- Quick disconnect connector for convenient module swapping
- GPIB, LAN, USB, and LXI compliance standard
Applications
- Automated Test Equipment (ATE) system power control
- Fixture control and device power delivery
- Bench-top DC power analysis and characterization
- Research and development testing
Specifications
| Maximum Voltage | 35V |
| Maximum Current | 8.5A |
| Maximum Power | 300W |
| Channel/Port Count | 1 |
| Phases | 1 |
| Power Rating | 300 W |
| Output Voltage | 35 V |
| Output Current | 8.5 A |
| Series | N6700 Series |
