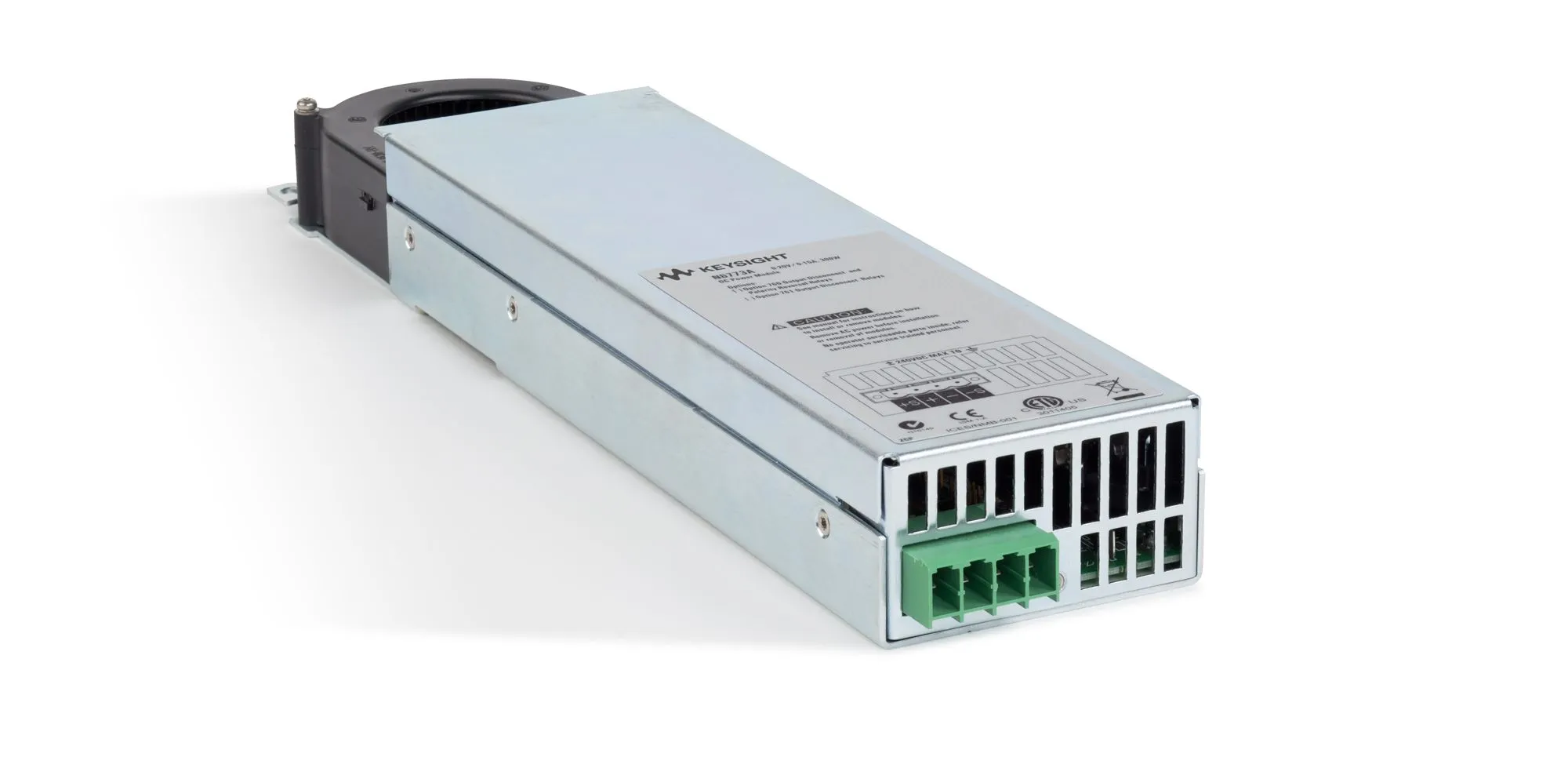

Keysight N6773A DC Power Module
Request a quote
Keysight N6773A — basic 300W DC power module with 0-20V/0-15A output, 0.1% voltage accuracy, and fast programming up to 50 times faster than conventional supplies.
Product details
| Model | N6773A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6773A is a basic 300W DC power module offering programmable voltage and current control at an economical price point. Designed for both automated test equipment (ATE) systems and bench testing, it provides fast programming speeds and built-in protection features, making it suitable for powering devices under test or providing power to ATE system resources.
Key Features
- Output voltage: 0 to 20 V
- Output current: 0 to 15 A
- Maximum power: 300 W
- Fast programming: up to 50 times faster than conventional power supplies
- Voltage accuracy: 0.1% + 20 mV
- Current accuracy: 0.15% + 60 mA
- Ripple and noise: 20 mV peak-to-peak, 3 mV rms
- Overvoltage, overcurrent, and overtemperature protection
- Quick disconnect connector
Applications
- Automated test equipment (ATE) systems for device power and fixture control
- Bench testing and troubleshooting applications
- General-purpose DC power requirements
Specifications
| Maximum Voltage | 20V |
| Maximum Current | 15A |
| Maximum Power | 300W |
| Channel/Port Count | 1 |
| Phases | 1 |
| Power Rating | 300 W |
| Output Voltage | 20 V |
| Output Current | 15 A |
| Series | N6700 Series |
