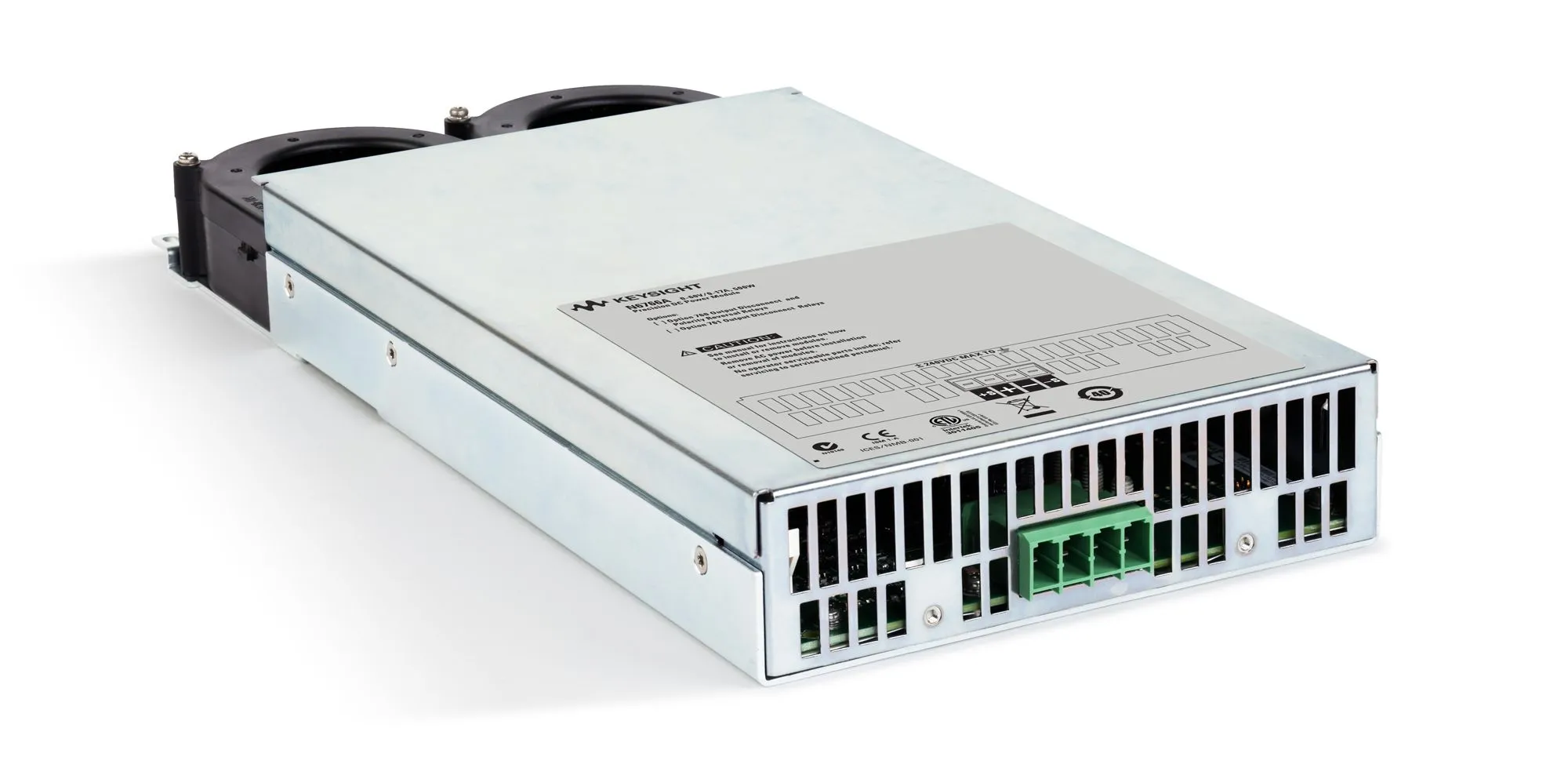

Keysight N6766A Precision DC Power Module

Overview

The Keysight N6766A is a 500W precision DC power module that delivers high voltage output with precise control and measurement capabilities. It provides low noise operation and enables simultaneous digitization of voltage and current with capture in an oscilloscope-like data buffer. The module features advanced precision specifications with 0.03% voltage accuracy and minimal ripple for demanding applications. This double-wide module integrates seamlessly into the N6700 Low-Profile Modular Power System for automated test equipment (ATE) or the N6705 DC Power Analyzer for benchtop testing. All mainframe models include GPIB, LAN, USB, and LXI compliance as standard.

Key Features

• Output voltage range 0 to 60V with 0.03% + 12 mV accuracy
• Output current range 0 to 17A with 0.075% + 4 mA accuracy
• Very low noise ripple: 6 mV peak-to-peak voltage, 1 mV RMS voltage, 4 mA RMS current
• Simultaneous voltage and current measurement and digitization
• Fast up and down programming with resistive loads
• Overvoltage, overcurrent, and overtemperature protection
• Quick disconnect connector for module installation
• Double-wide module format occupies 2 of 4 mainframe slots

Applications

• Automated Test Equipment (ATE) for high-voltage device characterization
• Precision power sourcing for sensitive measurement applications
• Design validation requiring ultra-low noise DC power
• Research and development in high-voltage, precision measurement systems
