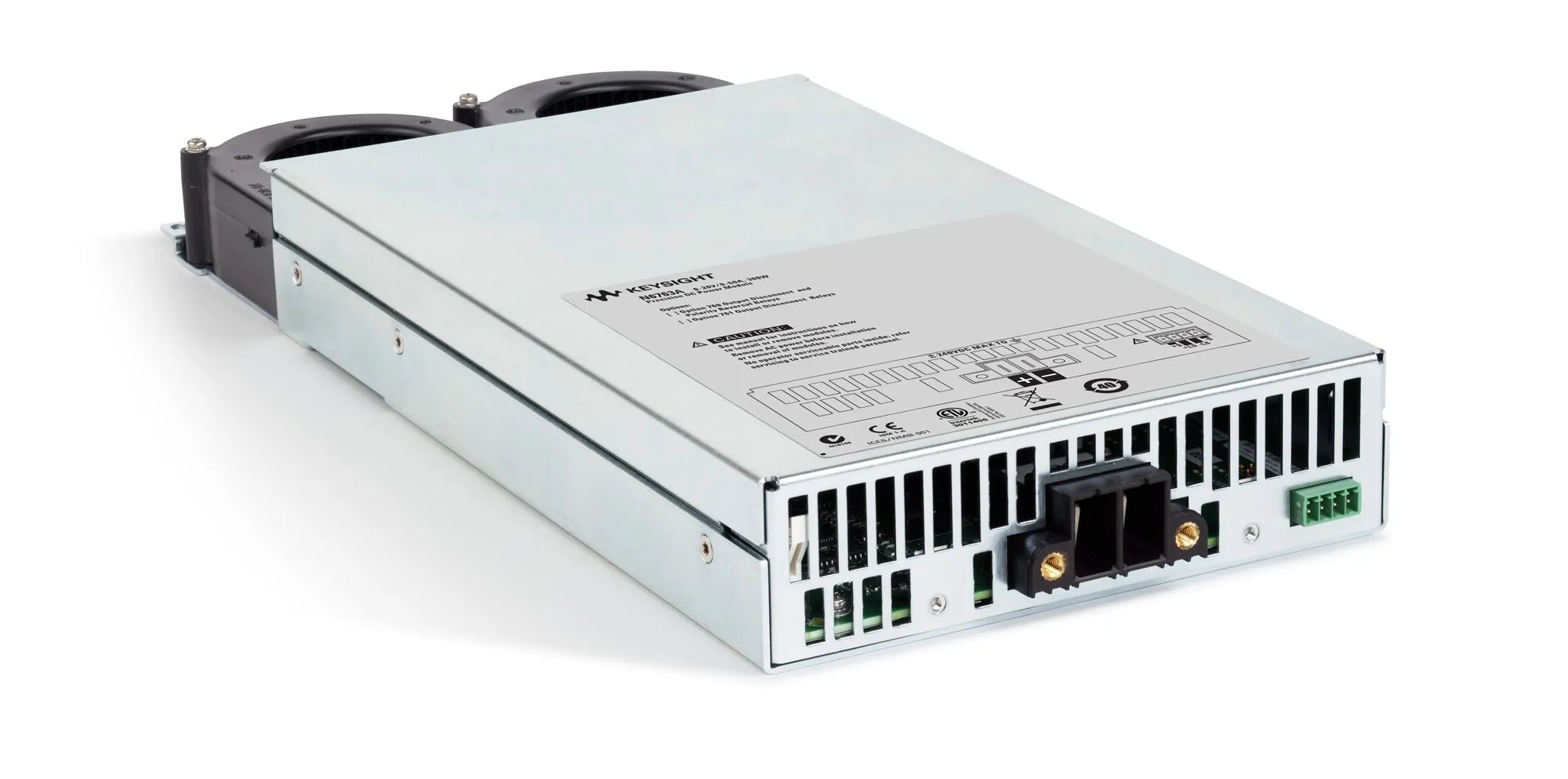

Keysight N6764A Precision DC Power Module
Request a quote
Keysight N6764A is a 300W precision DC power module with 0.06% voltage accuracy, low noise, and fast programming for ATE and bench test applications.
Product details
| Model | N6764A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6764A is a 300W precision DC power module that delivers low noise and precise control for milliampere and microampere measurements. It simultaneously digitizes voltage and current with oscilloscope-like data capture capabilities. The module is suitable for both automated test equipment (ATE) systems using the N6700 Low-Profile Modular Power System and bench testing with the N6705 DC Power Analyzer.
Key Features
- Programmable output voltage: 0 to 60V
- Output current: up to 20A
- Maximum power: 300W
- Voltage accuracy: 0.06% + 19 mV (50V output)
- Low ripple and noise: 4.5 mV peak-to-peak (50V output)
- Fast programming: typically 1.5 ms up and down with resistive load
- Overvoltage, overcurrent, and overtemperature protection
- Quick disconnect connector
- GPIB, LAN, USB, and LXI compliance
- Digitized voltage and current capture
Applications
- Automated test equipment (ATE) systems
- Bench power supply testing and analysis
- Precision power measurements
- Device characterization and testing
Specifications
| Maximum Voltage | 60V |
| Maximum Current | 20A |
| Maximum Power | 300W |
| Channel/Port Count | 1 |
| Power Rating | 500 W |
| Output Voltage | 20 V |
| Output Current | 50 A |
| Series | N6700 Series |
