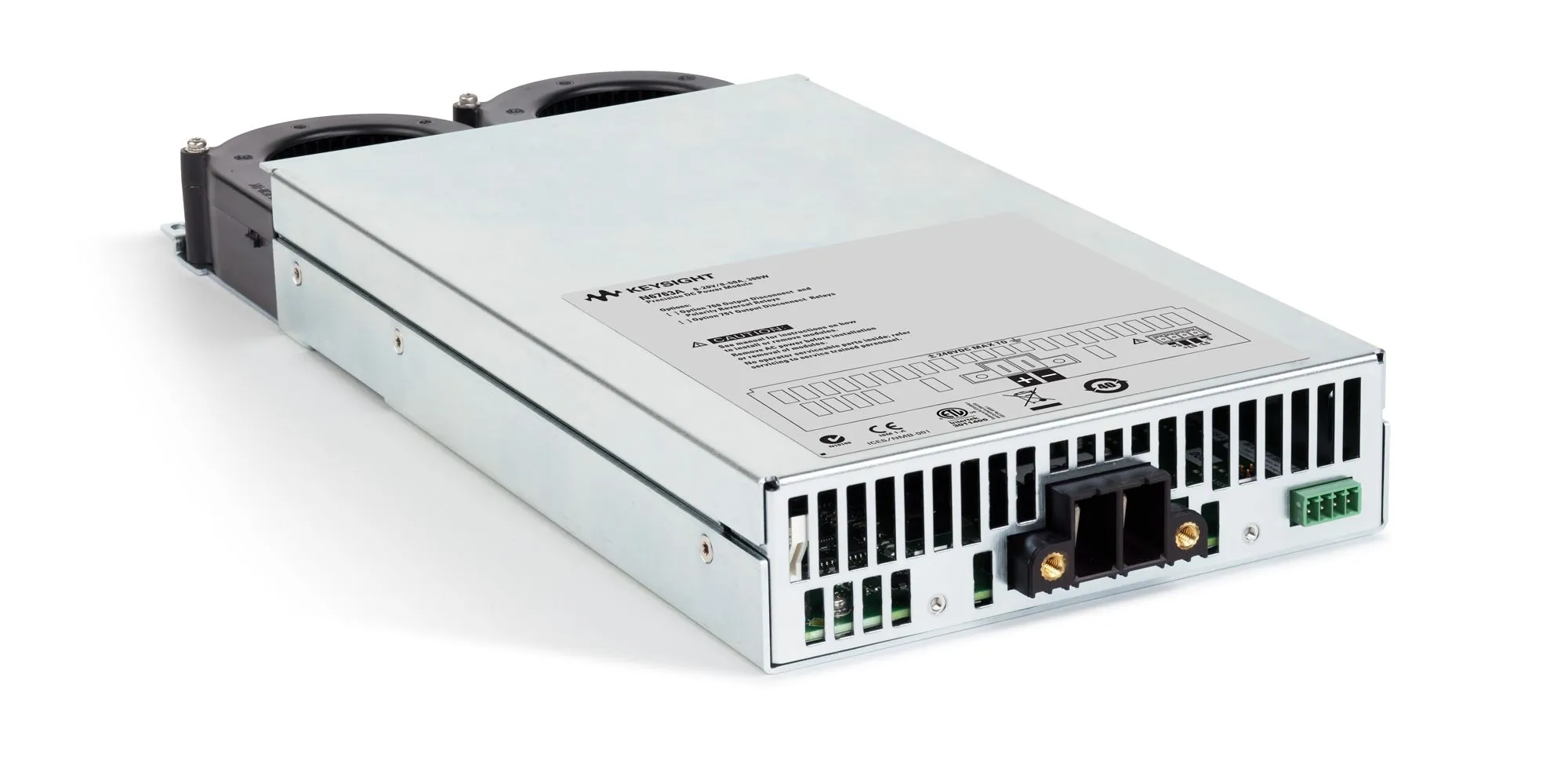

Keysight N6763A Precision DC Power Module
Keysight N6763A is a 300W precision DC power module with autoranging outputs, 0.06% accuracy, and low-noise simultaneous measurement capability.
Product details
| Model | N6763A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6763A is a 300W precision DC power module designed for high-performance testing with autoranging outputs and exceptional accuracy. It provides low-noise control and precise measurements with simultaneous voltage and current digitization capabilities, offering an oscilloscope-like data buffer for captured measurements.
This module is used in both the N6700 Low-Profile Modular Power System for ATE applications and the N6705 DC Power Analyzer for bench testing. With autoranging outputs providing greater flexibility to adapt to changing test requirements, the N6763A eliminates the need for external multimeters through built-in measurement accuracy of 0.06%.
Key Features
- 300W precision DC power with autoranging outputs (20V/50A)
- Voltage accuracy: 0.06% + 19 mV at 50V output
- Low ripple and noise: 4.5 mVpp at 50V output
- Fast up/down programming with resistive load (typically 1.5 ms)
- Simultaneous voltage and current digitization with oscilloscope-like buffering
- Overvoltage, overcurrent, and overtemperature protection
- GPIB, LAN, USB, and LXI compliance
- Quick disconnect connector for easy installation
Applications
- Automated test equipment (ATE) systems with N6700 mainframe
- Precision bench testing with N6705 DC Power Analyzer
- High-power precision device characterization and validation
- Systems requiring fast transient response and low noise
Specifications
| Maximum Voltage | 20V |
| Maximum Current | 50A |
| Maximum Power | 300W |
| Channel/Port Count | 1 |
| Phases | 1 |
| Power Rating | 300 W |
| Output Voltage | 30 V |
| Output Current | 50 A |
| Series | N6700 Series |
