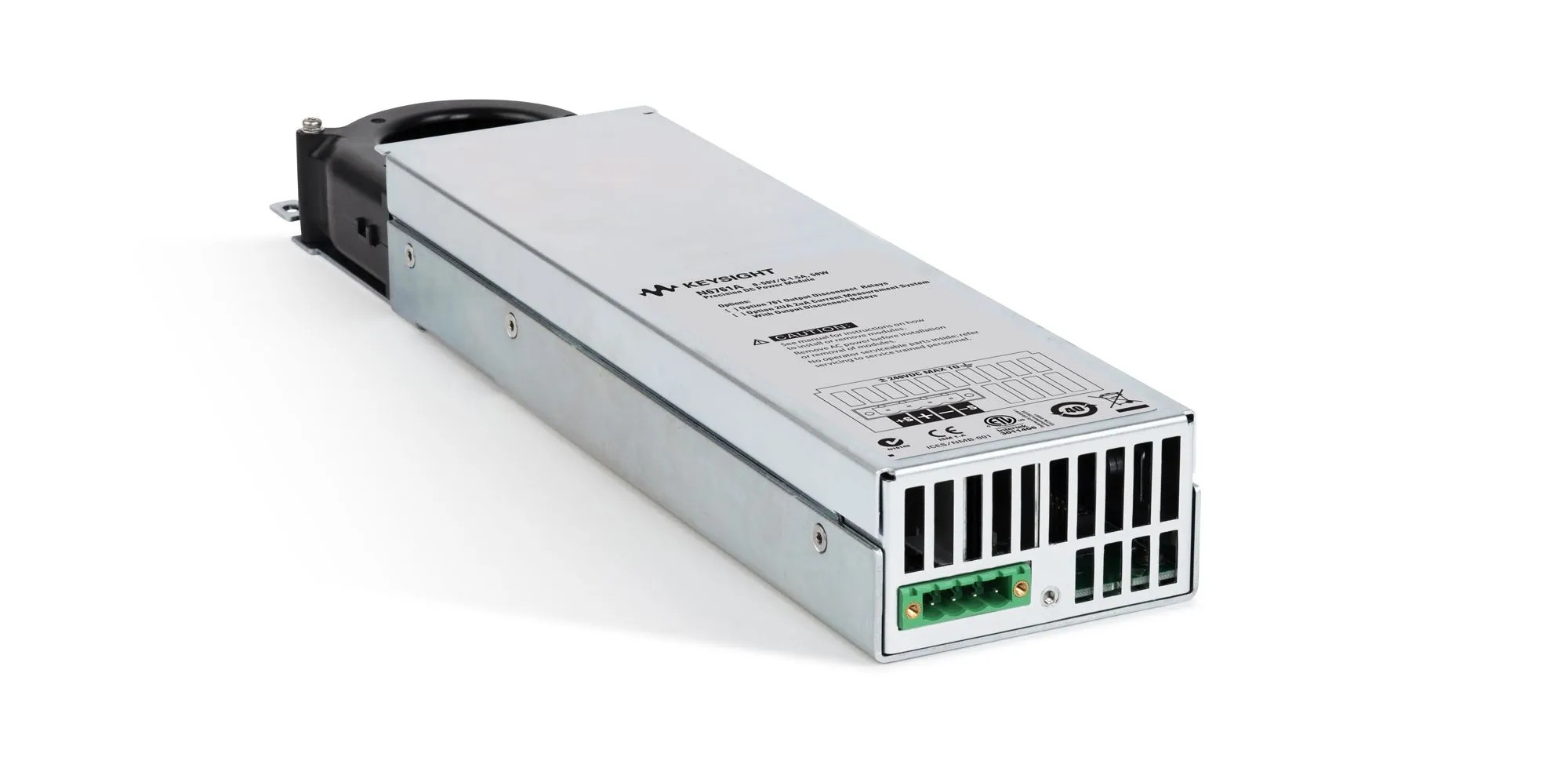

Keysight N6761A Precision DC Power Module
Request a quote
Keysight N6761A is a precision 50 W DC power module with 1.5 A / 50 V output and 0.016% voltage accuracy for sensitive testing applications.
Product details
| Model | N6761A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6761A is a precision 50 W DC power module offering exceptional accuracy and low noise for sensitive testing applications. It provides simultaneous voltage and current digitization with oscilloscope-like data buffering for transient capture. The module delivers precise control and measurement in the milliampere and microampere regions, with optional capability to measure leakage currents down to 1 μA.
Key Features
- Output voltage: 50 V maximum
- Output current: 1.5 A maximum (50 W power)
- Voltage programming accuracy: 0.016% + 6 mV (high range), 0.016% + 1.5 mV (≤5.5 V)
- Current accuracy: 0.04% + 200 µA (high range), 0.04% + 30 µA (≤100 mA)
- Voltage ripple and noise: 4.5 mV peak-to-peak, 350 µV rms
- Current ripple and noise: 2 mA rms
- Simultaneous voltage and current digitization with data buffer
- Optional 1 μA measurement capability (option 2UA)
- Quick disconnect connector for easy installation
- Programmable via GPIB, LAN, USB, and LXI interfaces
Applications
- Precision power supply for sensitive analog and digital circuits
- Leakage current and sleep-mode current measurements
- High-accuracy voltage and current characterization
- Integration with N6700 Series modular power systems
Specifications
| Maximum Voltage | 50V |
| Maximum Current | Not Applicable |
| Maximum Power | 1200W |
| Channel/Port Count | 4 |
| Power Rating | 50 W |
| Output Voltage | 50 V |
| Output Current | 1.5 A |
| Series | N6700 Series |
