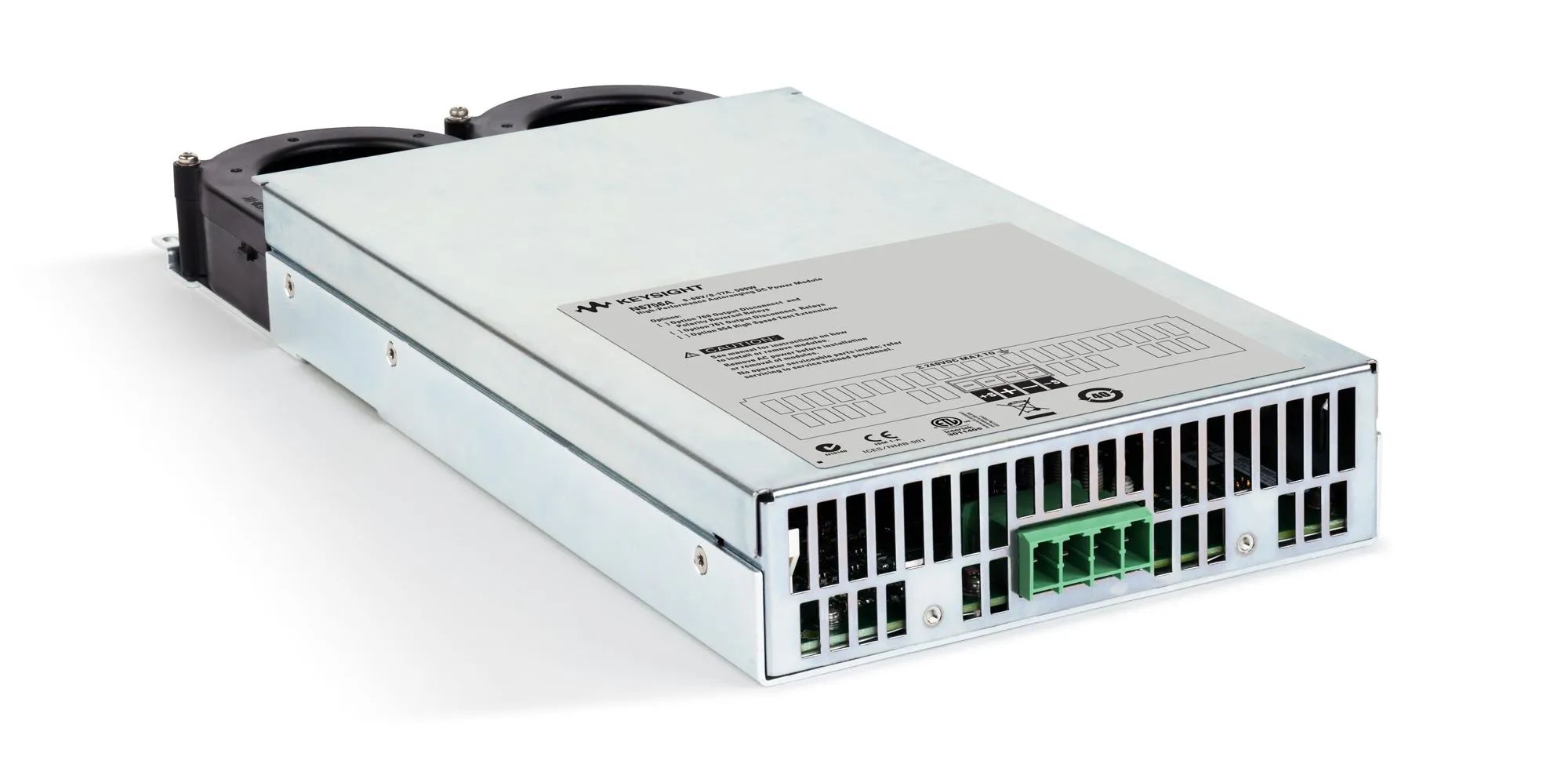

Keysight N6756A Autoranging DC Power Module
Request a quote
Keysight N6756A 500W autoranging DC power module with 60V/17A output, 0.06% voltage accuracy, 4.5mV ripple, and 1.5ms up-down programming for precise testing.
Product details
| Model | N6756A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6756A is a 500W high-performance autoranging DC power module designed for test optimization. It combines fast programming speeds (up to 50× faster than conventional supplies) with low noise output and exceptional measurement accuracy, eliminating the need for external multimeters.
Key Features
- Autoranging output: 0–60V, 0–17A (500W maximum)
- Voltage accuracy: 0.06% + 25 mV (at 50V output)
- Ripple and noise: 4.5 mVpp (at 50V output), 1 mV rms voltage
- Current rms: 4 mA
- Fast up and down-programming: typically 1.5 ms with resistive load
- Overvoltage, overcurrent, and overtemperature protection
- Quick disconnect connector
- GPIB, LAN, USB, and LXI compliance standard
- Optional high-speed test extension with oscilloscope-like digitizer
Applications
- Automated test equipment (ATE) systems in N6700 Low-Profile Modular Power System
- Bench testing and DC power analysis in N6705 DC Power Analyzer
- High-speed transient and pulse event testing
- Precision testing requiring high measurement accuracy
Specifications
| Maximum Voltage | 60V |
| Maximum Current | 17A |
| Maximum Power | 500W |
| Channel/Port Count | 1 |
| Phases | 1 |
| Power Rating | 500 W |
| Output Voltage | 60 V |
| Output Current | 17 A |
| Series | N6700 Series |
