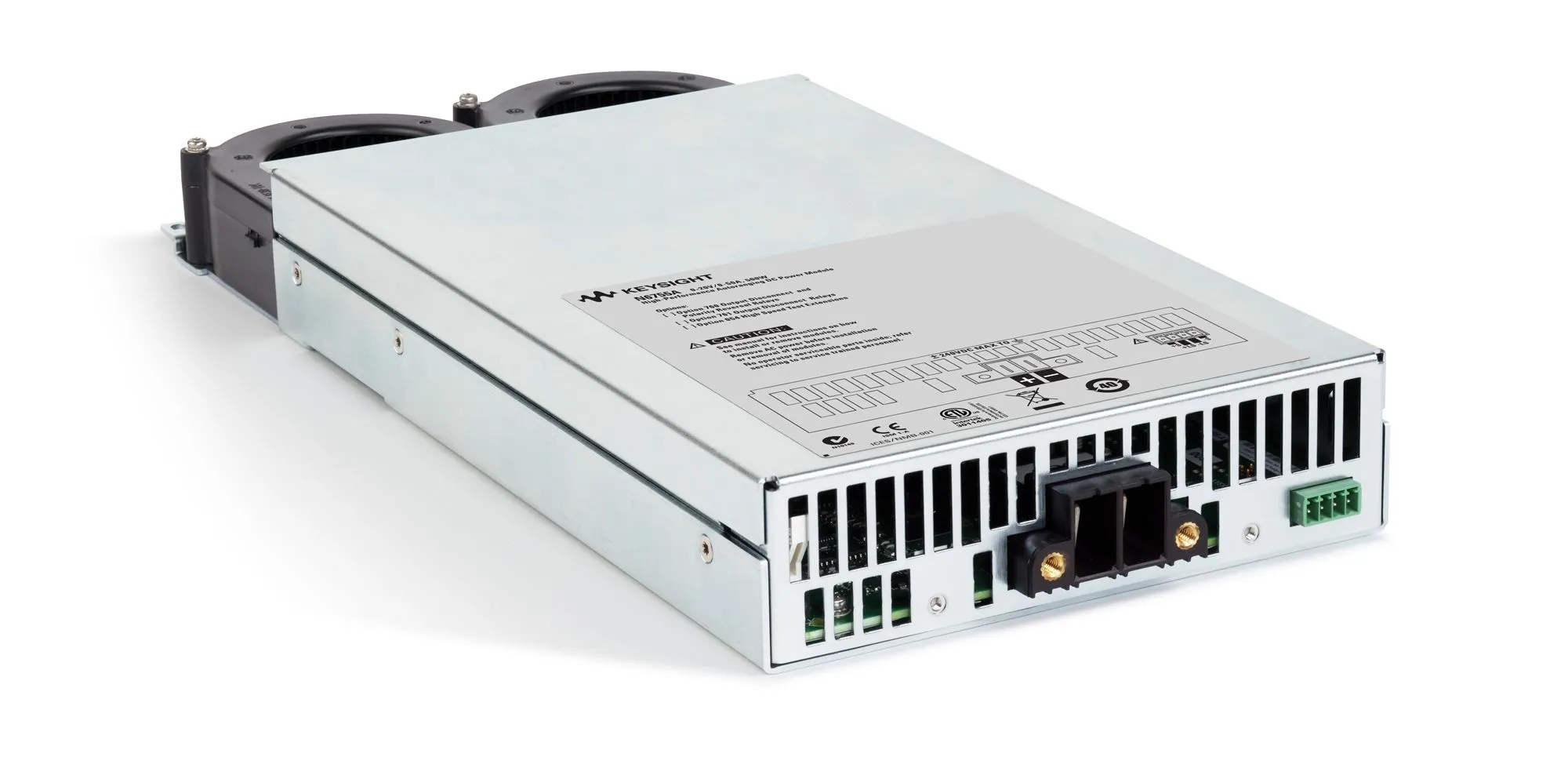

Keysight N6755A Autoranging DC Power Module
Request a quote
Keysight N6755A is a 500 W autoranging DC power module with 0.06% voltage accuracy, fast programming, and low noise output for precise testing.
Product details
| Model | N6755A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6755A is a 500 W high-performance, autoranging DC power module that provides superior flexibility with selectable output ranges. It delivers fast programming speeds up to 50 times faster than conventional power supplies, with exceptional accuracy and minimal noise. The module is ideal for automated test systems requiring high current delivery and precise voltage control.
Key Features
- Autoranging output: 0 to 20 V, 0 to 50 A, 500 W maximum
- Voltage programming accuracy: 0.06% + 10 mV (at 50 V output)
- Low ripple & noise: 4.5 mVpp (at 50 V output)
- Fast up and down programming typically 1.5 ms with resistive load
- Overvoltage, overcurrent, and overtemperature protection
- Quick disconnect connector included
- Occupies 2 of 4 mainframe slots
Applications
- Automated test equipment (ATE) in N6700 low-profile modular power systems
- Bench testing with N6705 DC Power Analyzer
- High-current device testing and characterization
- Precision voltage and current sourcing applications
Specifications
| Maximum Voltage | 20V |
| Maximum Current | 50A |
| Maximum Power | 500W |
| Channel/Port Count | 1 |
| Phases | 1 |
| Power Rating | 300 W |
| Output Voltage | 60 V |
| Output Current | 20 A |
| Series | N6700 Series |
