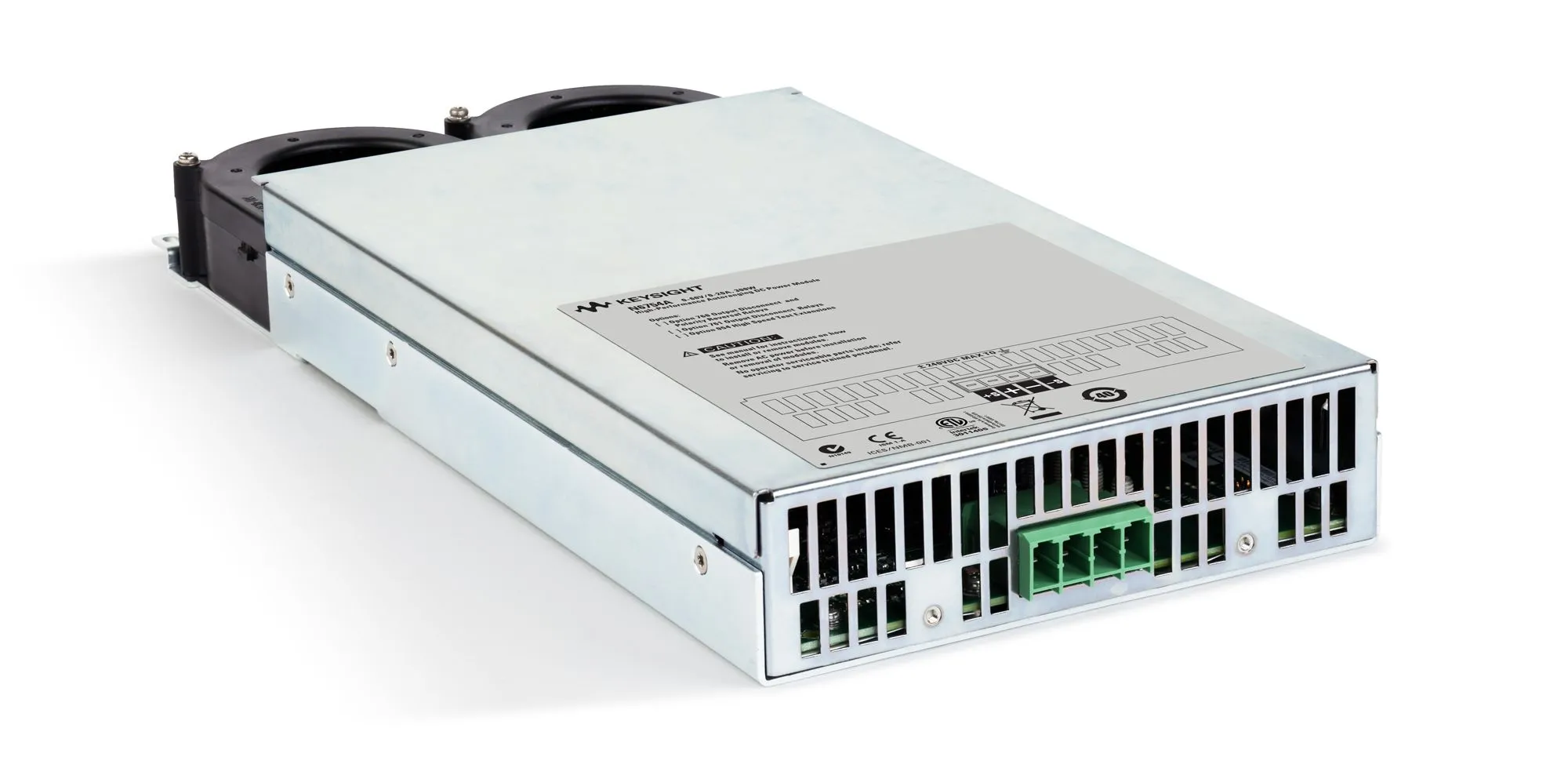

Keysight N6754A Autoranging DC Power Module
Request a quote
Keysight N6754A is a 300W autoranging DC power module with 60V/20A output, 0.06% voltage accuracy, and programming speeds 10-50× faster than conventional supplies.
Product details
| Model | N6754A |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6754A is a 300W high-performance autoranging DC power module designed for both ATE (Automated Test Equipment) systems and bench testing environments. With 0-60V / 0-20A output ratings and advanced autoranging capabilities, it provides flexibility to support changing test requirements while maintaining low noise and high measurement accuracy.
Key Features
- 300W autoranging DC power output
- Output: 0-60V / 0-20A
- Voltage accuracy: 0.06% + 25mV
- Ripple and noise: 6mV voltage peak-to-peak, 1mV rms, 4mA current rms
- Programming speed: 10-50× faster than conventional power supplies
- Overvoltage, overcurrent, and overtemperature protection
- Quick disconnect connector for easy module replacement
- Double-wide module format (occupies 2 of 4 mainframe slots)
Applications
- Automated Test Equipment (ATE) systems
- Bench test and measurement applications
- Device characterization and validation
- High-speed transient and pulse event testing (with optional high-speed test extension)
Specifications
| Maximum Voltage | 60V |
| Maximum Current | 20A |
| Maximum Power | 300W |
| Channel/Port Count | 1 |
| Phases | 1 |
| Power Rating | 300 W |
| Output Voltage | 60 V |
| Output Current | 20 A |
| Series | N6700 Series |
