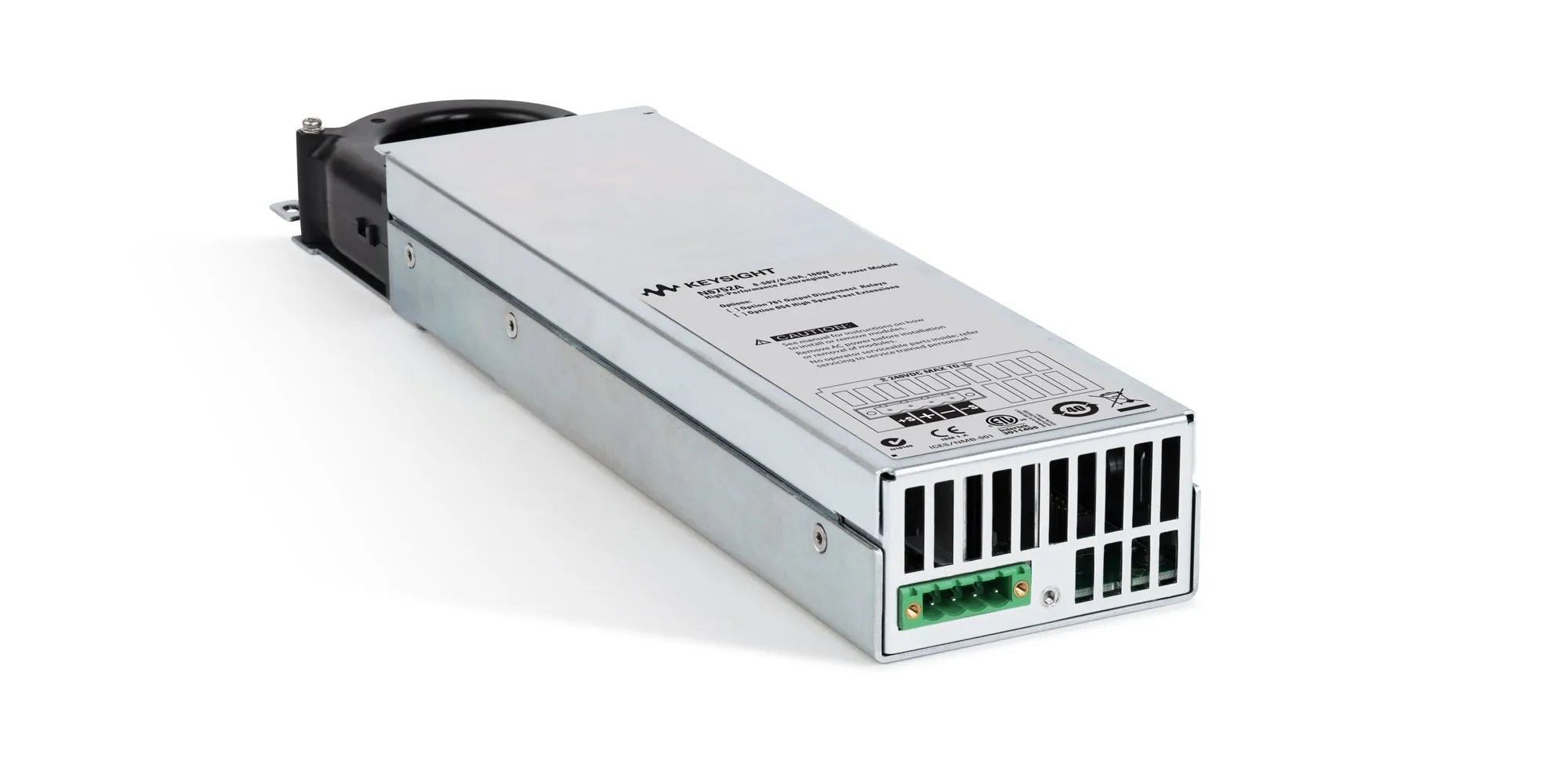

Keysight N6752A Autoranging DC Power Module

Overview

The Keysight N6752A is a 100 W high-performance autoranging DC power module delivering fast programming speeds (10-50 times faster than conventional power supplies), low noise output, and high measurement accuracy. Designed for both automated test equipment (ATE) and bench testing applications, it combines programmable voltage outputs up to 60 V with the flexibility of autoranging current delivery. The optional high-speed test extension provides an oscilloscope-like digitizer for accurate measurement of high-speed transient or pulse events.

Key Features

• Autoranging output: 0-50V, 0-10A, 100W
• Voltage programming accuracy: 0.06% + 19 mV
• Current measurement accuracy: 0.1% + 20 mA
• Ripple and noise: 4.5 mV peak-to-peak, 350 µV rms voltage; 2 mA rms current
• Fast up/down programming: typically 1.5 ms with resistive load
• Single-wide module: occupies 1 of 4 mainframe slots (four 50/100W modules per mainframe)
• Optional high-speed test extension with oscilloscope-like digitizer
• Overvoltage, overcurrent, and overtemperature protection
• Quick disconnect connector
• GPIB, LAN, USB, and LXI compliance standard

Applications

• Automated test equipment (ATE) systems via N6700 Low-Profile Modular Power System
• Bench testing and characterization via N6705 DC Power Analyzer
• Device-under-test transient response measurement
• High-speed pulse and transient event measurement with optional extensions
• Modular multi-module test configurations
