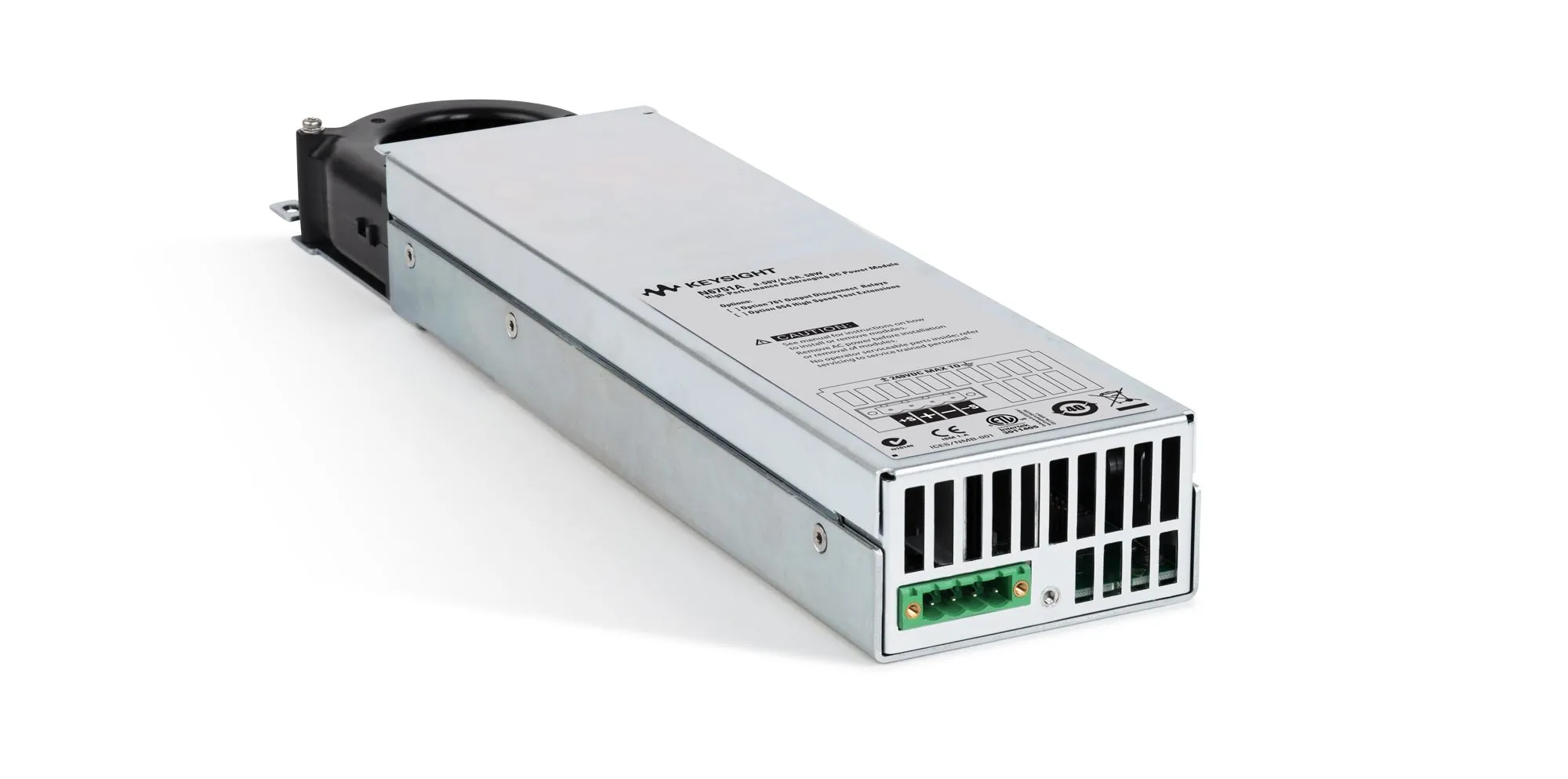

Keysight N6751A Autoranging DC Power Module

Overview

The Keysight N6751A is a 50W high-performance autoranging DC power module that delivers superior speed and accuracy for test optimization. This module provides low noise output, high measurement accuracy of 0.06%, and programming speeds up to 10 to 50 times faster than conventional programmable power supplies.

Autoranging outputs provide maximum flexibility to adapt to changing test requirements, delivering higher current at more voltages. The module integrates into both the compact N6700 Low-Profile Modular Power System for ATE applications and the N6705 DC Power Analyzer for bench testing. GPIB, LAN, USB, and LXI compliance are standard.

Key Features

• Output voltage: 0 to 60V with autoranging capability
• Output current: 0 to 5A
• Maximum power: 50W
• Voltage programming accuracy: 0.06% + 19mV at 50V output
• Current programming accuracy: 0.1% + 20mA
• Ultra-low ripple and noise: 4.5mV peak-to-peak (50V output)
• Voltage rms noise: 350µV
• Fast programming: up and down-programming typically 1.5ms with resistive load
• Quick disconnect connector included
• Overvoltage, overcurrent, and overtemperature protection

Applications

• Automated test equipment (ATE) systems
• Precision bench testing and development
• Device under test (DUT) power supply
• High-speed transient and pulse event testing
• Applications requiring low noise and high accuracy

Optional Accessories

• Option 054: High-speed test extension with oscilloscope-like digitizer for transient measurements
