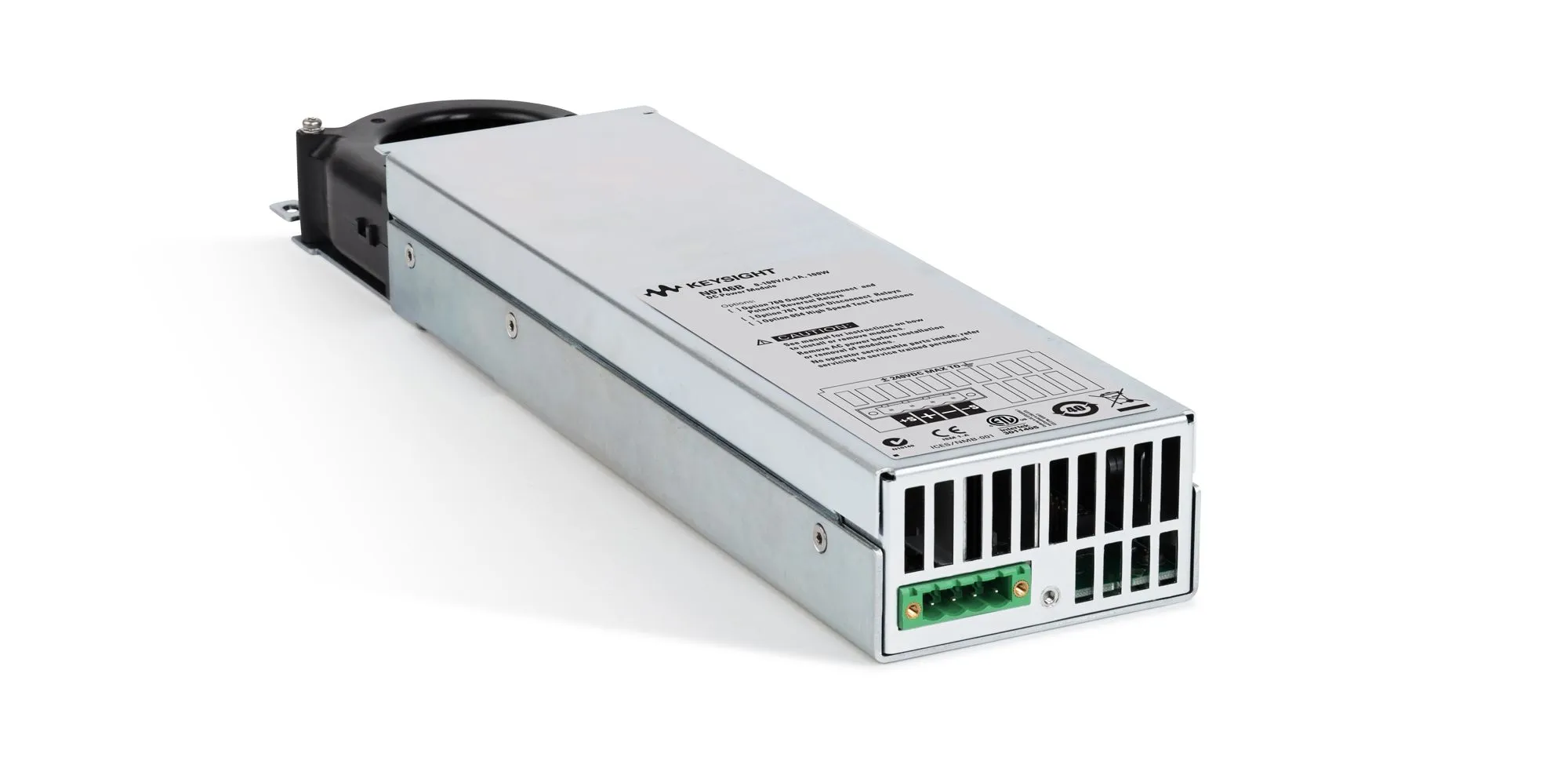

Keysight N6746B DC Power Module
Request a quote
Keysight N6746B is a 100W basic DC power module with 0 to 100V output and 0.1% accuracy for N6700 series modular power systems.
Product details
| Model | N6746B |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6746B is a basic performance DC power module for the N6700 Series modular power system. It provides stable output, device protection, and accurate measurements with a single output range. The module supports both two-wire local sense and four-wire remote sense for improved voltage regulation, and features a quick disconnect connector for easy installation.
Key Features
- Stable output with overvoltage, overcurrent, and overtemperature protection
- Two-wire local sense or four-wire remote sense for improved regulation
- Quick disconnect connector for easy module swapping
- Single-width module design allows up to four per mainframe
- Fast up and down programming with resistive load (typically 20 ms)
- Integrated measurement capabilities
Applications
- Automated test equipment (ATE) systems
- Device testing and characterization
- Bench testing and design validation
- Research and laboratory applications
Specifications
| Maximum Voltage | 100V |
| Maximum Current | 1A |
| Maximum Power | 100W |
| Channel/Port Count | 1 |
| Power Rating | 100 W |
| Output Voltage | 100 V |
| Output Current | 10 A |
| Series | N6700 Series |
