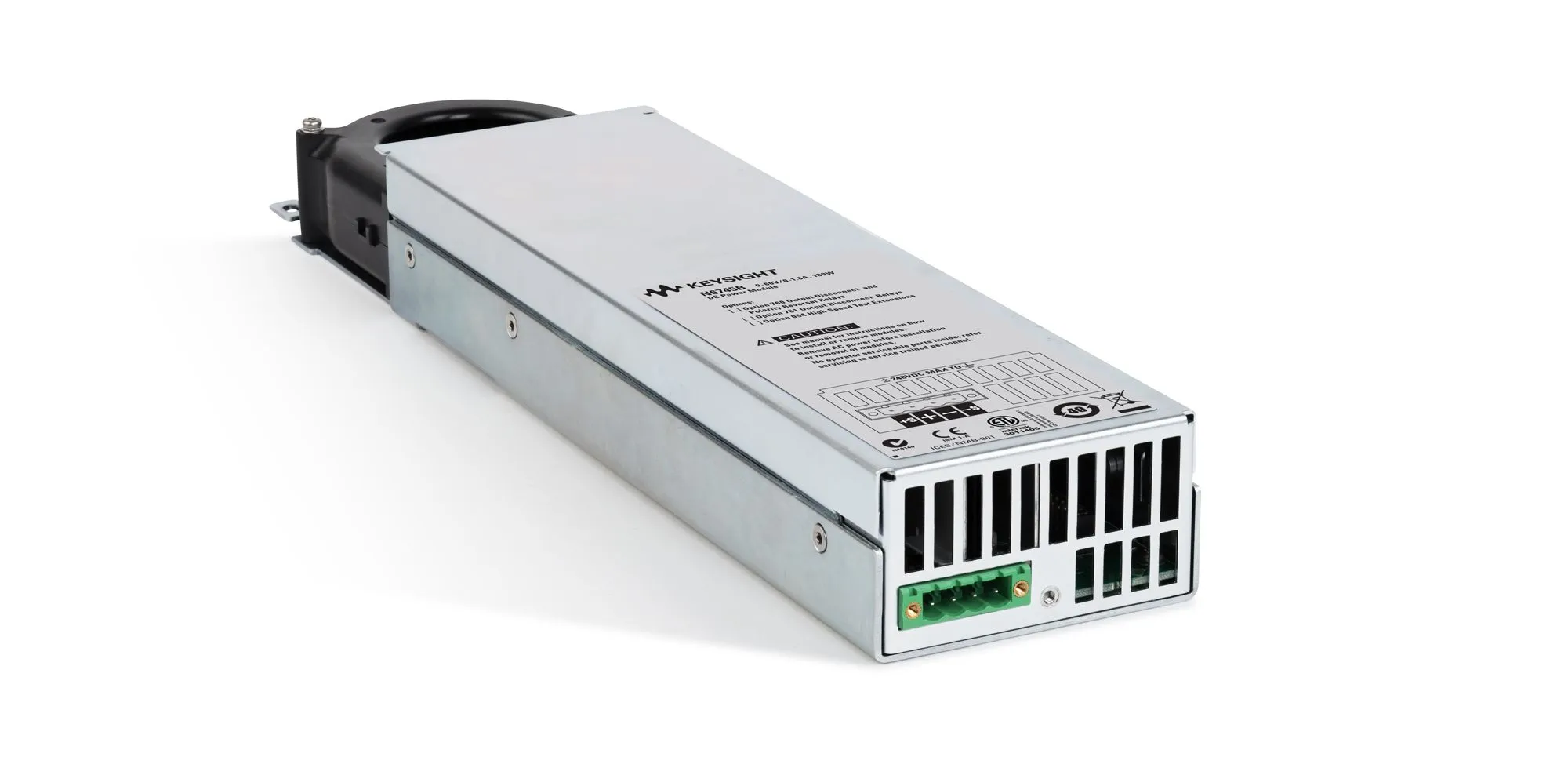

Keysight N6745B DC Power Module
Request a quote
Keysight N6745B is a 60V, 1.6A DC power module with 100W output power, 0.1% voltage accuracy, and quick disconnect connector for modular systems.
Product details
| Model | N6745B |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6745B is a basic performance DC power module that provides stable output, device protection, and accurate measurements. It is designed for use in the N6700 Low-Profile Modular Power System for ATE applications or the N6705 DC Power Analyzer for bench testing. The module features single-range programming from 0V and 0A to its maximum voltage and current ratings.
Key Features
- Programmable output voltage: 0 to 60V
- Output current: 1.6A maximum
- Output power: 100W
- Voltage accuracy: 0.1% + 19 mV (at 5V output)
- Ripple and noise: 10 mV (at 5V output)
- Up and down-programming with resistive load: typically 20 ms
- Overvoltage, overcurrent, and overtemperature protection
- Two-wire local sense or four-wire remote sense
- Quick disconnect connector
- Single-width module allows four modules per mainframe
Applications
- ATE system power supply
- Bench testing
- Device testing and characterization
Specifications
| Maximum Voltage | 60V |
| Maximum Current | 1.7A |
| Maximum Power | 100W |
| Channel/Port Count | 1 |
| Power Rating | 100 W |
| Output Voltage | 60 V |
| Output Current | 1.6 A |
| Series | N6700 Series |
