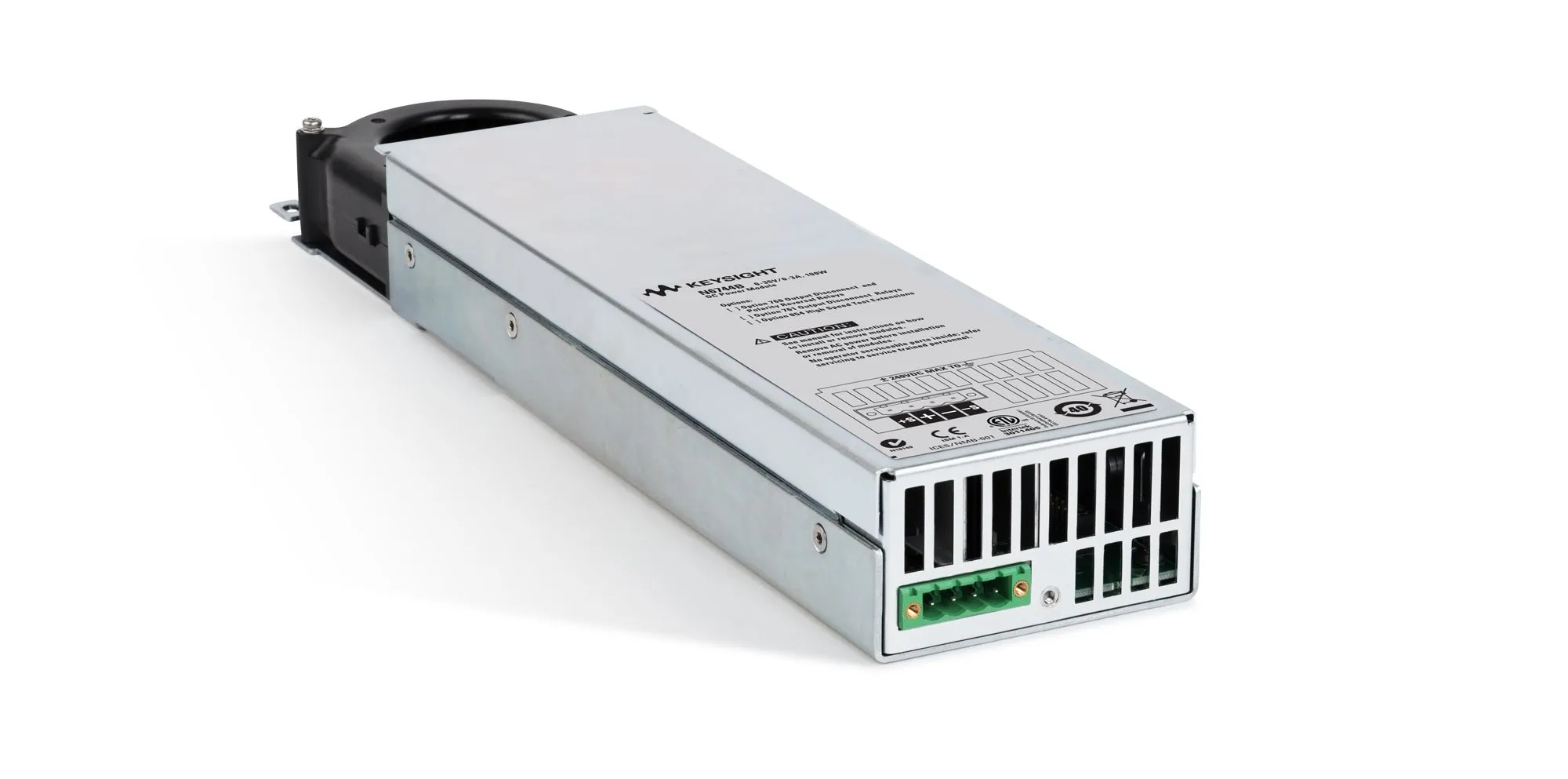

Keysight N6744B DC Power Module
Request a quote
Keysight N6744B is a 105W programmable DC power module with 0–35V output, 3A current rating, and single-slot design for the N6700 modular power system.
Product details
| Model | N6744B |
| Manufacturer | Keysight |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6744B is a 105W basic DC power module for the N6700 Low-Profile Modular Power System and N6705 DC Power Analyzer. This single-slot module delivers stable output, device protection, and accurate measurements suitable for powering device under test (DUT) or providing power for ATE system resources such as fixture control. It supports two-wire local sense or four-wire remote sense for improved regulation.
Key Features
- Output voltage: 0–35V
- Output current: 0–3A
- 105W maximum power
- Voltage accuracy: 0.1% + 35 mV
- Current measurement accuracy: 0.15% + 20 mA
- Low voltage ripple: 5 mV rms (constant voltage mode)
- Fast up/down programming: typically 20 ms with resistive load
- Two-wire local sense or four-wire remote sense capability
- Quick disconnect connector
- Overvoltage, overcurrent, and overtemperature protection
- Single-slot design allows four modules per mainframe
- GPIB, LAN, USB, and LXI standard connectivity
Applications
- Device under test (DUT) power supply in ATE systems
- Bench testing and circuit validation
- Power supply for test fixtures and system resources
Specifications
| Maximum Voltage | 35V |
| Maximum Current | 3A |
| Maximum Power | 100W |
| Channel/Port Count | 1 |
| Phases | 1 |
| Power Rating | 105 W |
| Output Voltage | 35 V |
| Output Current | 3 A |
| Series | N6700 Series |
